Details
Specifications
- Weight:45.000kg
- Condition:New
- size:22X6X17
- color:gray
- application:scissor lift
- material :rubber
- Max-load:16870kg@10km/h
- Weight:48 Kgs
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Delivery Port:Any Port In China
JLG E400A boom lift parts number JLG 1001110774 22x6x17.75 non marking wheel 22x6x17 3/4
Product details:

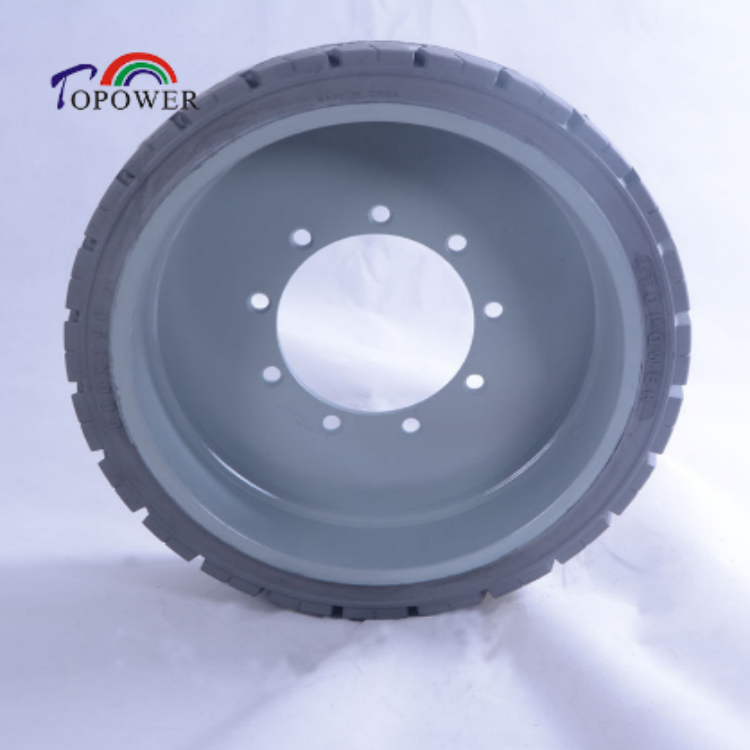

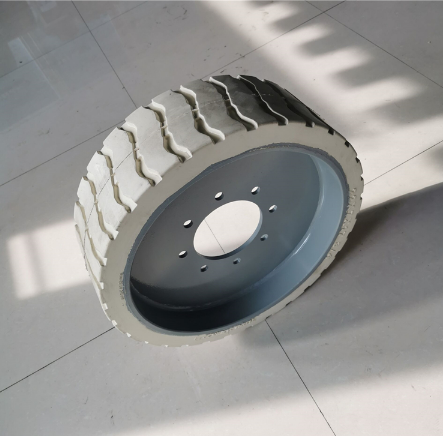

Non marking wheel 22X6X17 3/4
Parts Number: JLG 1001110774
Suitable for scissor lift: JLG E400A
Rubber Hardness: 68 shore A
Weight: 45 kgs
Package: Pallet
| MOULD ON SOLID TYRE/LIFT PLATFORM TYRE | MAX.LOAD(kg) | |||||||||||
| 10km/h | Other Industrial 16km/h |
|||||||||||
| Inch | Pattern | MM | LOAD | ROTATION | ||||||||
| 22x6x16 | TP328 | 559x152x406.4 | 2265 | 2015 | 1740 | |||||||
| 22x6x17 3/4 | TP328 | 559x152x450.8 | 2185 | 1945 | 1680 | |||||||
| 22x7x17 3/4 | TP305/TP321 | 559x178x450.8 | 4220 | 3715 | 3250 | |||||||
| 4.00-8 | TP303 | 408X115 | 1055 | 845 | 730 | |||||||
| 15x5 | TP305 | 379x127 | 1275 | 1135 | 980 | |||||||
| 15x5 | TP321/TP328 | 381x127 | 1290 | 1150 | 995 | |||||||
| 14x4.5 | TP303/TP328 | 355x115 | 1085 | 965 | 835 | |||||||
| 12x4.5 | TP328 | 306x115x237 | 970 | 865 | 745 | |||||||
| 12.5x4.25 | TP328 | 317x108x246 | 1100 | 990 | 855 | |||||||
| 16x5 | TP303/TP329/TP328 | 406X125 | 1400 | 1020 | 1080 | |||||||
| 16x5 | TP328 | 406X127 | 1400 | 1020 | 1080 | |||||||
| 16x6 | TP328 | 406x152 | 1680 | 1220 | 1295 | |||||||
| 15 3/4x4 3/4 | TP321 | 400x120x298 | 1350 | 985 | 1040 | |||||||
| 12 3/8 x4 | TP321 | 310x100x250 | 850 | 620 | 655 | |||||||
| 12x3x10 | TP322 | 305/76-254 | 650 | 480 | 500 | |||||||
| 12x4x10 | TP322/TP328 | 305/100-255 | 820 | 730 | 630 | |||||||
| 12x4 1/8x10 | TP305 | 305x105 | 835 | 745 | 645 | |||||||
| 12 3/4x4 | TP329 | 323x100 | 850 | 750 | 675 | |||||||
| 12x4 (200X8) | TP323/TP305 | 305X100 | 550 | 440 | 400 | |||||||
| 12x4 (200X8) | TP321/TP312 | 305X100 | 550 | 440 | 400 | |||||||
| 10x3 | TP303 | 254X76 | 540 | 485 | 420 | |||||||
| 230x80 | TP321/TP330 | 230x80 | 400 | 345 | 280 | |||||||
| 230x100 | TP321 | 230x100 | 625 | 550 | 490 | |||||||
| 250x80 | TP330 | 250x80 | 440 | 385 | 320 | |||||||
| 250x100 | TP303 | 250x100 | 660 | 560 | 515 | |||||||
| 600x190 | TP303/TP328 | 600x190 | 3360 | 3000 | 2705 | |||||||
| 25x7 | TP326 | 640x170x560 | 2525 | 2250 | 1905 | |||||||
| -- | TP310 | 720x195 | 3105 | 2390 | 2390 | |||||||
| 31x5x7 | TP308B | 3225 | 2358 | 2485 | ||||||||
| 31x6x10 | TP308B | (Instead 10-16.5) | 4230 | 3080 | 3260 | |||||||
| 33x6x11 | TP308B | (Instead 12-16.5) | 5060 | 3700 | 3900 | |||||||
| 36X7X11 | TP308B | (Instead 14-17.5) | 5650 | 4450 | 4650 | |||||||
