XCMG 2 ton small hydraulic marine crane for sale
Summary
- Certification:CCS
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:6.5m
- Max. Lifting Load:2 ton
- Application:marine crane
Specifications
- Weight:525.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

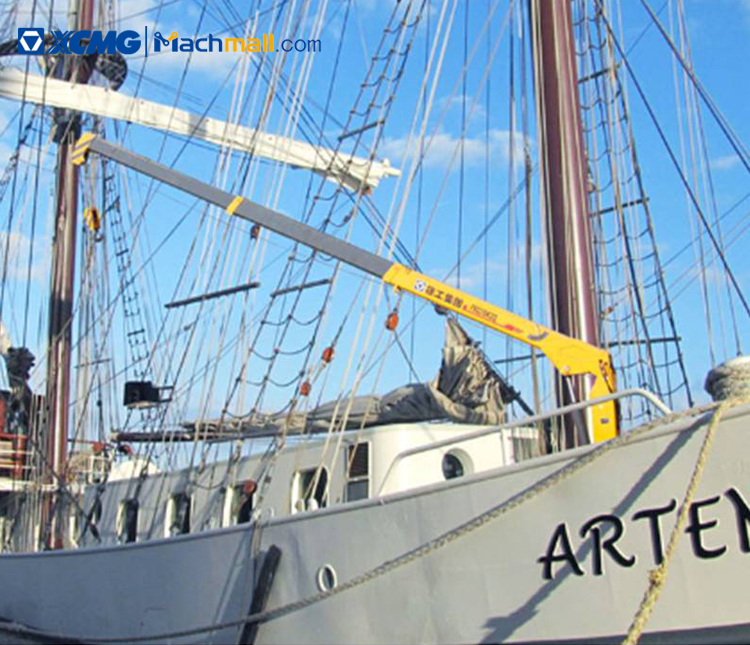

XCMG 2 ton small hydraulic marine crane .
1, Outer surface treatment of 2 ton small hydraulic marine crane
Due to the long use of the 2 ton small hydraulic marine crane in the wet salt fog environment, the requirement for surface corrosion treatment is stricter than other types of cranes.
2, rotary torque, able to withstand comprehensive heeling Angle of 5.38 ° (standard sea conditions), and even reached 8.96 °, progresso wind scale level 6.
3, The internal oil cylinder is retractable, the performance is more reliable, and the embalming performance is better.
4, The whole system of the crane is sealed to prevent the influence of damp environment, and the internal critical parts are well protected and the purpose of corrosion protection is achieved.
5, All shaft parts are plated with chrome
Three layer structure of outer surface spray paint are: epoxy zinc-rich primer, cloud iron paint, polyurethane acrylic paint, the whole machine commissioning after spraying polyurethane acrylic paint, factory um film thickness of 210-210.
6, Restricted by production and processing conditions, structure of galvanized short of the expected target, so no longer use galvanized methods for anticorrosion treatment, but with the spraying process to ensure that.
|
Maximum Lifting capacity |
2000kg |
|
Maximum Lifting height |
6.5m |
|
Maximum Lifting momen |
300KN |
|
Power |
5.5KW |
|
Maximum flow of hydraulic system |
20L/MIN |
