Summary
- Maximum Digging Depth:6680mm
- Maximum Digging Height:9620mm
- Bucket capacity:1.0-1.2(1.14)m3
- Operating Weight:21ton
- Model Number:XE225DK
- Brand Name:XCMG
- Place of Origin:XUZHOU
Specifications
- Weight:21900.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

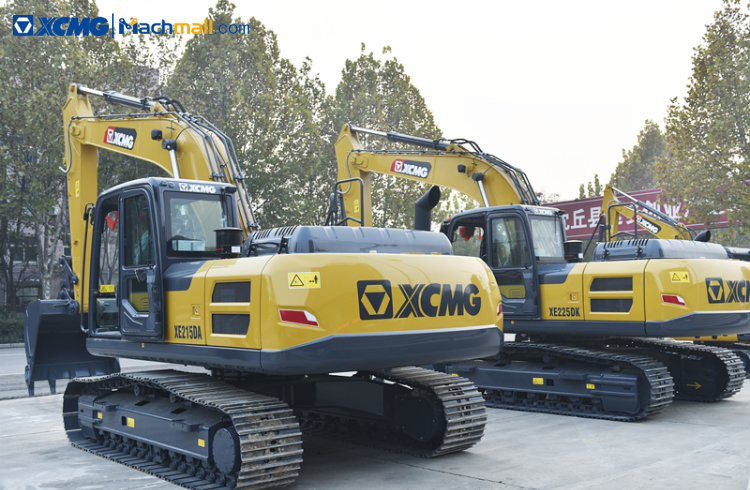

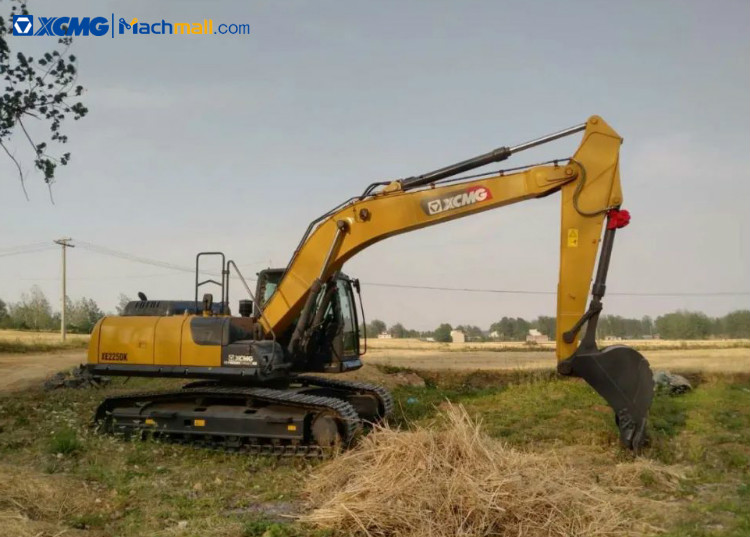

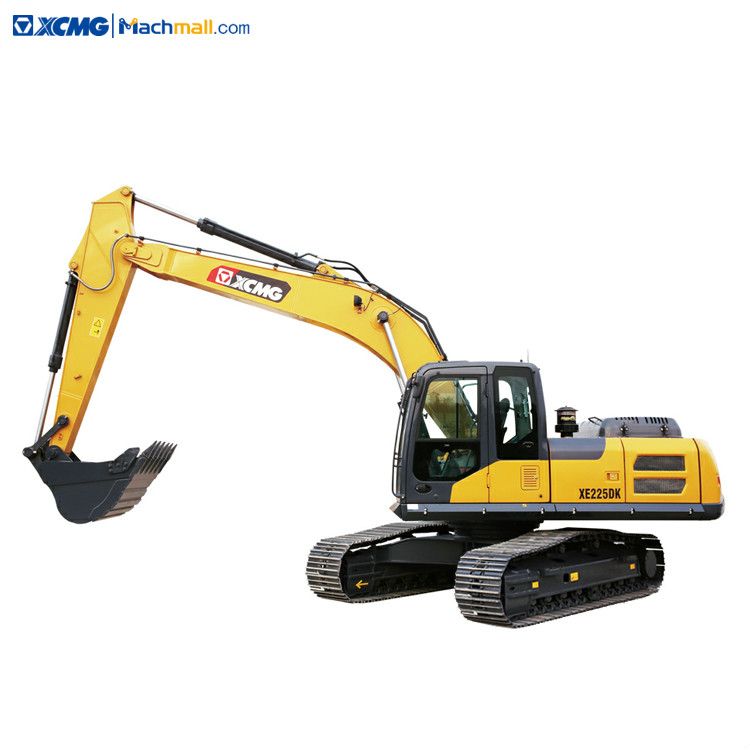

XCMG 22 ton hydraulic excavator machine with excavator accessories.

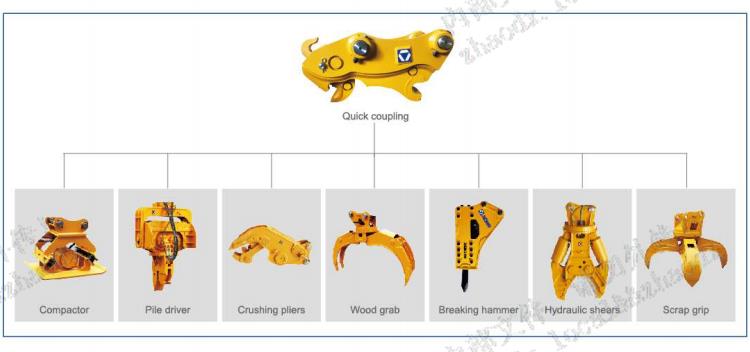

XCMG excavator machine XE225DK adopts multi-function machine control system, one key to choose more than 10 kinds of machine such as crushing hammer, hydraulic shear, easy to achieve a multi-purpose machine.

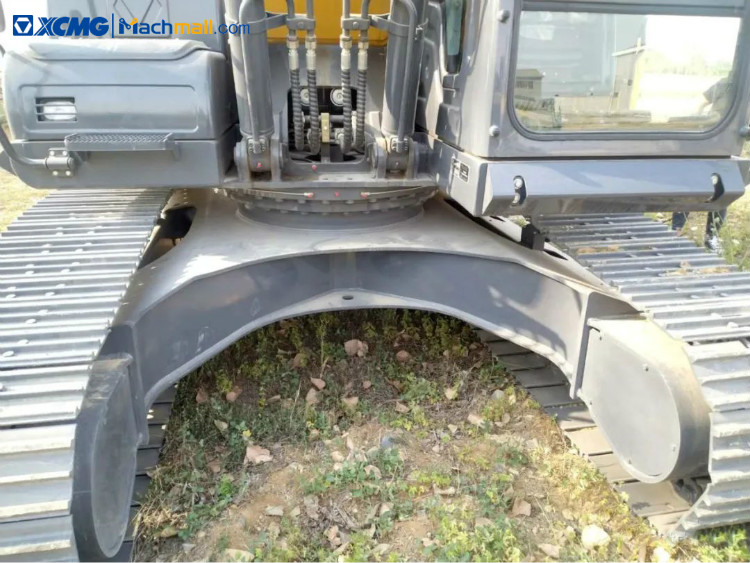

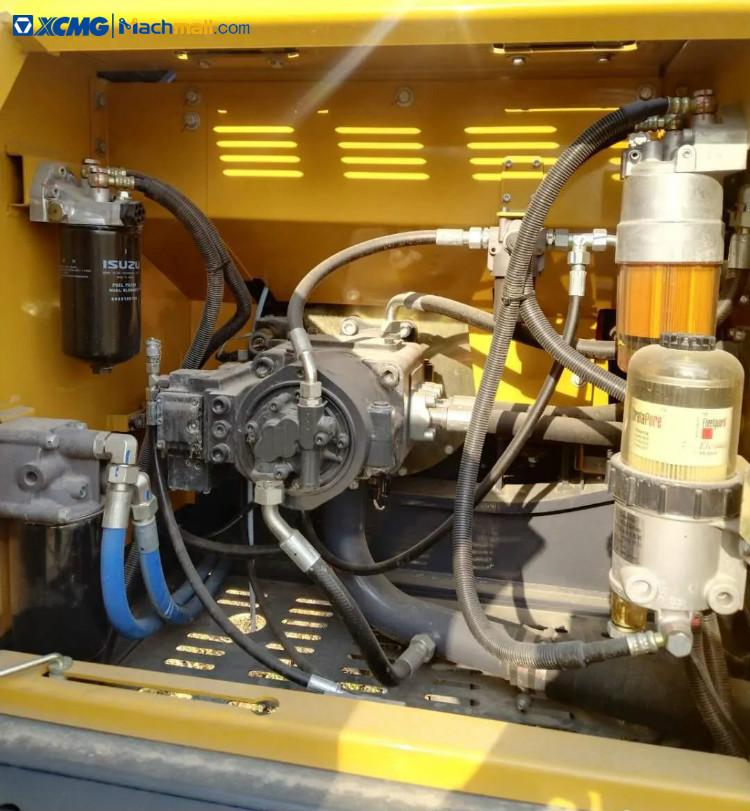

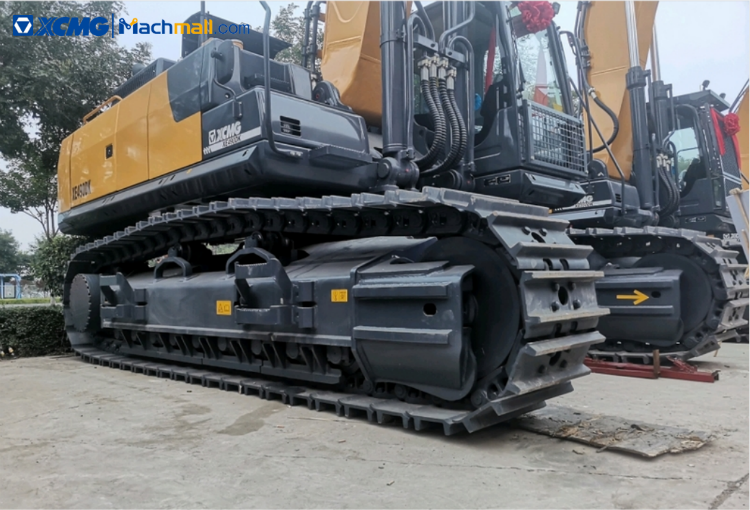

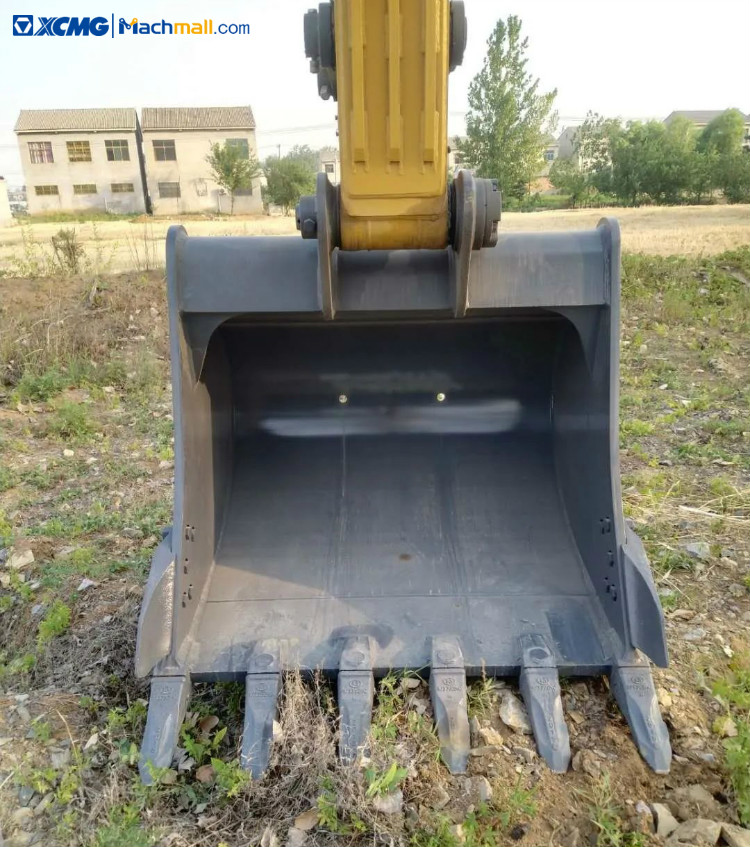

XCMG 22 ton hydraulic excavator machine XE225DK adopts a high-power, large-displacement and low-noise engine, a high-pressure low loss hydraulic system, an optimized design of the working mechanism enclosure structure and a standard reinforced digging bucket largest in capacity among its peers, able to greatly improve its reliability, durability and adaptability to various working conditions; its reinforced chassis system can have the complete excavator achieve stronger adaptability to mining conditions and a longer service life.

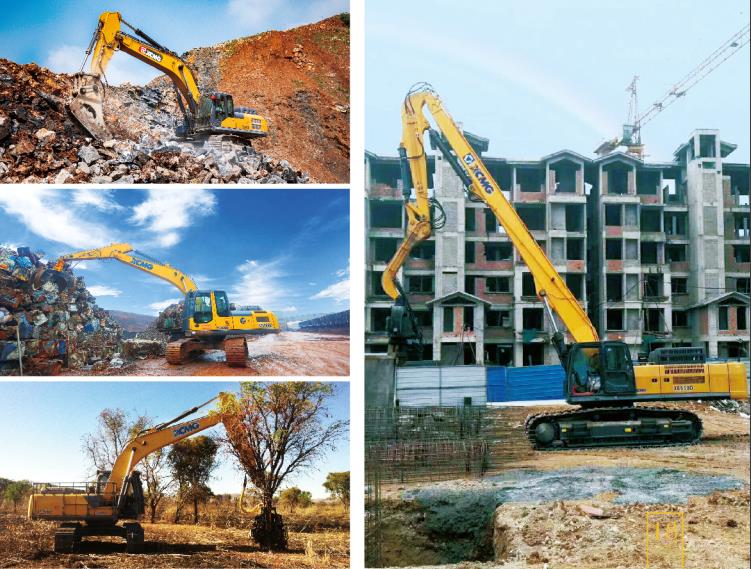

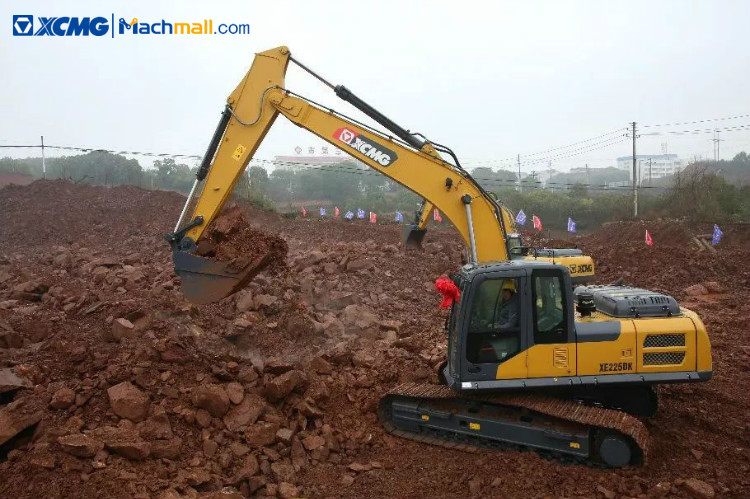

XE225DK excavator machine is mainly applicable to municipal construction, highway bridges, housing construction, road engineering, construction of water conservancy works, port construction, mines, and other earthwork construction at the advantage of sufficient flexibility, good controllability, low fuel consumption, high construction efficiency, powerful digging strength, comfortable driving environment, wide range of application and other outstanding characteristics.
|
Model |
|
Unit |
XE225DK |
|
Operating weight |
|
Kg |
21900 |
|
Bucket capacity |
|
m³ |
1.0-1.2(1.14) |
|

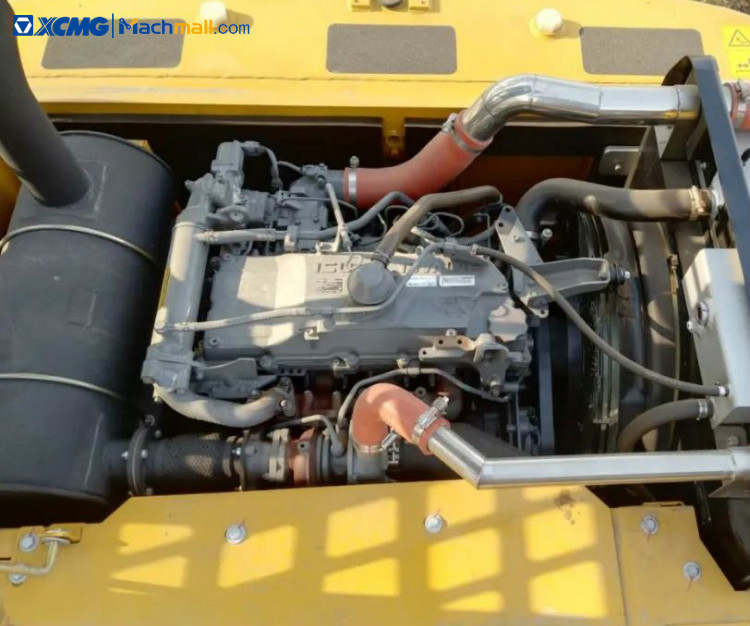

Engine |
Model |
/ |
4HK1X |
|
|
No. of cylinders |
/ |
4 |
|
|
Output power |
kw/rpm |
140/2000 |
|
|
Maximum torque/speed |
N.m/rpm |
650/1500 |
|
|
Displacement |
L |
5.3 |
|
Main performance |
Travel speed |
km/h |
5.3/3.0 |
|
|
Swing speed |
r/min |
11.8 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
47.2 |
|
|
Bucket digging force |
kN |
149 |
|
|
Arm digging force |
kN |
111 |
|
|
Maximum traction |
kN |
184 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
2×225 |
|
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Rotary system pressure |
MPa |
27.5 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
Oil Capacity |
Fuel tank capacity |
L |
400 |
|
|
Hydraulic tank capacity |
L |
220 |
|
|
Engine oil capacity |
L |
19.5 |
|
Appearance size |
A Overall length |
mm |
9625 |
|
|
B Overall width |
mm |
2990 |
|
|
C Overall height |
mm |
3100 |
|
|
D Width of platform |
mm |
2830 |
|
|
E Track length |
mm |
4255 |
|
|
F Overall width of chassis |
mm |
2990 |
|
|
G Track width |
mm |
600 |
|
|
H Length to center of rollers |
mm |
3462 |
|
|
I Track gauge |
mm |
2390 |
|
|
J Counterweight clearance |
mm |
1050 |
|
|
K Min. ground clearance |
mm |
486 |
|
|
L Min. tail swing radius |
mm |
2890 |
|
|
M Track height |
mm |
942 |
|
Working scope |
A Max. digging height |
mm |
9620 |
|
|
B Max. dumping height |
mm |
6780 |
|
|
C Max. digging depth |
mm |
6680 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6500 |
|
|
E Max. vertical wall digging depth |
mm |
5715 |
|
|
F Max. digging radius |
mm |
9940 |
|
|
G Min. swing radius |
mm |
3530 |
|
Standard configuration |
Length of boom |
mm |
5680 |
|
|
Length of arm |
mm |
2910 |
|
|
Bucket capacity |
m³ |
1.14 |
|
Optional configuration |
Length of boom |
m³ |
/ |
|
|
Length of arm |
m³ |
2400 |
|
|
Bucket capacity |
m³ |
1.2/1.3 Earth Working bucket |
|
|
|
|
0.93/1.0 Strengthened bucket |
|
|
|
|
0.9/1.0 Rock bucket |
