Summary
- Weight:9900kg
- Overall Dimension:6260*2300*2400mm
- Table Size:1830x760x1150mm
- Max Lifting Height:20.63m
- Rated Loading Capacity:256 kg (Without limit)/ 350 kg (With limit)
- Model Number:XGA20K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:9900.000kg
- Condition:New
- Moving Type:Other
- Wheelbase:2500mm
- Length (Under stowed status or during operation):8520mm
- Length (During transport, with jib folded down):6260mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

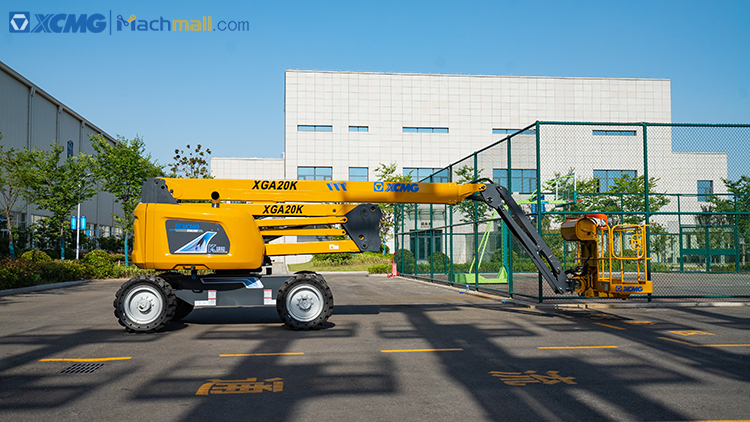

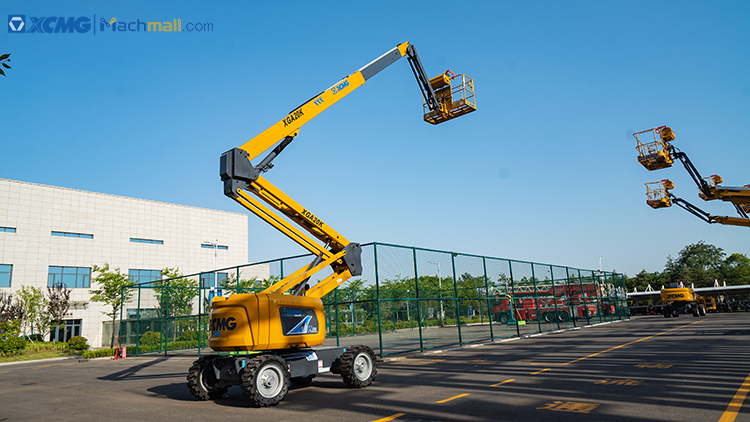

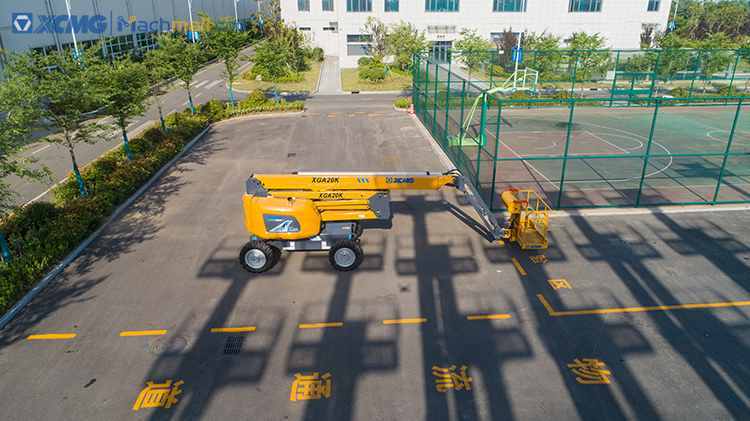

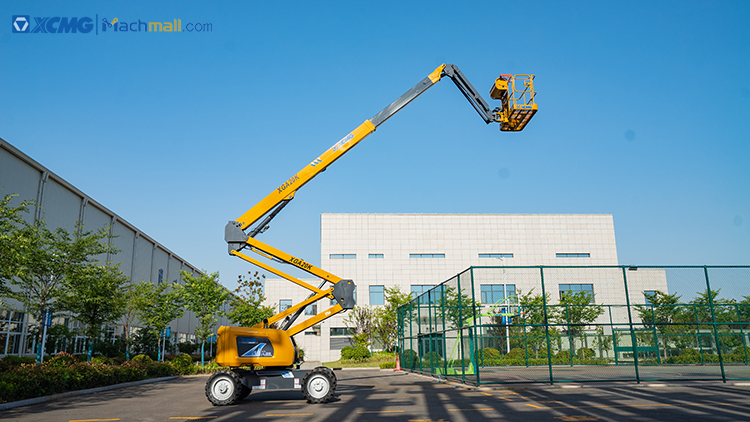

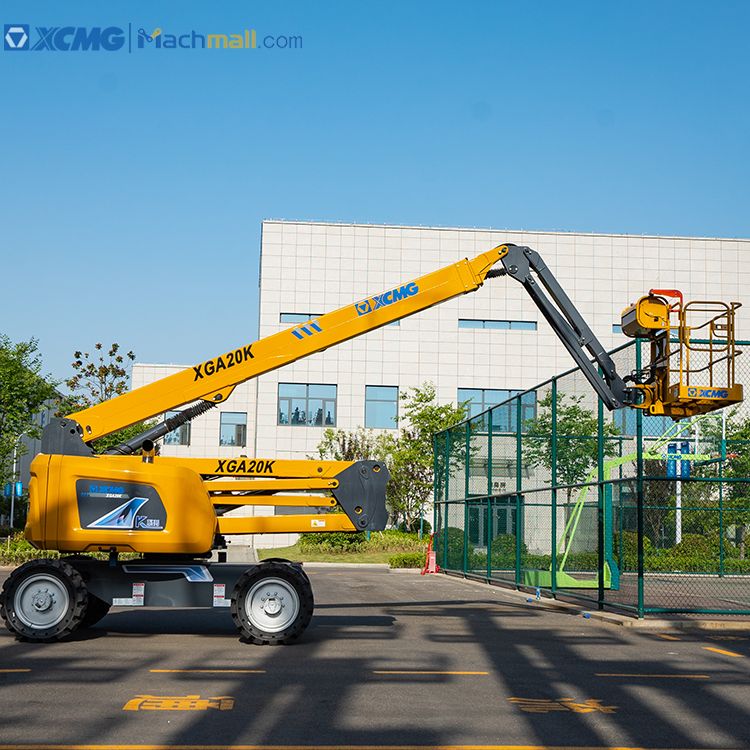

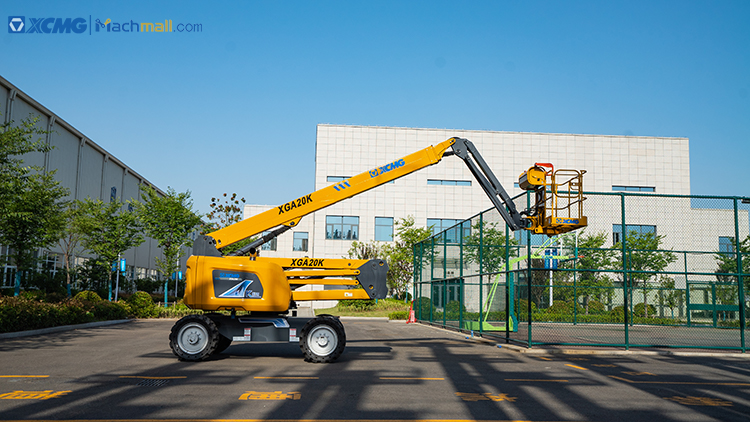

XCMG hot sale hydraulic articulated boom lift XGA20K with 20m working height.
The 20m Σ-shaped linkage-folding composite boom mobile elevating work platform is a mobile articulated boom elevating work platform with compact layout, high obstacle-crossing efficiency, accurate design, powerful drive, and easy operations.
XCMG hot sale hydraulic articulated boom lift XGA20Kfeatures simple control, high safety and reliability, and high accuracy and efficiency and can extensively meet the users’ needs in diversified industries, including construction building, steel structure, petrochemical, stadium, and leasing industries.
Advantages and features:
1. The 256kg/350kg double high-load design meets the working needs under diversified working conditions.
2. The 360° continuous slewing makes the operations easier. With 2.4m overall height, 8.54m overall length, and 2.3m overall width, this machine features small overall dimensions and eases the transport by container.
3. The four-wheel drive achieves 45% gradeability and the standard axle balance system realizes powerful ground adaptability.
4. The gravity lowering technology is applied for the boom to achieve higher stability and energy-saving.
5. The stepless speed regulation is applied to realize better operating comfort.
6. The non-power-supply design for the chassis improves the wading capability of the machine.
7. The steel closure panels are applied to achieve high reliability.
8. The independent emergency power source guarantees the easy emergency finishing of machine.
|
Item |
Parameter |
|
|
Overall dimensions |
Length (Under stowed status or during operation) |
8520mm |
|
Length (During transport, with jib folded down) |
6260mm |
|
|
Overall width |
2300mm |
|
|
Overall height |
2400mm |
|
|
Work platform dimensions |
Length Width Height |
1830x760x1150mm |
|
Wheelbase |
2500mm |
|
|
Maximum working height |
20.63m |
|
|
Maximum platform height |
18.63m |
|
|
Maximum working range |
12.08m |
|
|
Maximum carrying capacity |
256 kg (Without limit)/ 350 kg (With limit) |
|
|
Luffing range of 1st boom |
0～+72° |
|
|
Luffing range of 2nd boom |
0～+73° |
|
|
Slewing angle of turntable |
360° |
|
|
Tail swing of turntable |
540mm |
|
|
Slewing angle of platform |
160° |
|
|
Jib vertical rotation - Upward |
70° |
|
|
Jib vertical rotation - Downward |
65° |
|
|
Overall weight |
9900kg |
|
|
Traveling speed (Under stowed status) |
5.5 km/h |
|
|
Traveling speed (Lifting or expanding) |
1.0 km/h |
|
|
Minimum turn radius (Outer side) |
5.0m | |
|
Minimum turn radius (Inner side) |
2.3m |
|
|
Minimum ground clearance |
330mm |
|
|
Maximum gradeability (With counterweight end upward) |
30% (17°) |
|
|
Maximum gradeability (With counterweight end downward) |
45% (24°) |
|
|
Maximum lateral gradeability |
18% (10 °) |
|
|
Tire specification |
355/55D625 |
|
|
Engine model |
Yuchai YCF3050-T302 |
|
|
Engine rated power |
36.8/(2400) |
|
|
Fuel tank capacity |
90 L |
|
|
Hydraulic oil tank capacity |
120 L |
|
|
Hydraulic system capacity |
240 L |
|
