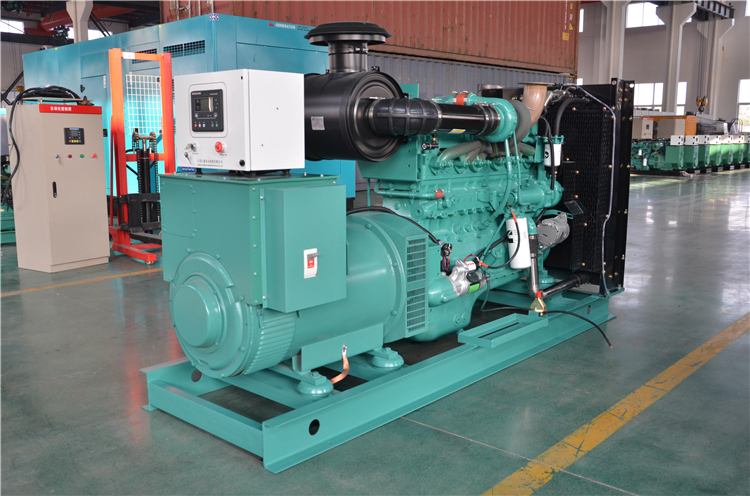

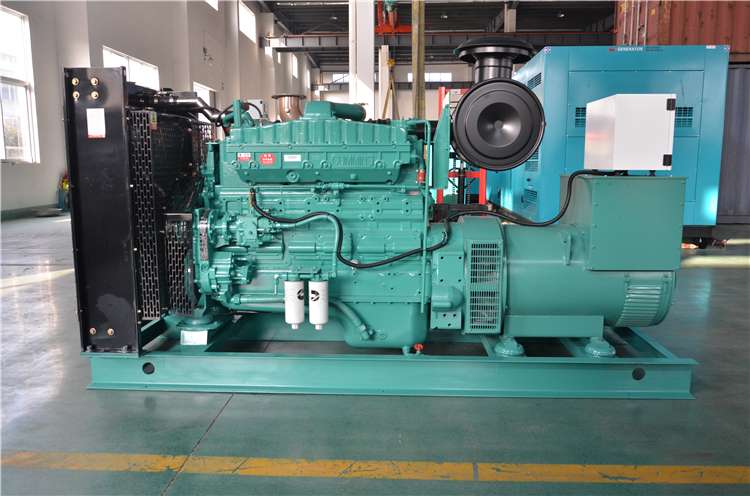

XCMG 250 kw silent Cummins diesel generators power JHK-250GF genset price
Specifications
- Weight:4450.000kg
- Condition:New
- Moving Type:Other
- Power:250KW/312.5KVA
- Rated voltage:400/230V
- Size:4000*1700*2000mm
- Brand:Cummins
- Rotating speed:1500r/min
- Weight:4450kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 250 kw silent Cummins diesel generators power JHK-250GF genset.
The power range of Cummins generator sets is 336-1343KW (450-1800 horsepower), which is vastly used in manufacturing, construction works, mine metallurgy, medical hospital, communication, petrochemical, data center, transportation, earthquake relief, civil administration, power supply etc.
1. Super power, wide power coverage. Power coverage 1086~1650 horsepower;
2. Has high working reliability and durability;
3. Low fuel consumption and good fuel economy;
4. Compact structure and convenient maintenance. Replaceable wet cylinder liner, good heat dissipation effect, easy to replace;
5. The parts are highly versatile. The common parts of K6 and KV reach 85%, and the high commonality of parts is beneficial to reduce manufacturing costs and reduce the inventory of parts.
With Cummins generators reliability, durability, flexibility, energy saving, environmental protection and excellent global after-sales service networks, Cummins diesel generators play an fundamental role in the global generator industry, and CE certification can be exported to Asia and Africa , America, Oceania and many other regions.
|
One the main parameters of the set |
|
|
The model of the unit |
JHK-250GF |
|
Power |
250KW/312.5KVA |
|
Rated voltage |
400/230V |
|
Rated current |
450A |
|
The waste of fuel with full load |
199g/kw·h |
|
Noise (7 mater) |
≤75dB |
|
Size (mm) |
4000*1700*2000 |
|
Weight |
4450KG |
|
The main parameters of the diesel engine |
|
|
Brand |
Cummins |
|
Place of production |
DCEC |
|
Model |
6LTAA9.5-G1 |
|
Spare Power |
320KW/400KVA |
|
Cooling way |
water cooling |
|
With Type |
Inline type |
|
Bore * Trip |
116.5mm*148mm |
|
Cylinder |
6cyclinders |
|
Displacement |
9.5L |
|
Lubricating oil capacity |
32L |
|
Rotating speed |
1500r/min |
|
The regulation of rotating speed |
E-Speed |
|
Starting way |
DC24V starting with electricity |
|
The main parameters of the generator |
|
|
Brand |
LING YU |
|
Place of production |
Jiangsu |
|
Model |
KHI 250-1-4 |
|
Type |
brushless（AVR automatic voltage regulation） |
|
The connecting way of the phase |
three phase four lines |
|
Insulation degree |
H degree |
|
Grading Protection |
IP22 |
