XCMG diesel generating sets JHK-120GF 150 kva Cummins silent diesel generator price
Specifications
- Weight:2250.000kg
- Condition:New
- Moving Type:Other
- Power:120KW/150KVA
- Rated voltage:400/230V
- Size:2900*1100*1650mm
- Brand:Cummins
- Rotating speed:1500r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

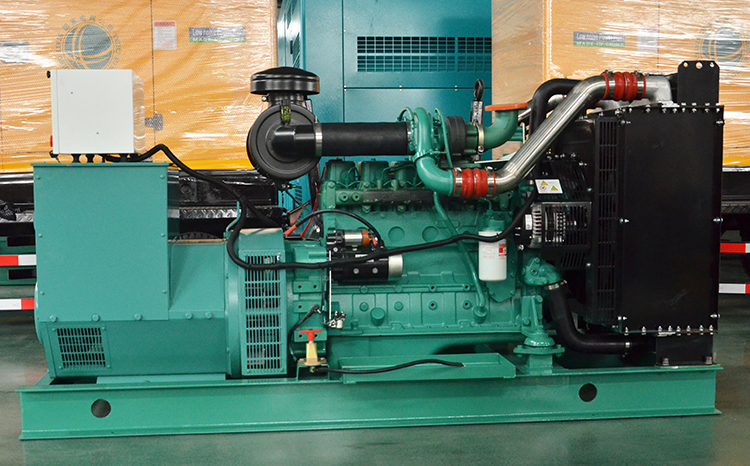

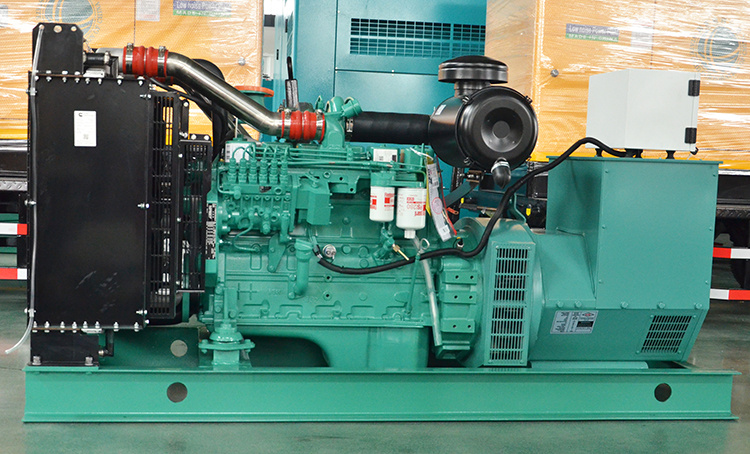

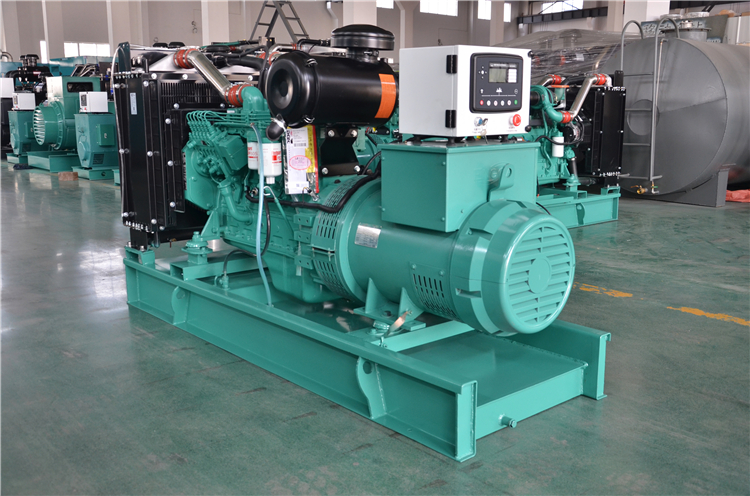

XCMG diesel generating sets JHK-120GF 150 kva Cummins silent diesel generator.

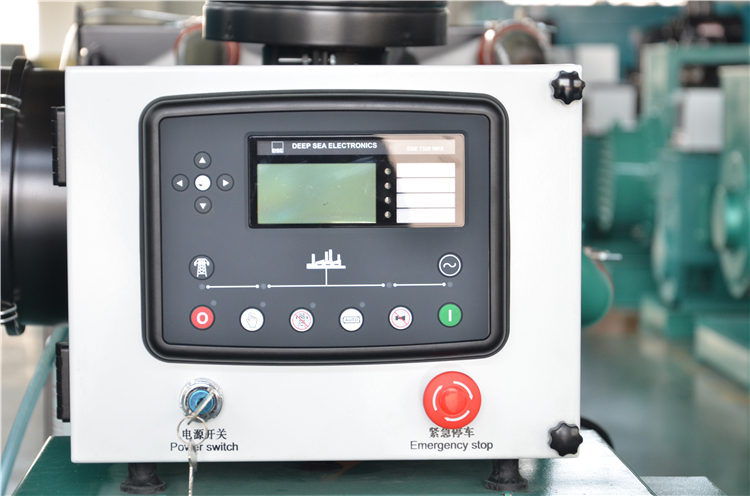

The control screen is a self-starting control screen.
Unit with Automatic Start and manual start function (15-50 seconds adjustable). With three-phase voltage, frequency, three-phase current, oil pressure, oil temperature, coolant temperature, unit speed, operating hours, battery voltage displays. Diesel engine has over-speed alarm stop, low oil pressure alarm and stop, high water temperature alarm and stop, generator voltage too high, too low alarm and stop, too high frequency, too low alarm and stop, short-circuit current and IDMT characteristic over-current protection.
The power range of Cummins K series engine is 336--1343KW (450-1800 horsepower), which is mainly used for mining, power generation, marine, rail cars and petroleum machinery.
1. Super power, wide power coverage. Power coverage 1086~1650 horsepower;
2. Has high working reliability and durability;
3. Low fuel consumption and good fuel economy;
4. Compact structure and convenient maintenance. Replaceable wet cylinder liner, good heat dissipation effect, easy to replace;
5. The parts are highly versatile. The common parts of K6 and KV reach 85%, and the high commonality of parts is beneficial to reduce manufacturing costs and reduce the inventory of parts.
|
One the main parameters of the set |
|
|
The model of the unit |
JHK-120GF |
|
Power |
120KW/150KVA |
|
Rated voltage |
400/230V |
|
Rated current |
216A |
|
The waste of fuel with full load |
207g/kw·h |
|
Noise (7 mater) |
≤75dB |
|
Size (mm) |
2900*1100*1650 |
|
Weight |
2250KG |
|
The main parameters of the diesel engine |
|
|
Brand |
Cummins |
|
Place of production |
DCEC |
|
Model |
6BTAA5.9-G12 |
|
Spare Power |
155KW/193.75KVA |
|
Cooling way |
water cooling |
|
With Type |
Inline type |
|
Bore * Trip |
102mm*120mm |
|
Cylinder |
6cyclinders |
|
Displacement |
5.9L |
|
Lubricating oil capacity |
16L |
|
Rotating speed |
1500r/min |
|
The regulation of rotating speed |
E-Speed |
|
Starting way |
DC24V starting with electricity |
|
The main parameters of the generator |
|
|
Brand |
LING YU |
|
Place of production |
Jiangsu |
|
Model |
KHI 120-1-4 |
|
Type |
brushless（AVR automatic voltage regulation） |
|
The connecting way of the phase |
three phase four lines |
|
Insulation degree |
H degree |
|
Grading Protection |
IP22 |
