China front end loader 4 ton LW400FN for sale
![](/app/topc/statics/images/close.png)
![China front end loader 4 ton LW400FN for sale](http://www.machmall.com/images/store/357636/item/257a18c2b3e47885dc4c691b9653826e1627962002.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Rated Load:4 ton
- Dimension(Long* Breadth * High):7420*2718*3450mm
- Type: Front Loader
- Place of Origin:Xuzhou, China
- Model Number:LW400FN
- Brand Name:XCMG
Specifications
- weight:13300.000kg
- Engine Brand:WEICHAI
- Rated Load:3-5 ton
- Bucket Capacity:4 - 6m³
- Bucket capacity:2.4m3
- Wheel base:2900mm
- Machine Weight:13300kg
- Power:123kw
- Tread:2060mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

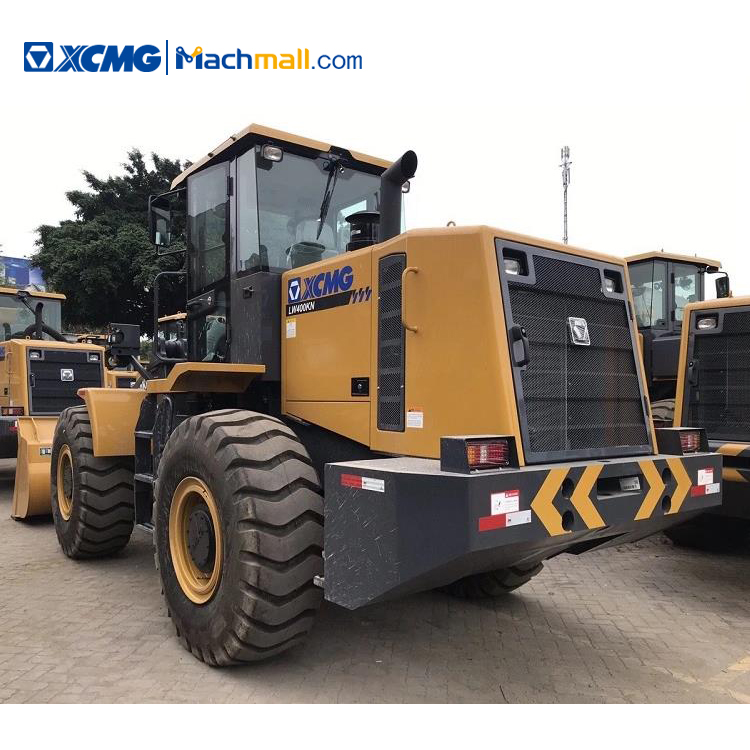

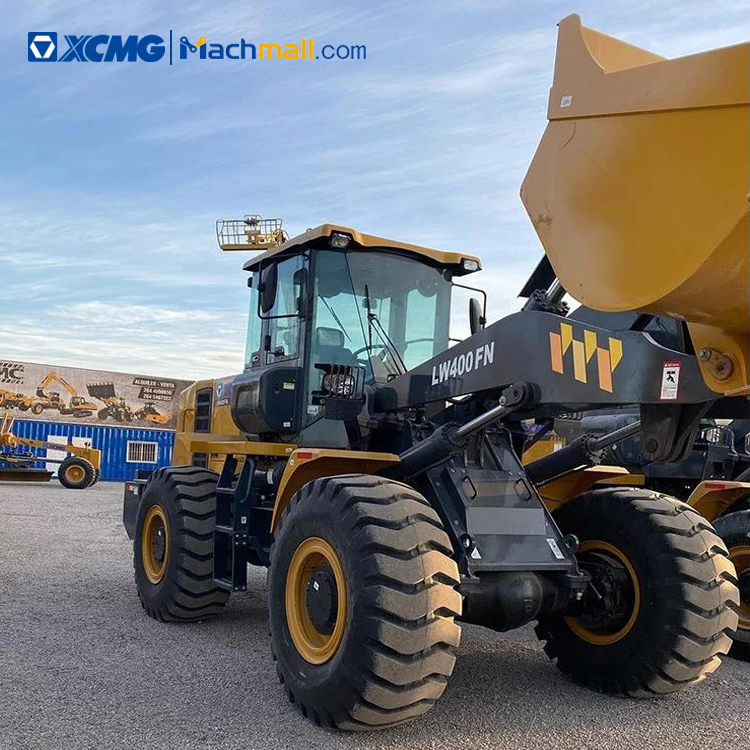

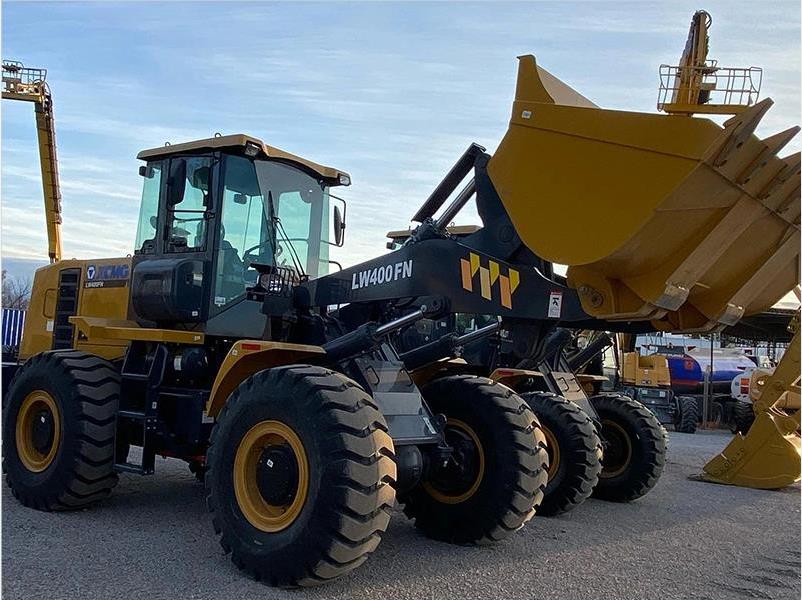

China front end loader 4 ton LW400FN.
With the largest machine weight, super-long machine body, and super-strong power performance and efficiency, front end loader LW400FN is leading the like products. The working performance of this machine is closing to that of a 5t product.Comprehensive upgrades of working performance, working efficiency, structural strength, service life, daily maintenances, and driving conditions.
With exclusively revolutionary breakthroughs in drive parts and covering parts, front end loader LW400FN is intrinsically far leading the industry like products. The whole series product adopts the super-strong structural design to achieve super-strong power performance, especially for super-heavy-duty working conditions.
1. Outstanding performance
* High power performance: The 13t industry-leading powerful bucket breakout force guarantees outstanding adaptability under diversi- fied severe working conditions.
* High working stability: 2,900mm extended wheelbase, 7,250mm extended machine body, and rear-mounted diesel tank ensure excellent working stability of the machine.
* High loading capacity: The standard bucket of up to 2.4m3 capacity is leading the industry like products.
Fast motions: The total cycle time is only 10s, leading the industry.
2. High strength
* Both front and rear frames adopt super-heavy-duty structure design, featuring thick plates and high strength.
* The finite element analysis is applied for the critical structural parts to ensure that such parts can meet the demands of diversified dangerous and heavy-load conditions.
* The gross machine weight is 13.5t, featuring high firmness and mightiness.
3. Convenient maintenances
* The engine hood adopts large upturning gate design in large opening angle to ease the maintenances.
* The detail design, including central pressure measurement, partially central lubrication, and central water drainage, brings you with really comfortable operation convenience.
Description |
Specification |
Unit |
Rated operating load |
4000 |
kg |
Bucket capacity |
2.4 |
m³ |
Machine weight |
13300±200 |
kg |
Dump clearance at maximum lift |
2850 |
mm |
Reach at maximum lift |
1020 |
mm |
Wheel base |
2900 |
mm |
Tread |
2060 |
mm |
Max.breakout force |
130±5 |
kN |
Max.traction force |
120±5 |
kN |
Hydraulic cycle time-raise |
5.6 |
s |
Total hydraulic cycle time |
9.8 |
s |
Min circle radius over outside bucket |
6180±50 |
mm |
Min. turning radius over tyres |
5570±50 |
mm |
Articulation angle |
38 |
° |
Gradeability |
28 |
° |
Tyre size |
20.5-25-16PR |
|
Overall machine dimension L×W×H |
7420×2718×3450 |
mm |
Model |
WP6G175E22 |
|
Rated Power/Speed |
129/2200 |
kW/rpm |
