Summary
- Certification:CE
- Dimension(L*W*H):7546*3600*17724mm
- Weight: 45ton
- Power(W):169kw
- Model Number:XR130E
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- Weight:45000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

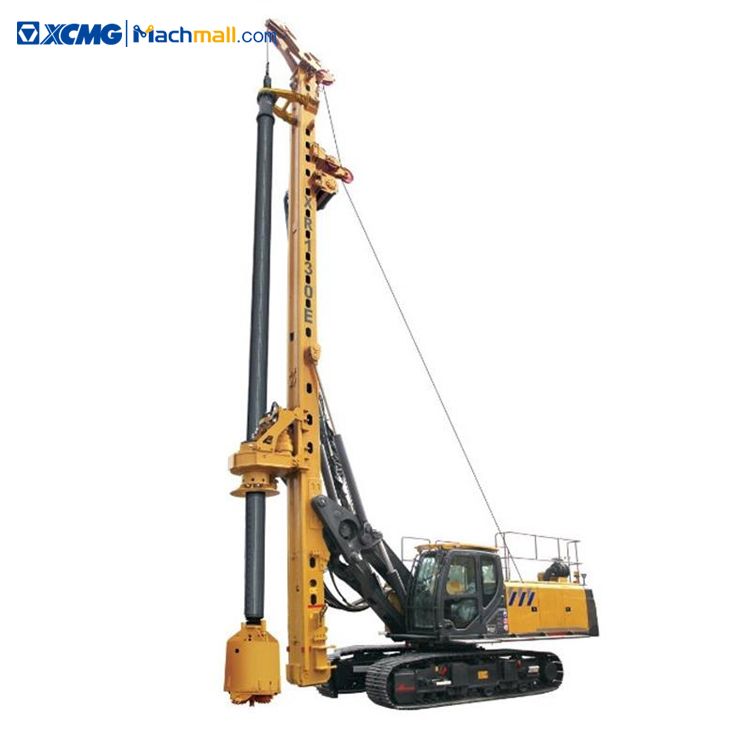

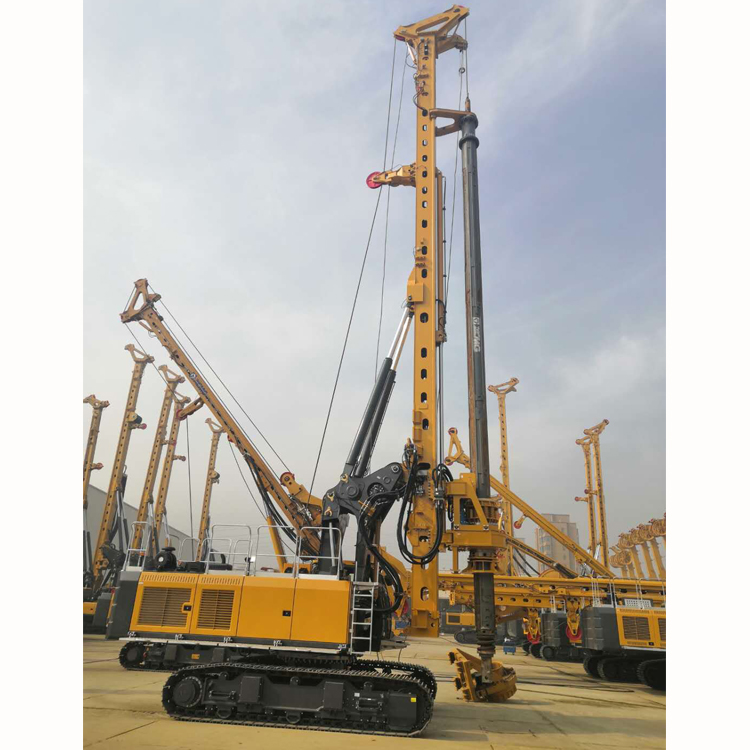

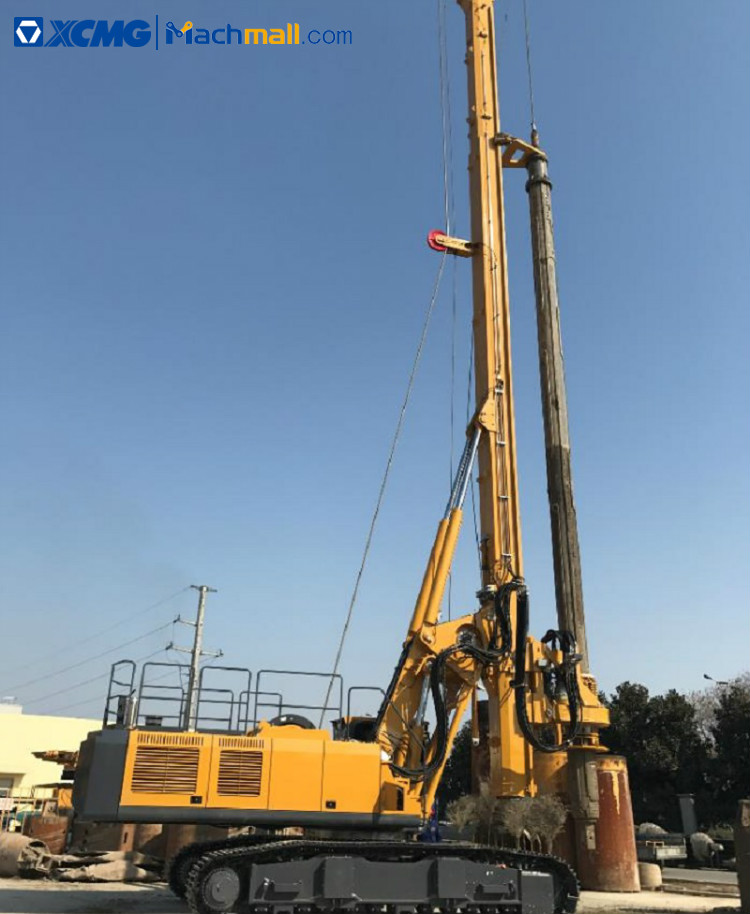

XCMG foundation drilling machine 130kn 50m rotary drilling rigs XR130E.
1. XCMG foundation drilling machine 130kn 50m rotary drilling rigs XR130E adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2. rotary drilling rigs XR130E adopts the Cummz electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
3. With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
4. Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is setted in main winding,single rope to make deep inspection more accurate.
5. The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.
|
Parameter |
|
Unit |
XR130E |
|
Engine |
Model |
|
QSB7-C227 |
|
|
Rated Power |
kW |
169 |
|
Rotary Drive |
Max. output torque |
kN/m |
130 |
|
|
Rotary speed |
r/min |
8~35 |
|
Max. Drilling Diameter |
|
mm |
2500 |
|
Max. Drilling Depth |
|
m |
50 |
|
Main Winch |
Max.Pulling force |
kN |
140 |
|
|
Max.line speed |
m/min |
75 |
|
Auxiliary Winch |
Max.Pulling force |
kN |
50 |
|
|
Max.line speed |
m/min |
70 |
|
Mast Rake |
Side/forwards/backwards |
|
3° |
|
Undercarrige |
Max. traveling speed |
km/h |
2.7 |
|
|
Max.grade ability |
% |
40 |
|
|
Min. Clearance |
mm |
345 |
|
|
Track shoe width |
mm |
600 |
|
|
Distance between tracks |
mm |
2500~3600 |
|
Hydraulic System |
Working pressure |
Mpa |
35 |
|
Overall Drilling Weight |
|
t |
45 |
|
Dimension |
Working condition |
mm |
7546×3600×17724 |
|
|
Transportation condition |
mm |
14097×2500×3500 |
