Summary
- Fork Width:45mm
- Fork Length:1070mm
- Min Lifting Height:2160mm
- Max Lifting Height:4110mm
- Rated Loading Capacity:3000kg
- Power Source: AC Motor
- Model Number:EFL302
- Brand Name: EP
- Place of Origin:Zhejiang, China
Specifications
- Weight:4080.000kg
- Condition:New
- Moving Type:Other
- Tyre type:Solid rubber
- Steering type:Hydraulic steering
- Lift motor:12kW
- Turning radius:2500mm
- Service weight (include battery):4080kg
- Drive motor:10kW
- Height, mast extended:4110mm
- Battery voltage:80V205Ah
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

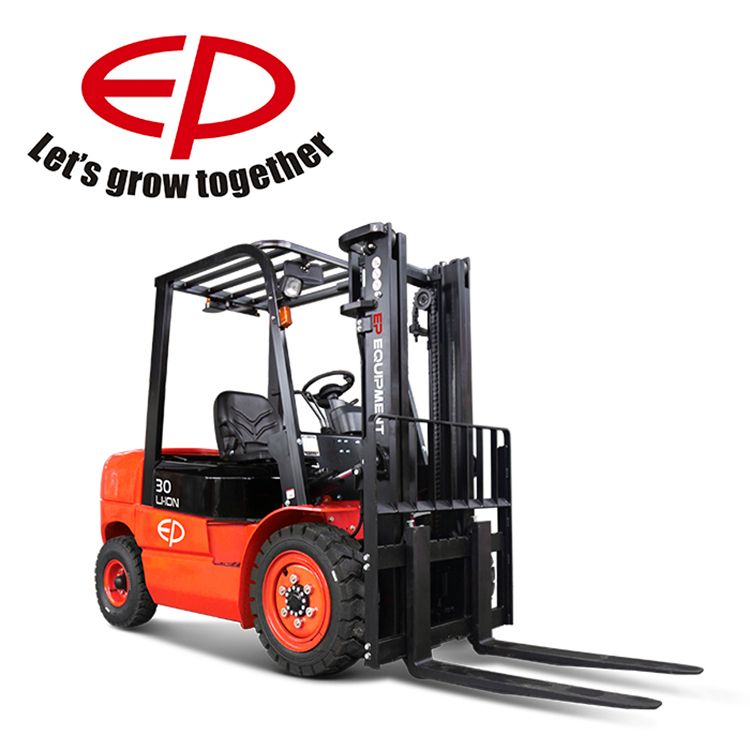

EP forklift battery li-ion EFL302 3 ton 6m mast height with CE.
EP forklift battery li-ion EFL302 3 ton 6m mast height with CE as an lithium-powered forklift truck not only can handle large-tonnage cargos and construction materials, but also supports low emission, long duration, and easy maintenance.
With carrying capacity of 3tons and high strength frames, EFL302 combines features of a heavy-duty diesel truck and a low maintenance electric truck. It's perfectly for heavy-duty lifting operations and adoptable to many operation environments.
EFL302 is equipped with batteries of large capacity to work for a long time and make sure the machines are on your working schedule.
Advantages:
1. IC forklift design with li-lon technology.
2.Li-lon battery for opportunity charging & flexibility.
3.Outdoor & indoor: the most flexbile forklift in the industry.
|
Distinguishing mark |
|
Unit |
Value |
|
Manufacturer |
|
|
EP |
|
Model designation |
|
|
EFL302 |
|
rated capacity |
Q |
kg |
3000 |
|
Load center distance |
c |
mm |
500 |
|
Wheelbase |
y |
mm |
1750 |
|
Self weight (include battery) |
|
kg |
4080 |
|
Dimensions |
|
|
|
|
Height, mast lowered |
h1 |
mm |
2070 |
|
Free lift (load backrest) |
h2 |
mm |
120 |
|
Lift height |
h3 |
mm |
3000 |
|
Height, mast extended |
h4 |
mm |
4110 |
|
Height of overhead guard (cabin) |
h6 |
mm |
2160 |
|
Fork dimensions |
|
mm |
45X122X1070 |
|
Overall length |
l1 |
mm |
3780 |
|
Overall width |
b1/ b2 |
mm |
1230 |
|
Turning radius |
Wa |
mm |
2500 |
|
performance data |
|
|
|
|
Travel speed, laden/ unladen |
|
km/h |
44512 |
|
Lifting speed,laden/unladen |
|
m/s |
0.29/ 0.36 |
|
Lowering speed,laden/unladen |
|
m/s |
0.4/ 0.43 |
|
Electric-engine |
|
|
|
|
Drive motor rating S2 60 min |
|
kw |
10 |
|
Lift motor rating at S3 15% |
|
kw |
12 |
|
Battery voltage/nominal capacity K5 |
|
V/Ah |
80V/205AH |
|
The maximum allowed size battery |
|
|
731X 608X 326mm |
