XCMG manufacturer XE215S 20 ton floating excavator for sale
Summary
- Max Digging Radius:9950mm
- Machine Weight:34260kg
- Maximum Digging Depth:5745mm
- Maximum Digging Height:10595mm
- Bucket capacity:0.93m³
- Model Number:XE215S
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- Weight:34260.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

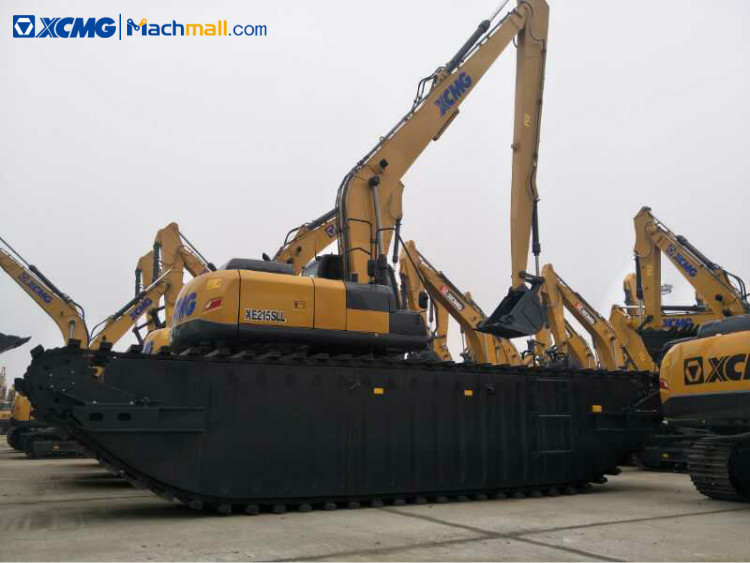

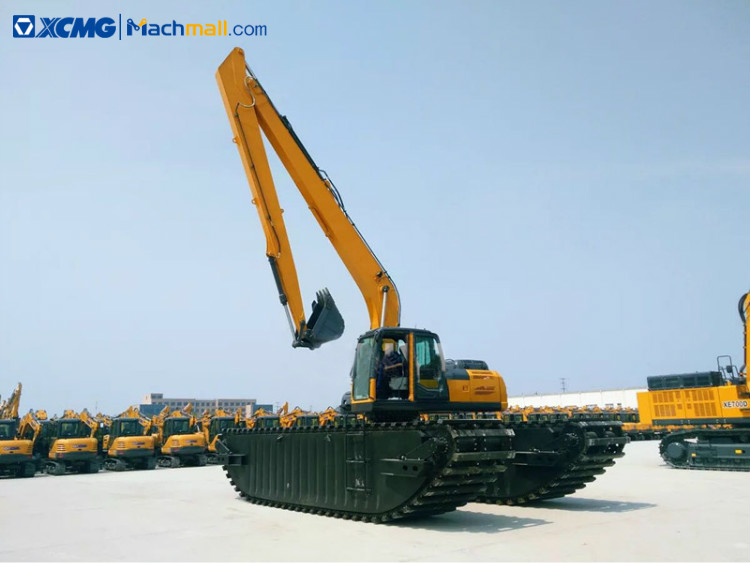

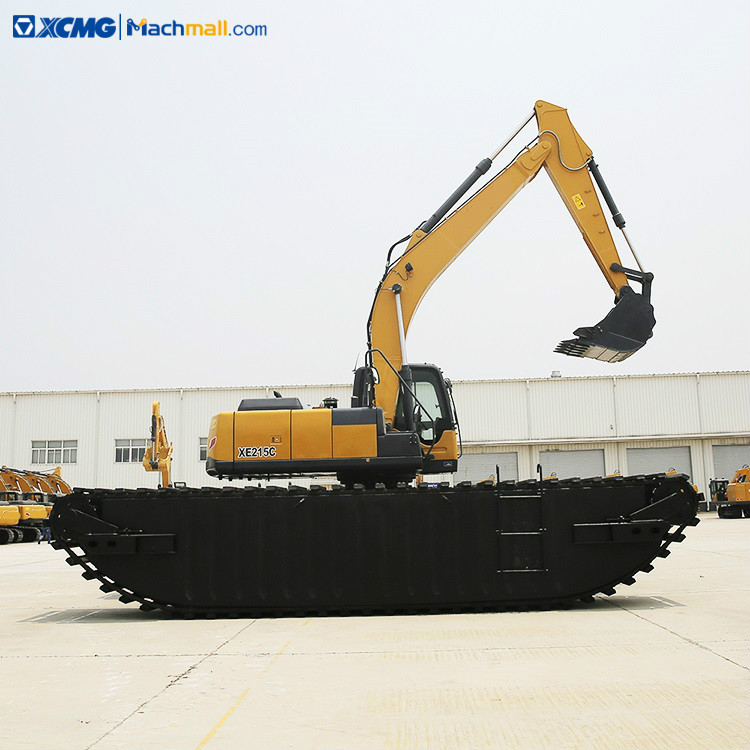

XCMG manufacturer XE215S 20 ton floating excavator.
XE215S 20 ton floating excavator are widely used in river dredging, watershed management, wet embankment and other work, on the river, river, lake, sea, beach resources development and environmental remediation operations are of great help.
Floating excavator XE215S is equipped with imported engine and hydraulic system, and the operation efficiency and reliability are higher. Walking device with sealed box, 5 times the conventional excavator grounding area can be adapted to very soft ground, wetlands, swamps. Three rows of walking chains ensure safe and reliable walking in the water.
|
Operating weight |
|
34260kg |
|
Bucket capacity |
|
0.93m³ |
|
Engine |
Model |
CC-6BG1TRP-08 |
|
|
Max.Rated power |
128.5kw/2100rpm |
|
|
Max.Torque |
551N.m/1600rpm |
|
|
Displacement |
6.494L |
|
Main |
Speed |
3.2km/h |
|
technical |
Slewing speed |
13.3r/min |
|
parameter |
Gradeability |
49%（26°） |
|
|
Ground pressure |
13.7KPa |
|
|
Buet digging force |
149KN |
|
|
Arm digging force |
111KN |
|
|
Max.Traction force |
189KN |
|
Hydraulic system |
Main pump flow |
2×206L/min |
|
|
Main safety valve pressure |
34.3/37.0MPa |
|
|
Walking system pressure |
34.3MPa |
|
|
Slewing system pressure |
28MPa |
|
|
Pilot system pressure |
3.9MPa |
|
Tank |
Fuel tank |
360L |
|
capacity |
Hydraulic tank |
220L |
|
|
Engine tank |
25L |
|
Dimension |
Overall length |
11335mm |
|
|
Overall width |
5768mm |
|
|
Overall height |
3925mm |
|
|
Turntable width |
2710mm |
|
|
Track shoe length |
9425mm |
|
|
Carrier ovarall width |
5768mm |
|
|
Tumblers distance |
8528mm |
|
|
Track gauge |
3640mm |
|
|
Pontoon width |
1500mm |
|
|
Pontoon height |
1800mm |
|
|
Pontoon length |
9425mm |
|
|
Counterweight ground clearance |
1990mm |
|
|
Min.Ground clearance |
1030mm |
|
|
Rear slewing radius |
2728mm |
|
Operating |
Max.Digging reach |
10595mm |
|
range |
Max.Dumping reach |
7710mm |
|
|
Max.Digging depth |
5745mm |
|
|
8-inch horizontalplane digging depth |
5560mm |
|
|
Max.Vertical diggingdepth |
4790mm |
|
|
Max.Digging radius |
9950mm |
|
|
Min.Slewing radius |
3530mm |
