Summary
- Max Digging Radius:5300mm
- Machine Weight:4200kg
- Maximum Digging Depth:3060mm
- Maximum Digging Height:5000mm
- Bucket capacity:0.12m3
- Model Number:XE35E
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- Weight:42000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

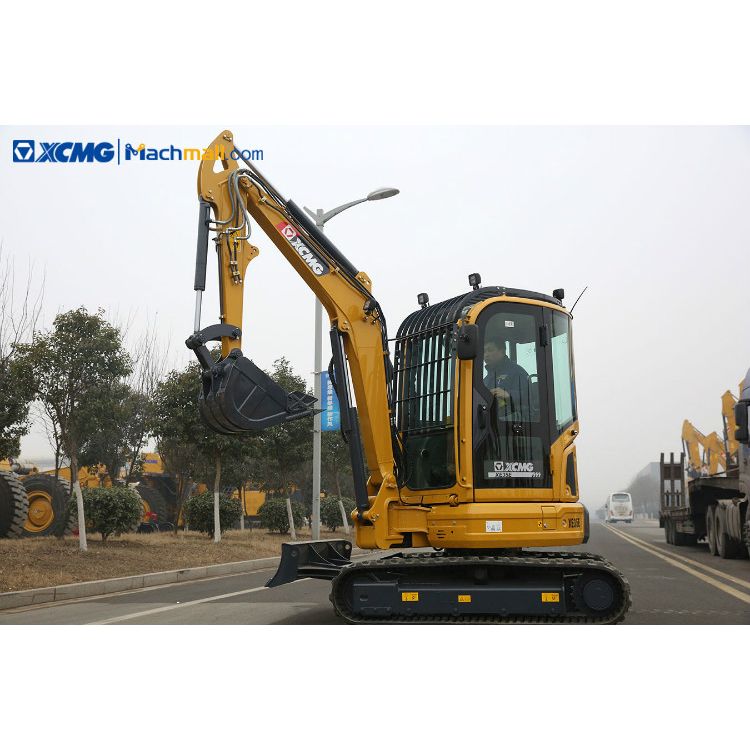

XCMG 3 ton excavator mini digger.
XCMG 3 ton excavator XE35E cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc.

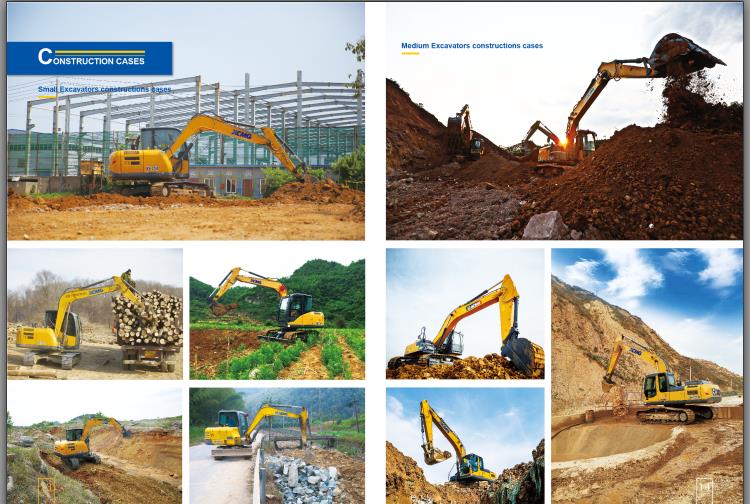

Mini digger XE35E is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
1. Engine that meets Euro V emission standards is highly reliable, environmentally friendly, and have lower fuel consumption.

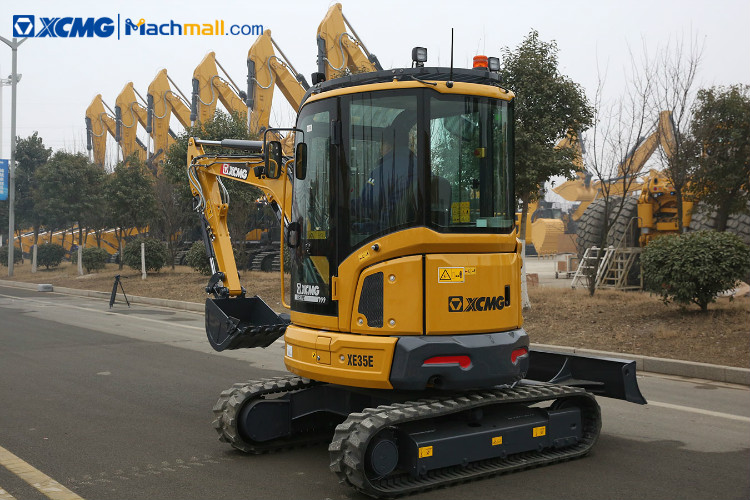

2. Compact and Tailless design cooperates with boom swing function, which can adapt to the narrow space operation flexibly.
3. When the travel system retracts, the length between two crawlers is only 990mm, which has better trafficability.
4. Key electrical elements are arranged in new type electrical box, which makes daily maintenance more convenient.
|

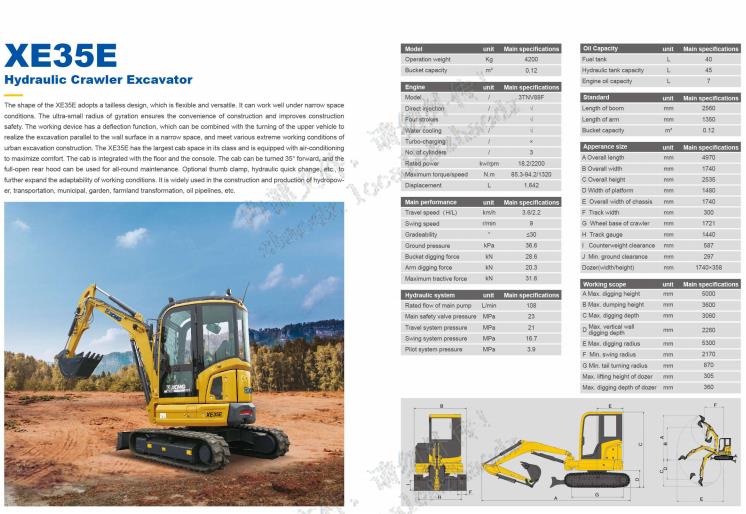

Item |
|
Unit |
Parameters |
|
Model |
Operating weight |
Kg |
4200 |
|
|
Bucket capacity |
m³ |
0.12 |
|
Engine |
Rated power |
kw/rpm |
18.2/2200 |
|
|
Maximum torque/speed |
N.m |
85.3-94.2/1320 |
|
|
Displacement |
L |
1.642 |
|
Main performance |
Travel speed (H/L) |
km/h |
3.6/2.2 |
|
|
Swing speed |
r/min |
9 |
|
|
Gradeability |
° |
≤30 |
|
|
Ground pressure |
kPa |
36.6 |
|
|
Bucket digging force |
kN |
28.6 |
|
|
Arm digging force |
kN |
20.3 |
|
|
Maximum tractive force |
kN |
31.6 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
108 |
|
|
Main safety valve pressure |
Mpa |
23 |
|
|
Travel system pressure |
Mpa |
27.5 |
|
|
Swing system pressure |
Mpa |
16.7 |
|
|
Pilot system pressure |
Mpa |
3.9 |
|
Oil capacity |
Fuel tank capacity |
L |
40 |
|
|
Hydraulic tank capacity |
L |
45 |
|
|
Engine oil capacity |
L |
7 |
|
Appearance size |
A Overall length |
mm |
4960 |
|
|
B Overall width |
mm |
1740 |
|
|
C Overall height |
mm |
2535 |
|
|
D Width of platform |
mm |
587 |
|
|
E Minimum tail swing radius |
mm |
870 |
|
|
F Track shoe width |
mm |
300 |
|
|
G Wheel base of crawler |
mm |
1721 |
|
|
H Track gauge |
mm |
1440 |
|
|
J Minimum ground clearance |
mm |
297 |
|
|
Dozer blade(width/height) |
mm |
1740/358 |
|
Working range |
A Maximum digging height |
mm |
5000 |
|
|
B Maximum dumping height |
mm |
3600 |
|
|
C Maximum digging depth |
mm |
3060 |
|
|
D Maximum vertical wall digging depth |
mm |
2260 |
|
|
E Maximum digging radius |
mm |
5300 |
|
|
F Minimum swing radius |
mm |
2170 |
|
|
Maximum dozer lifting height |
mm |
305 |
|
|
Maximum dozer cutting depth |
mm |
360 |
|
Standard |
Length of boom |
mm |
2560 |
|
|
Length of arm |
mm |
1350 |
