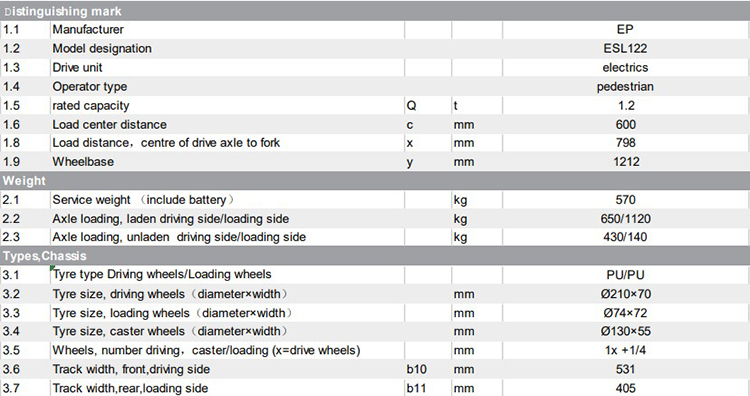

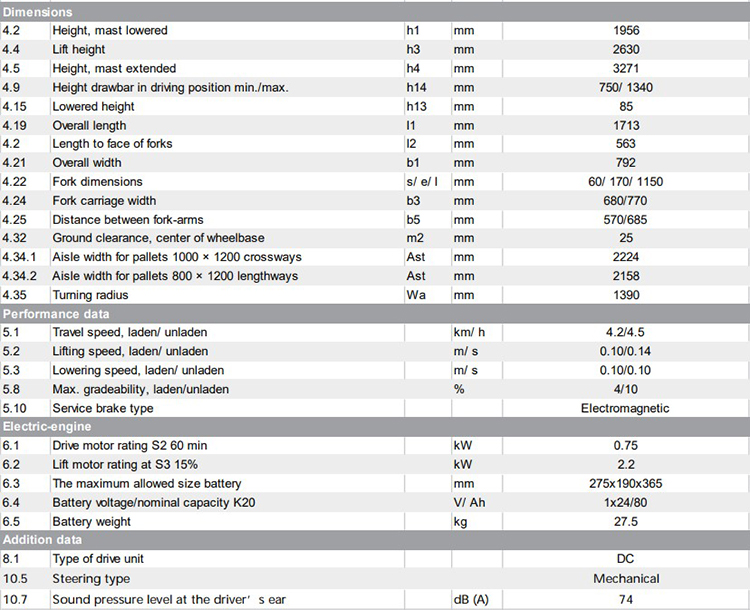

Specifications
- Weight:570.000kg
- Service weight (include battery):570 kg
- Height, mast lowered:1956 mm
- Lift height:2630 mm
- Height, mast extended:3271 mm
- Overall length:1713 mm
- Overall width:792 mm
- Fork dimensions:60/ 170/ 1150 mm
- Turning radius:1390 mm
- Type of drive unit:DC
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

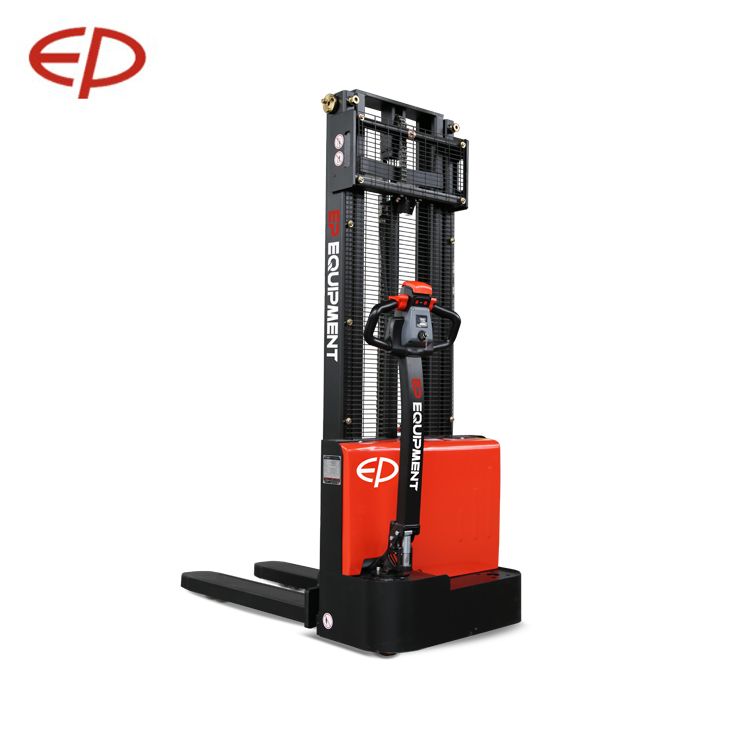

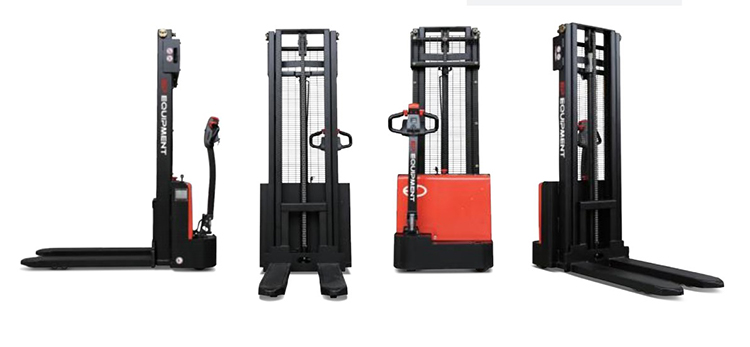

Electric stacker EP ESL122 3615mm lift height for narrow aisle.
Electric stacker EP ESL122 3615mm lift height for narrow aisle is an electric stacker equipped with a 24V/80Ah lithium iron phosphate battery. It adopts a high-strength chassis and a high-rigidity mast, which can fully ensure the stability of the vehicle during operation. Electric stacker EP ESL122 3615mm lift height for narrow aisle can efficiently complete vertical stacking tasks and is very suitable for operation in narrow spaces.
ESL122 can optimize multiple tasks, and can perform stacking tasks in a small space, one is an ideal stacker. It is suitable for lifting and handling operations in small and medium-sized warehouses and factories, and can give full play to its advantages in medium-height racking systems and narrow aisles.
Features:
1.The side impact beam, plates, and boxes make the chassis stronger and can greatly reduce stress and deformation caused by heavy load.
2.The rigidity of the mast is greatly improved by its beam structure to provide smooth lifting and stacking for daily operation.
3.The extra-long and offset tiller with the crawl speed button provides ESL122 a better visibility and nimble maneuverability when operating in tight space.
4.High quality hydraulic pump ensures very little noise, maximum efficiency, durability and shortens lifting time.
