Summary
- Fork Width:100mm
- Fork Length:1070 mm
- Min Lifting Height:100mm
- Max Lifting Height:3500mm
- Rated Loading Capacity:1000kg 1500kg 2000kg
- Power Source: DC MOTOR
- Type: Powered Stacking Forklift
- Model Number:CDD1030 CDD1530 CDD2030
- Brand Name:YANCHA
- Place of Origin:Jiangsu, China
Specifications
- weight:750.000kg
- Condition:New
- Moving Type:Other
- Tire type:Solid Tyre
- Overall Dimensions:2000*860*2080mm
- Battery:24V
- Certification:CE
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

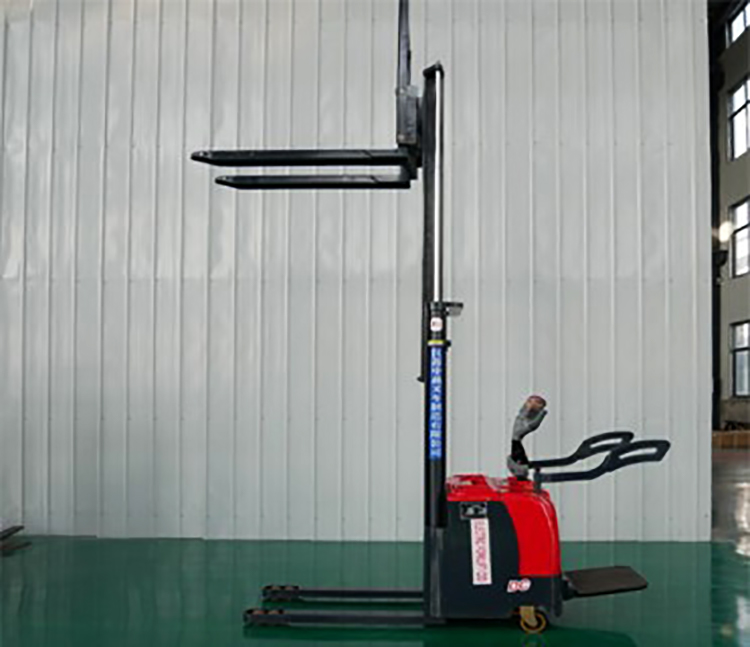

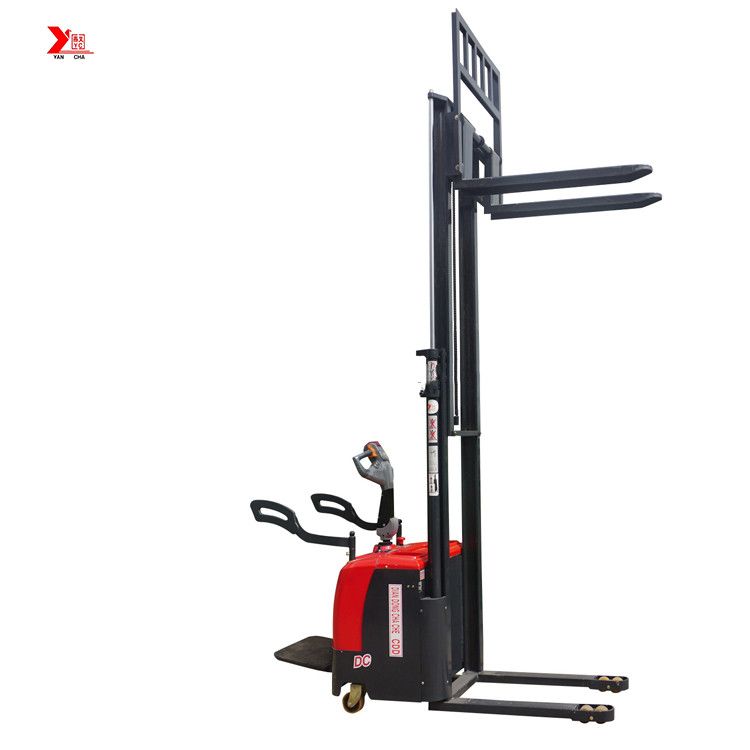

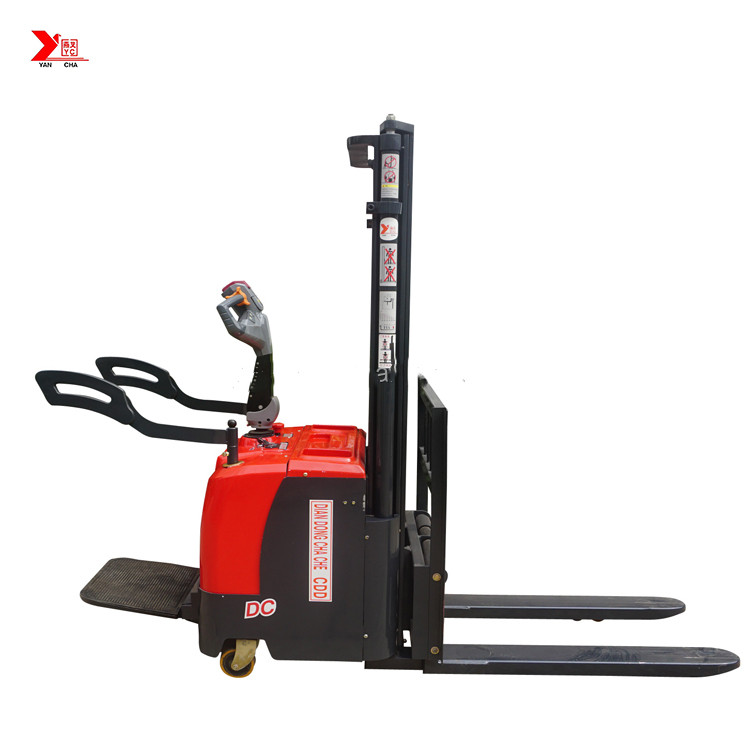

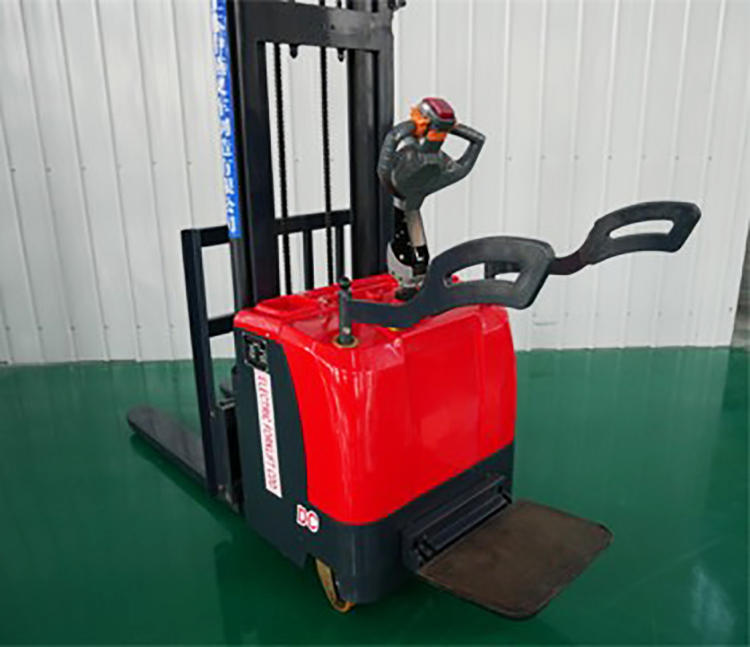

China YANCHA electric stacker 1.5 ton 2 ton.
China YANCHA electric stacker 1.5 ton 2 ton is widely used in harbor, railway station, freight yard and warehouse for mineral oil industry, chemical industry, pharmacy, light textile, war industry, oil paint, pigment and coal industries.
It is an ideal pallet equipment operated in narrow passway and limited space, such as high rack warehouse, workshop.
Advantages:
1. Portal frame is made of imported German channel steel, which is stronger and more durable to guarantee the stability and safety of the forking.
2. Portal frame is installed a guard net to protect operator from being hurt accidentally.
3. Equipped with double oil cylinders to avoid shaking when lifting.
4. With a function of emergency sheering driving: if the operator has a crush on the back when driving backward, he can hit the reversing button on hand shank to make the truck move in reverse immediately and avoid being hurt.
Model |
|
CDD1030 |
CDD1530 |
CDD230 |
Load Capacity |
kg |
1000 |
1500 |
2000 |
Lift Height |
mm |
3000 |
3000 |
3000 |
Load Center |
mm |
500 |
500 |
500 |
Fork Length |
mm |
1070 |
1070 |
1070 |
Lowest height |
mm |
25 |
25 |
25 |
Manipulation Way |
|
Handle |
Handle |
Handle |
Tyres |
|
Nylon/PU |
Nylon/PU |
Nylon/PU |
Dimension of Driving Wheel |
|
250*80 |
250*80 |
250*80 |
Speed at Full Load |
km/h |
5 |
5 |
5 |
Lifting Speed at full Load |
mm/sec |
90 |
85 |
80 |
Speed Control Way |
|
Stepless Speed Regulator |
||
Door Frame Tilt Angle |
° |
/ |
/ |
/ |
Gradient at full Load |
° |
10 |
8 |
8 |
Battery |
V/Ah |
24/180 |
24/180 |
24/180 |
Working Time(for reference) |
h |
8 |
7 |
7 |
Driving Motor |
kw |
1.2 |
1.2 |
1.5 |
Lifting Motor |
kw |
2.2 |
2.2 |
3 |
The Min. Turning Inner Radius |
mm |
1250 |
1250 |
1250 |
L X W X H Dimension |
mm |
2000*860*2080 |
2000*860*2080 |
2000*860*2080 |
weight |
kg |
680 |
700 |
750 |
