Specifications
- weight:1.000kg
- Battery: 24v/180Ah
- Overall Dimensions:1800*840*2080mm
- Power type:DC Power
- Fork Width:700mm
- Certification:CE
- Loading Capacity:1500kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

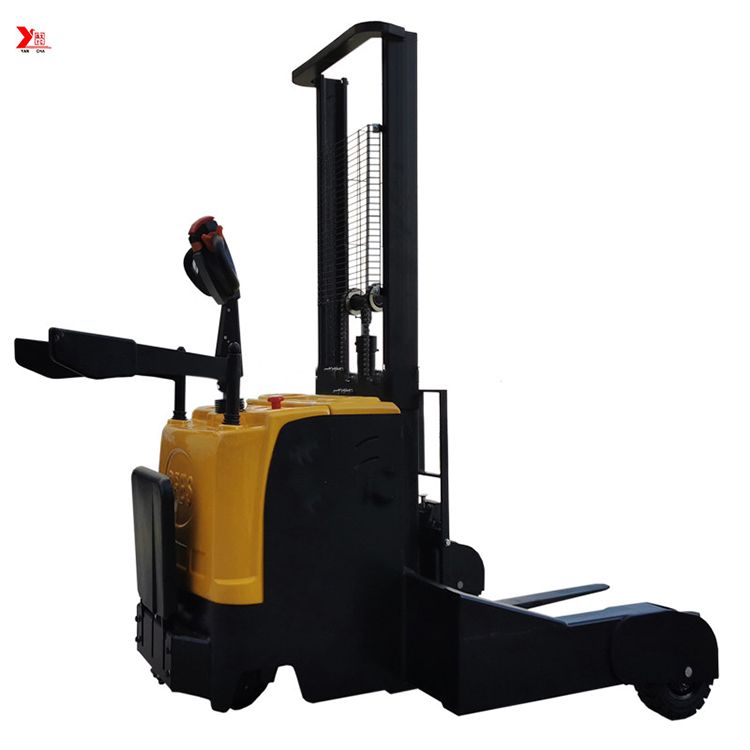

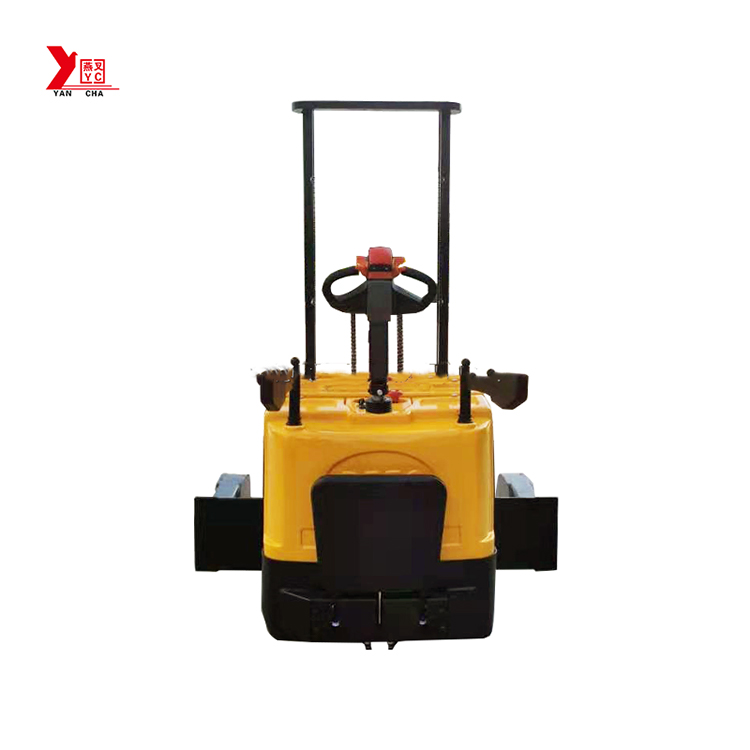

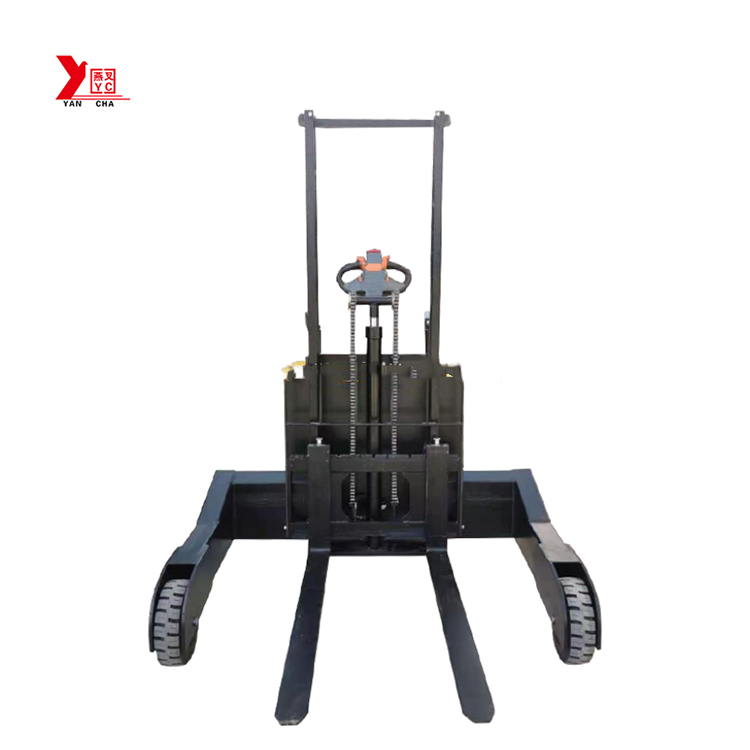

YANCHA electric rider stacker use for all terrain 2170mm height.
YANCHA electric rider stacker use for all terrain 2170mm height is equipped with combined idler wheel with high strength and low deformation degree.
Advantages:
1.Adopt imported motor to output strong traction and power so that it can still walk steadily on rough road and slope.
2.More safe and confortable braking system.
3.Flow-limiting valve can adjust drop speed of portal frame. It can prevent portal frame from dropping fast even though the oil pipe explodes, and guarantee the safety of operator.
Project |
value |
Load Capacity |
1T/1.5T |
Lift Height |
1.6M/2M/2.5M/3M (can be customized) |
Fork Size |
1220*120*50mm |
Whole Length |
2170mm |
Whole Width |
1520mm |
Whole Height |
1.6M/2.1M |
Battery |
24V/120A/180A |
Weight |
1000kgs |
Min. Turning Radius |
1500mm |
Travel Speed |
5km/h |
Load Center |
550mm |
Lift Motor |
2.2kw |
Drive Motor |
1.5kw |
Operation Way |
Handle |
