Specifications
- weight:620.000kg
- Operating mode:Stand-on type
- Wheelbase :1330 mm
- Turning radius :1585 mm
- Drive control mode:AC speed control
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

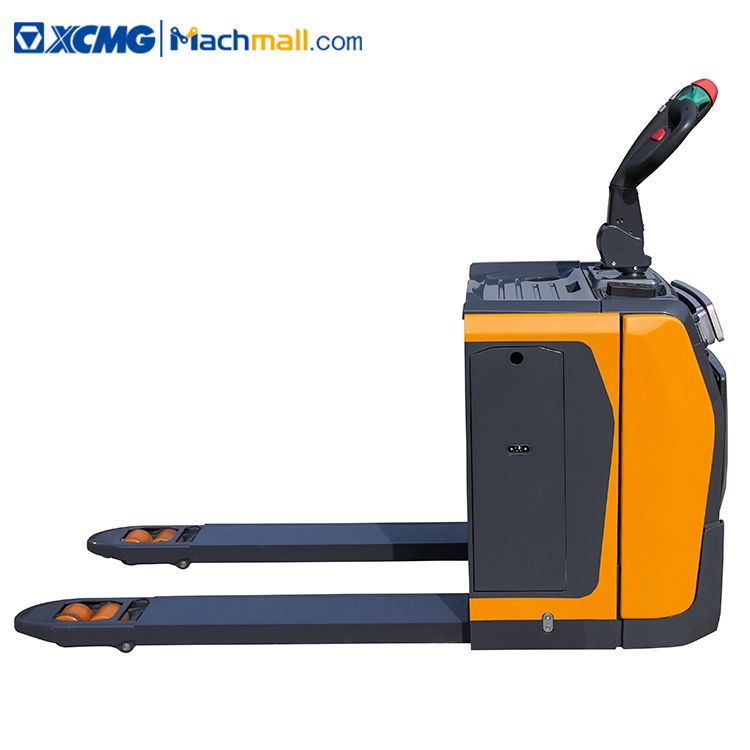

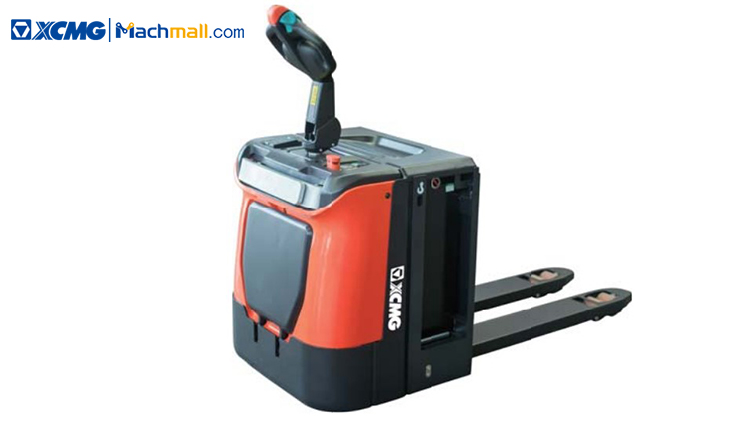

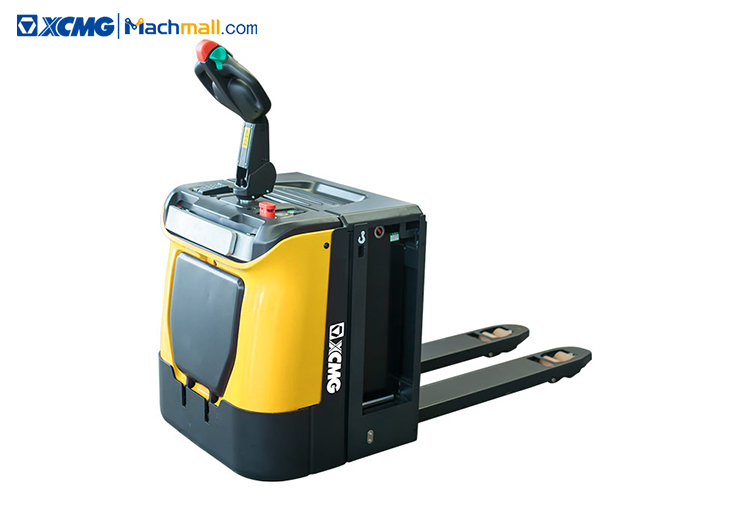

XCMG 2 ton electric pallet truck XCC-P20 stand-on type with AC control.
XCMG 2 ton electric pallet truck XCC-P20 stand-on type is equipped with imported AC drive motor, gearbox, and electromagnetic controller, with the machine speed up to 8km/h.
The integral footplates and protective arms and the all-new body internal structure minimize the overall length of the pallet truck and realize the minimum turning radius within the industry. The footplates in floating structure realize higher operating comfort.
The optional password lock allows the start by manually inputted password or card swiping to remarkably simplify the authorization procedure and meet the multi-operator operation needs. The optional built-in charger better simplifies the charging operation under the working conditions with low operating intensity.
The optional side-pull battery can allow the quick replacement with the use of tow tractor to meet the multi- shift operation needs of the operator.
Project |
Unit |
Parameter |
Parameter item |
|
XCC-P20 |
Rated carrying capacity |
kg |
2000 |
Lifting height |
mm |
120 |
Minimum fork height |
mm |
85 |
Overall length/vehicle length/total width |
mm |
1790/640/790 |
Fork size |
mm |
55/173/1150 |
Outer spacing of forks |
mm |
540/685 |
Minimum turning radius |
mm |
1585 |
Driving speed (full load/no load) |
km/h |
7.5/8.0 |
Lifting speed (full load/no load) |
mm/s |
27/30 |
