Summary
- Max Lifting Height:3000 mm
- Rated Loading Capacity:3000 kg
- Power Source:Battery
- Type:Sit-on type
- Model Number:XCB-P30
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
Specifications
- Weight:5100.000kg
- Condition:New
- Moving Type:Other
- Front overhanging distance:470mm
- Mast tilting angle (front/rear):6/12
- Standard lifting height:3000mm
- Height with gantry retracted:2090mm
- Roof protection frame height:2200mm
- Free lifting height:145mm
- Overall length(with forks):3775mm
- Overall length(without forks):2555mm
- Overall width:1280mm
- Min. turning radius:2270mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

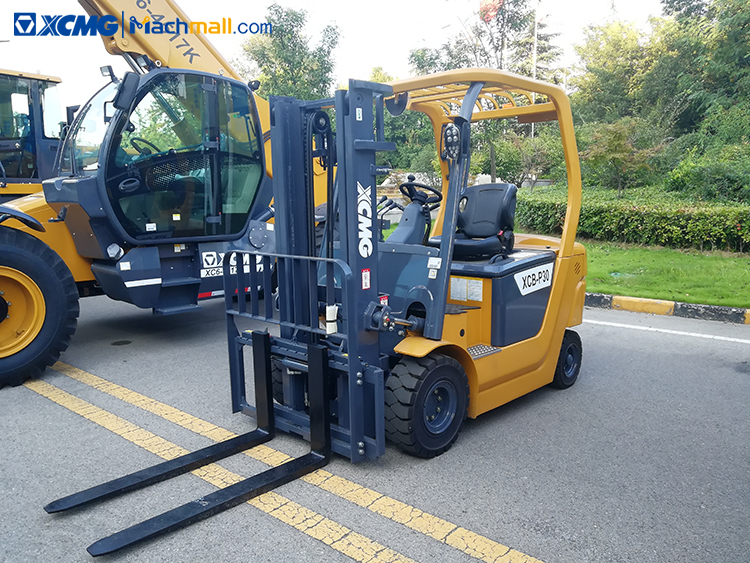

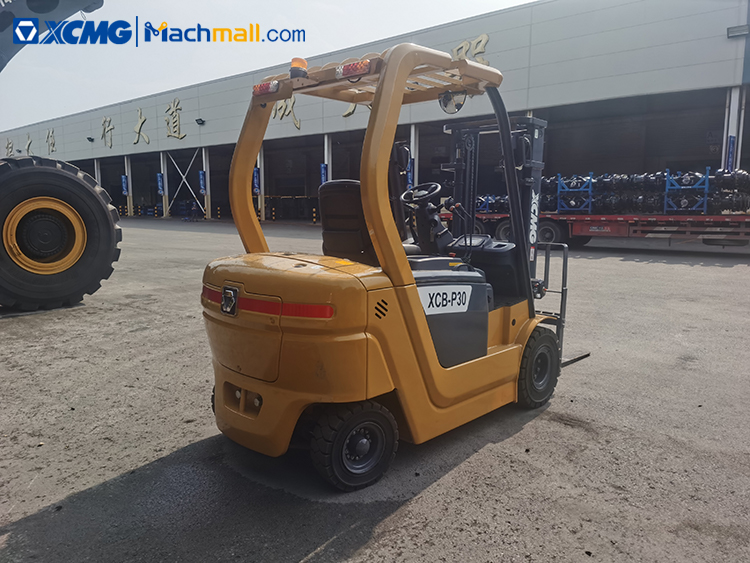

XCMG 3 ton electric forklift 3 - 6m mast height use in cold room -25℃.
XCMG electric forklift XCB-P30 provide you with multiple choice as per your real need,we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide.
These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift.

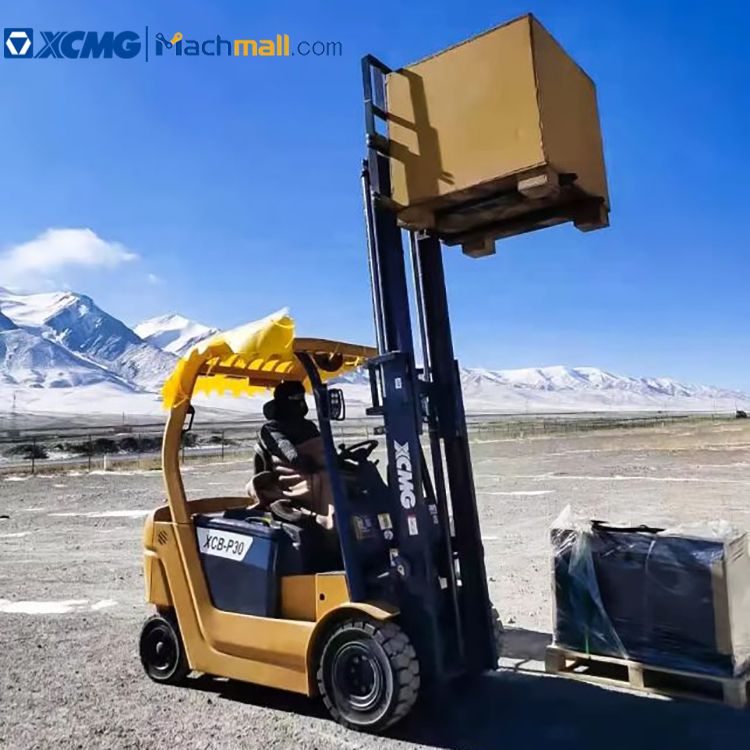

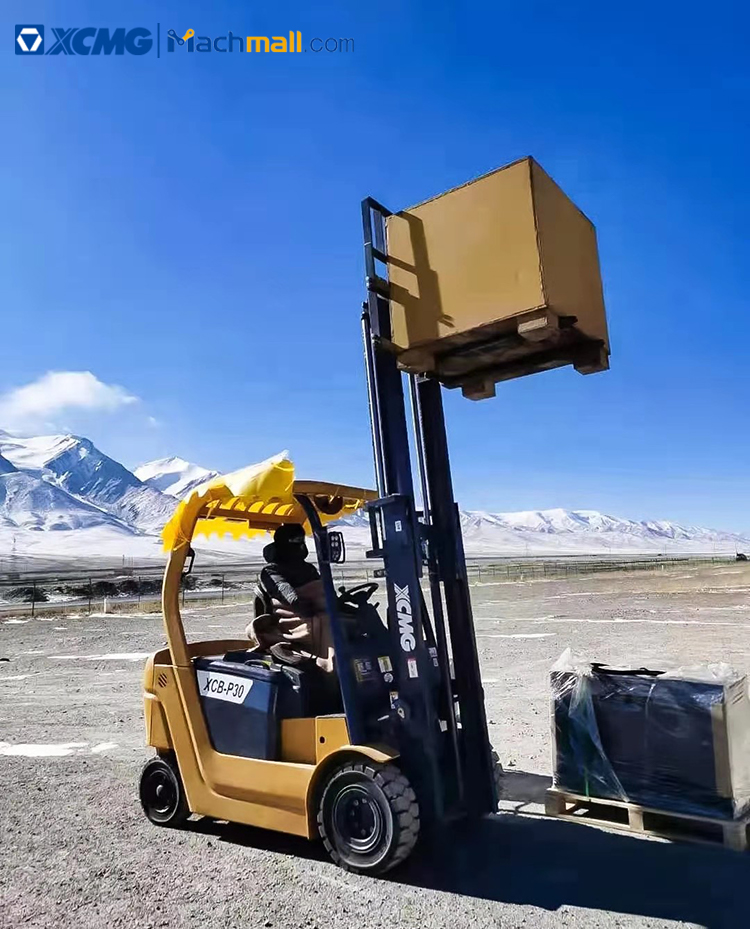

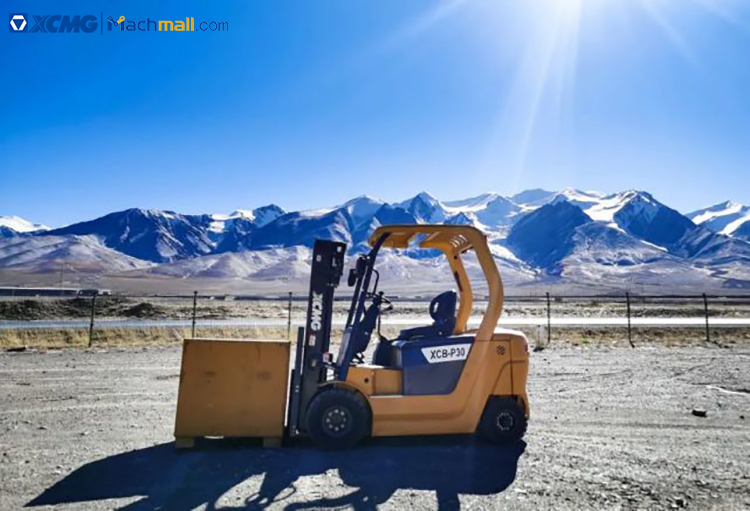

XCMG 3 ton electric forklift 3 - 6m mast height use in cold room has undergone a plateau adaptability test in the extreme cold weather of -25℃. The 30-kilometer driving and 30-hour full-load lifting operations are required to be completed within four days and continuous operations are not interrupted every day, so as to test whether the prototype can meet the requirements for use in plateau areas and other abnormal conditions. After intense testing, XCMG forklifts have successfully completed the task and successfully passed the plateau test.
Advantages and Highlights:
1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficency hydraulic system, lower fuel comsumption.
5, Enhanced wide view mast improves the work efficency and operating safety.
|

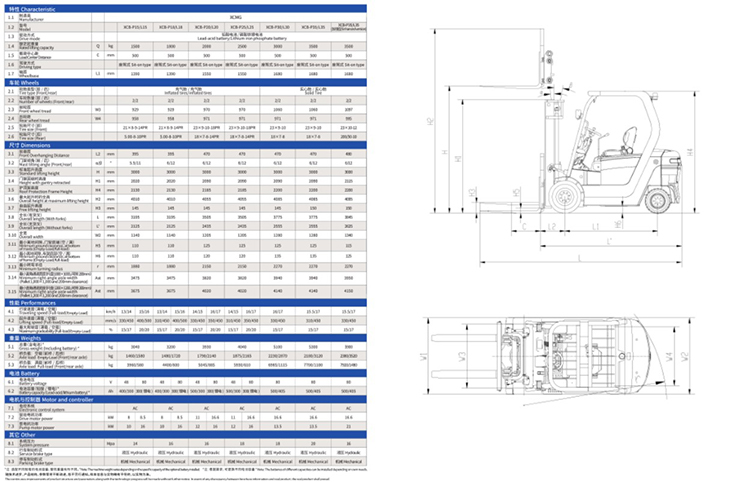

Number |
Parameter |
Unit |
Parameter value |
|
1 |
Model |
|
XCB-P30/L30 |
|
2 |
Power mode |
|
Lead Acid (XCB-P)/Lithium Battery (XCB-L) |
|
3 |
Rated lifting capacity |
kg |
3000 |
|
4 |
Overall quality |
kg |
5010 |
|
5 |
Lifting height |
mm |
3000 |
|
6 |
Free lifting height |
mm |
145 |
|
7 |
Height of mast when retracted |
mm |
2060 |
|
8 |
Maximum travel speed (laden/unladen) |
km/h |
16/17 |
|
9 |
Maximum gradeability (full load/no load) |
% |
15/17 |
