Summary
- Fork Length:1070mm
- Min Lifting Height:100mm
- Max Lifting Height:4m
- Rated Loading Capacity:1500kg
- Model Number:CPD1535
- Brand Name:YANCHA
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

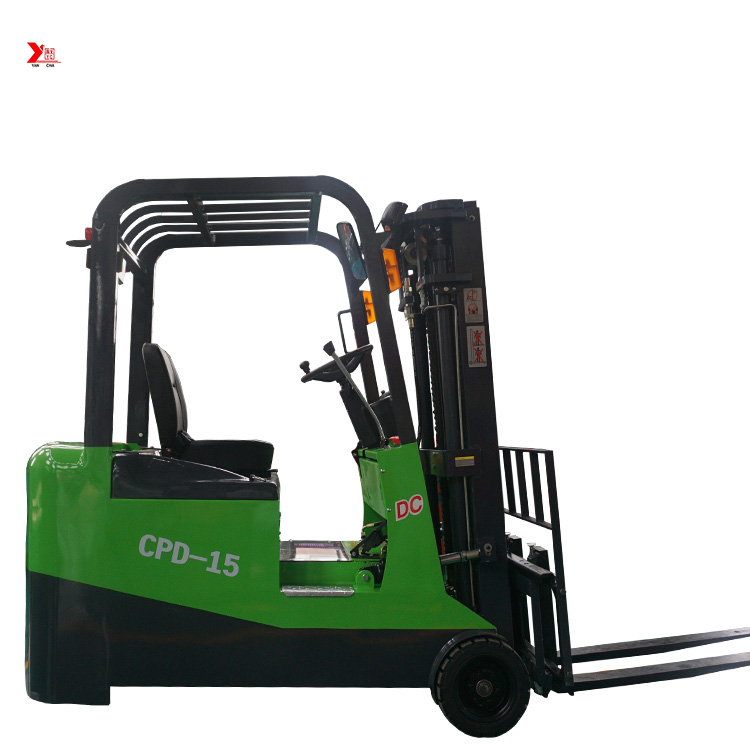

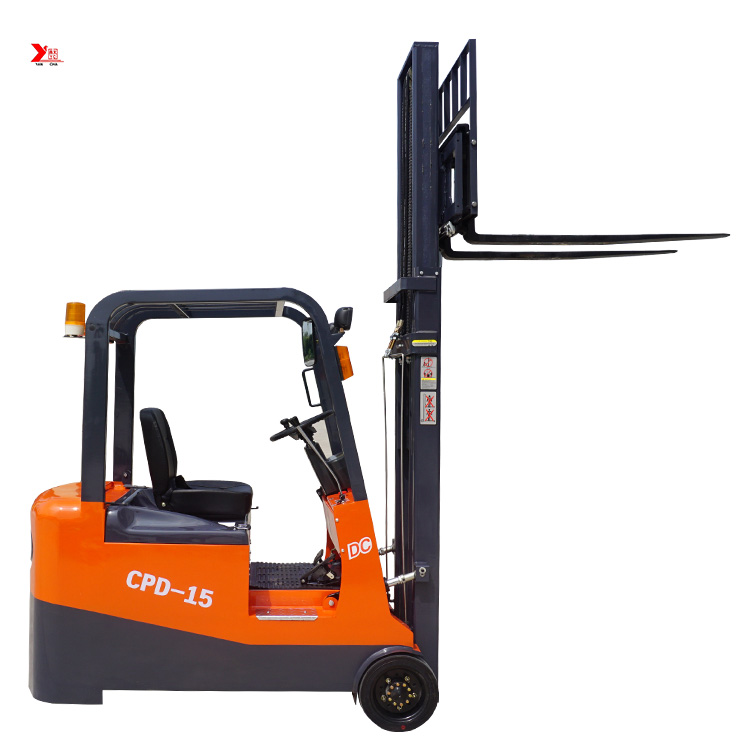

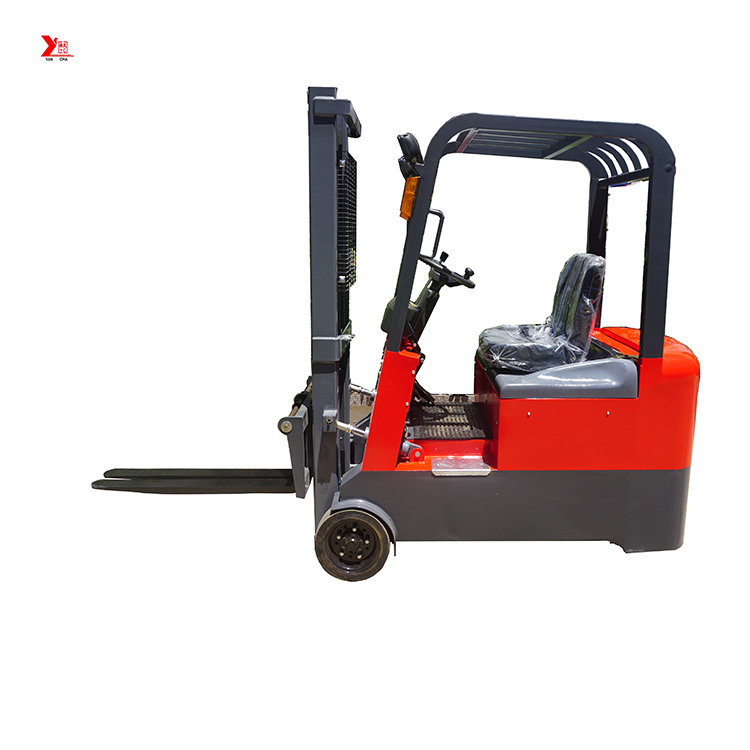

China YANCHA 3 wheel electric forklift 1.5 ton with CE certification.
China YANCHA 3 wheel electric forklift 1.5 ton with CE certification is used for loading, discharging, moving and stacking cargos at harbor, station and enterprise. Forklift with the weight less than 3t can be operated in cabin, carriage and container. It can carry many kinds of cargos by changing attachments, for example, if equipped with bucket, it can move bulk materials etc. Self-propelled forklift appeared in 1917, and developed in World War II. The manufacturing for forklift starts at the beginning of 50s in China.
Features:
1.Adopt special parallel-shaft gears between driving motor and axle, which greatly improve transmission efficiency and reduce noises.
2.Load, discharge, move and stack moderate strength material.
3.With single-double-side plate.
4.It is designed for narrow passway.
5.Safe mode for the switch on the seat.
|
Model Parameter |
Unit |
CPD1030 |
CPD1530 |
CPD2030 |
|
|
Load Capacity |
kg |
1000 |
1500 |
2000 |
|
|
Lift Height |
m |
3000 |
3000 |
3000 |
|
|
Load Center |
mm |
500 |
500 |
500 |
|
|
Fork Length |
mm |
1070 |
1070 |
1070 |
|
|
Lowest height |
mm |
100 |
100 |
100 |
|
|
Manipulation Way |
|
Steering Wheel |
|||
|
Tyres |
|
Solid Tyre |
|||
|
Dimension of Driving Wheel |
|
350*100 |
350*100 |
250*80 |
|
|
Speed at Full Load |
km/h |
8 |
8 |
5 |
|
|
Lifting Speed at full Load |
mm/sec |
80 |
80 |
80 |
|
|
Speed Control Way |
|
Stepless Speed Regulation |
|||
|
Door Frame Tilt Angle |
° |
3~6 |
3~6 |
3~6 |
|
|
Gradient at full Load |
° |
10 |
8 |
8 |
|
|
Battery |
V/Ah |
48/120 |
48/120 |
24/240 |
|
|
Working Time(for reference) |
h |
4 |
3.5 |
3 |
|
|
Driving Motor |
kw |
2.2 |
2.2 |
1.5 |
|
|
Lifting Motor |
kw |
3 |
3 |
3 |
|
|
The Min. Turning Inner Radius |
mm |
1750 |
1800 |
1800 |
|
|
L * W *H Dimension |
mm |
3100*1050*2080 |
3100*1050*2080 |
3100*930*2080 |
|
|
weight |
kg |
1600 |
1700 |
1800 |
|
|
lifting Height at each weight |
mm |
1600/2000/2500/3000/3500 |
|||
|
Height of Door Frame |
mm |
2080/1600/1850/2080/2350 |
|||
