Summary
- Min Lifting Height:3000 mm
- Max Lifting Height:120 mm
- Rated Loading Capacity:3000 kg
- Model Number:XCB-P30
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
Specifications
- Weight:5010.000kg
- Condition:New
- Moving Type:Wheel
- Overall quality:5010 kg
- Lifting height:3000 mm
- Height of mast when retracted:2060 mm
- Maximum travel speed (laden/unladen):16/17 km/h
- Maximum gradeability (full load/no load):15/17 %
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

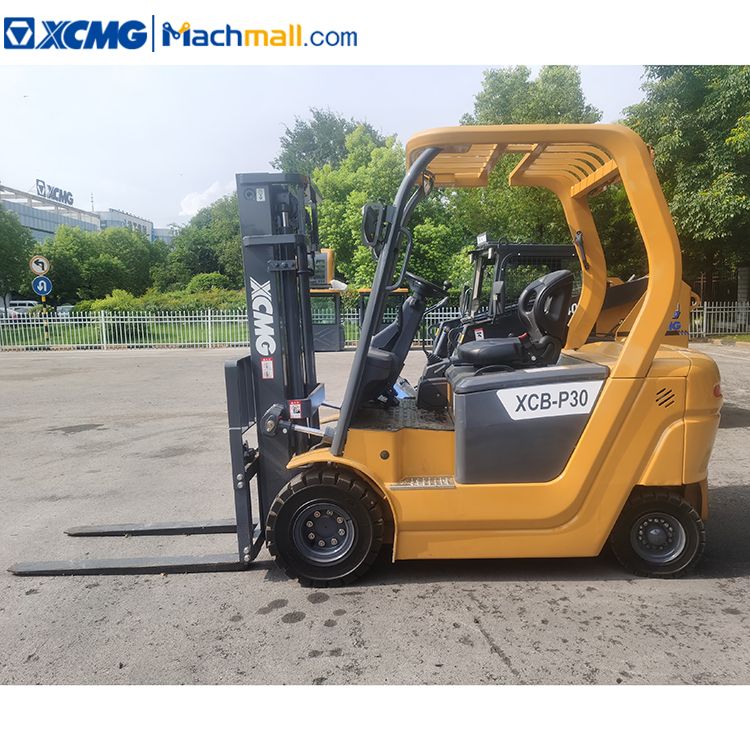

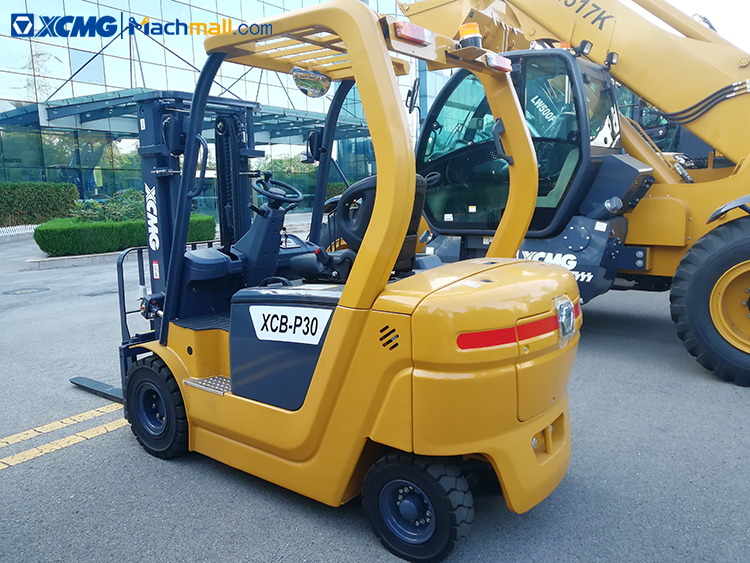

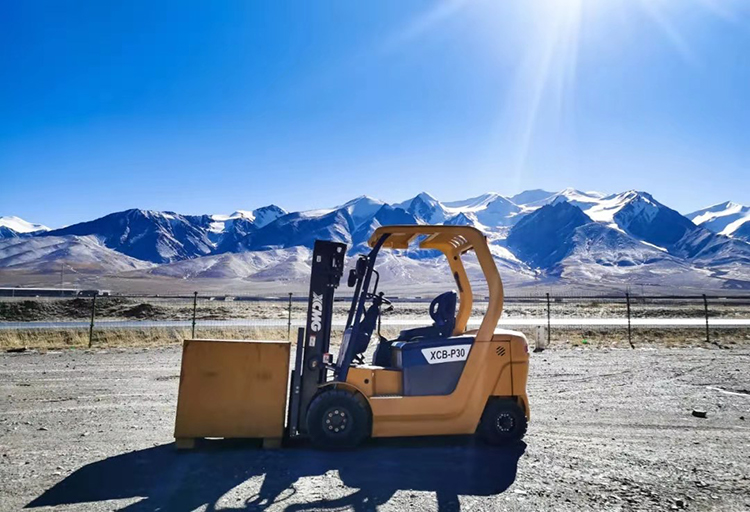

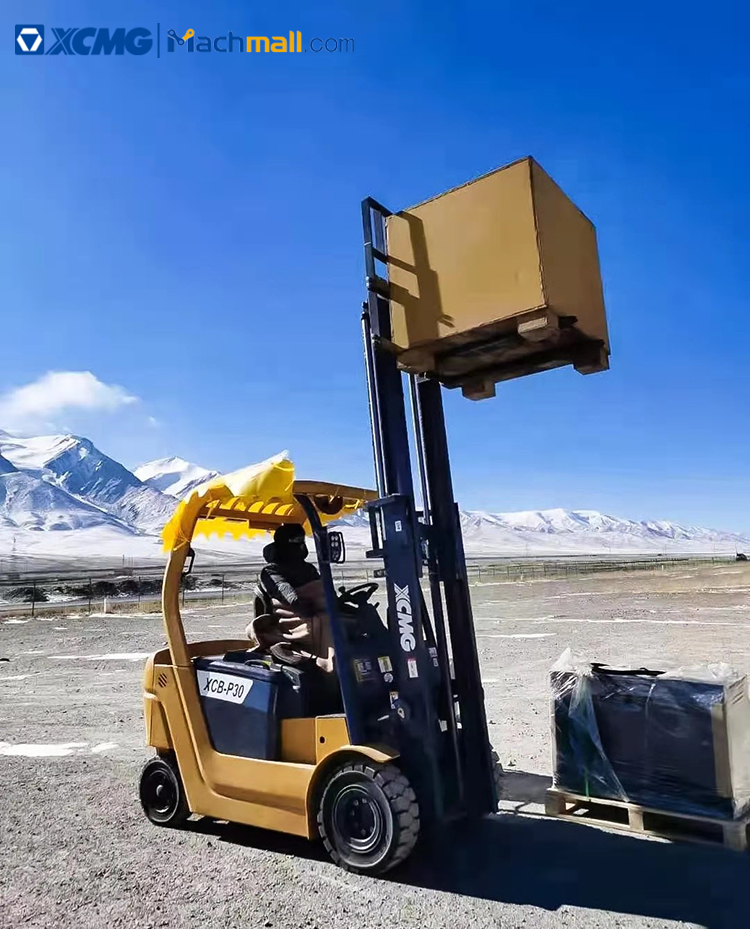

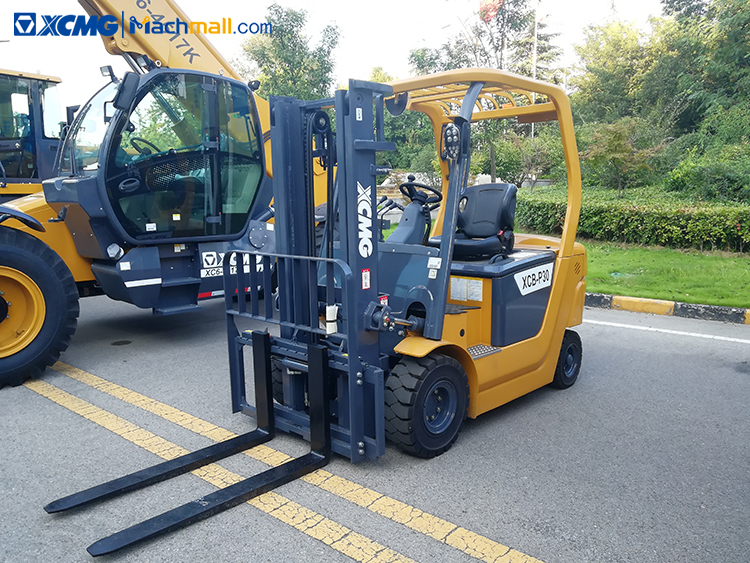

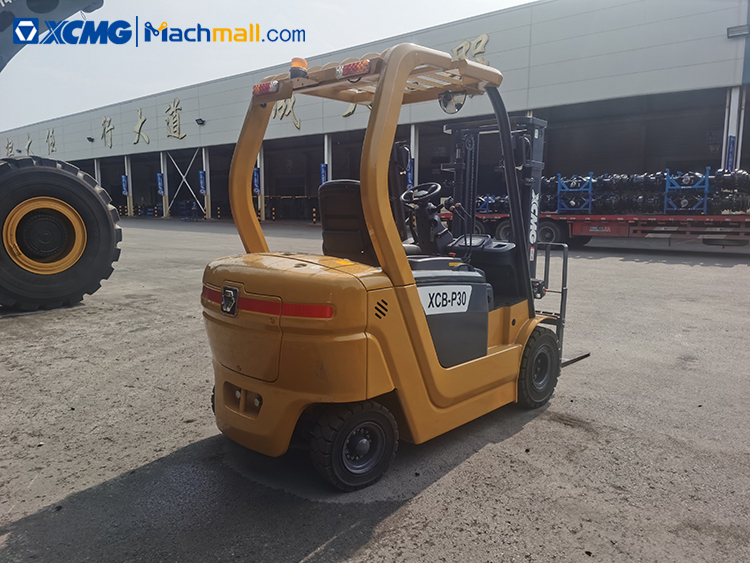

XCMG electric forklift 3 ton counterbalance XCB-P30/L30 with lithium battery.
The XCB-P30 electric counterbalanced forklift has a novel appearance and breaks through the industry's shape. The roof guard and the car body are integrally connected. It has strong performance. It has four speed modes, two lifting modes and a climbing ability comparable to internal combustion forklifts.
Features:
1.Safe and reliable: starting, accelerating, and braking smoothly; hydraulic system adopts double seal; sixth-generation hydraulic cylinder, internal circulation oil circuit, on-load buffer
2.Convenient maintenance: tool-free disassembly of cover parts, larger maintenance space, and more accessible maintenance location.
3.Comfortable operation: dual-degree-of-freedom steering mechanism to create a more comfortable operation experience.
4.Super performance: four speed modes, two lifting modes and climbing ability comparable to internal combustion forklifts.
5.Diversified configurations: with rich product configurations to meet the differentiated needs of customers.
|
Number |
Parameter |
Unit |
Parameter value |
|
1 |
Model |
|
XCB-P30/L30 |
|
2 |
Power mode |
|
Lead Acid (XCB-P)/Lithium Battery (XCB-L) |
|
3 |
Rated lifting capacity |
kg |
3000 |
|
4 |
Overall quality |
kg |
5010 |
|
5 |
Lifting height |
mm |
3000 |
|
6 |
Free lifting height |
mm |
145 |
|
7 |
Height of mast when retracted |
mm |
2060 |
|
8 |
Maximum travel speed (laden/unladen) |
km/h |
16/17 |
|
9 |
Maximum gradeability (full load/no load) |
% |
15/17 |
