Summary
- Fork Width:45mm
- Fork Length:1070mm
- Min Lifting Height:2190mm
- Rated Loading Capacity:3500kg
- Power Source: AC Motor
- Model Number:EFL352
- Brand Name:EP
- Place of Origin:Zhejiang, China
Specifications
- Weight:4560.000kg
- Condition:New
- Moving Type:Other
- Tyre type:Solid rubber
- Steering type:Hydraulic steering
- Lift motor:12kW
- Turning radius:2645mm
- Service weight (include battery):4560kg
- Drive motor:10kW
- Height, mast extended:4110mm
- Battery voltage:80V280Ah
- ceitification:CE
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

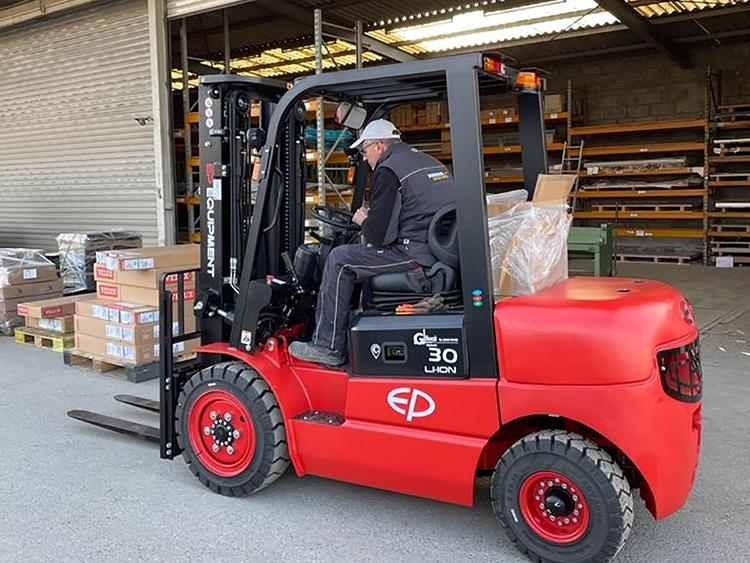

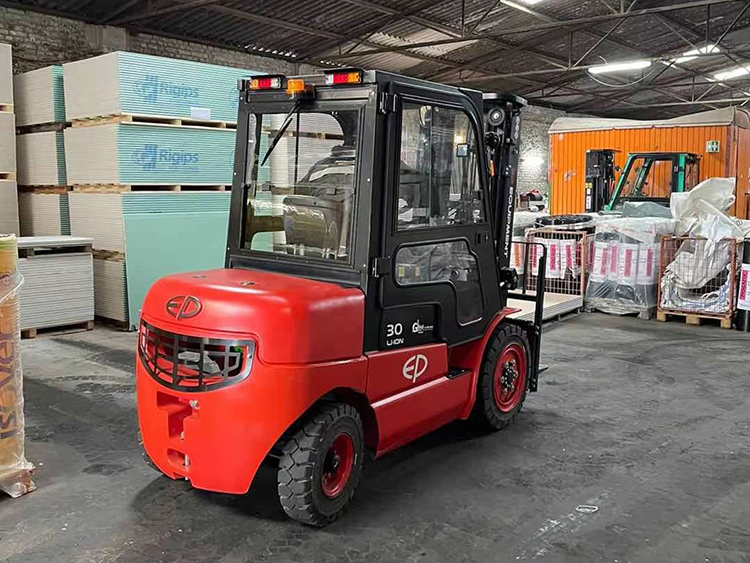

Zhongli EP electric counterbalance forklift EFL352 80V battery.
Zhongli EP electric counterbalance forklift EFL352 80V battery is powered by 80V/280Ah Li-Ion battery while maintain the large operation space of more than 1.1m as diesel truck does. The trucks offer high efficient performance at high intensity shifts, making them perfect for beverage, logistics and construction industries.
Advantages:
EFL352 offers EP’s latest Telematics. It provides the following features to facilitate your feet management:
1.Truck location in real-time
2.Reports of truck usages and diagnosis
3.Li-ion battery condition analytics
4.Updates on card access registration
|
Distinguishing mark |
|
Uint |
Value |
|
Manufacturer |
|
|
EP |
|
Model designation |
|
|
EFL352 |
|
rated capacity |
Q |
kg |
3500 |
|
Load center distance |
c |
mm |
500 |
|
Wheelbase |
y |
mm |
1810 |
|
Self weight (include battery) |
|
kg |
4560 |
|
Dimensions |
|
|
|
|
Height, mast lowered |
h1 |
mm |
2070 |
|
Free lift (load backrest) |
h2 |
mm |
120 |
|
Lift height |
h3 |
mm |
3000 |
|
Height, mast extended |
h4 |
mm |
4110 |
|
Height of overhead guard (cabin) |
h6 |
mm |
2190 |
|
Fork dimensions |
|
mm |
45X122X1070 |
|
Overall length |
l1 |
mm |
3940 |
|
Overall width |
b1/ b2 |
mm |
1230 |
|
Turning radius |
Wa |
mm |
2645 |
|
performance data |
|
|
|
|
Travel speed, laden/ unladen |
|
km/h |
44512 |
|
Lifting speed,laden/unladen |
|
m/s |
0.26/ 0.34 |
|
Lowering speed,laden/unladen |
|
m/s |
0.4/ 0.43 |
|
Electric-engine |
|
|
|
|
Drive motor rating S2 60 min |
|
kw |
10 |
|
Lift motor rating at S3 15% |
|
kw |
12 |
|
Battery voltage/nominal capacity K5 |
|
V/Ah |
80V/280Ah |
|
The maximum allowed size battery |
|
|
731X 608X 326mm |
