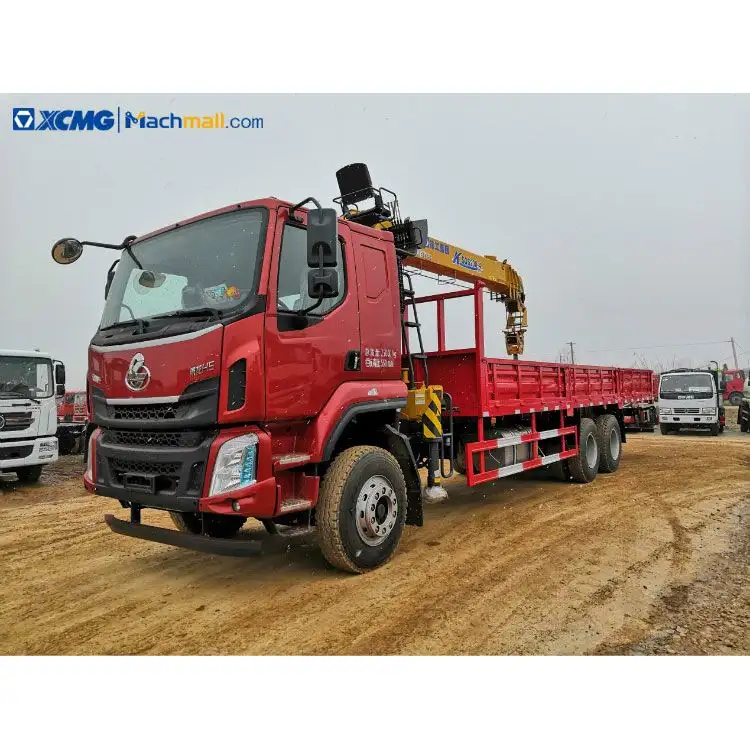

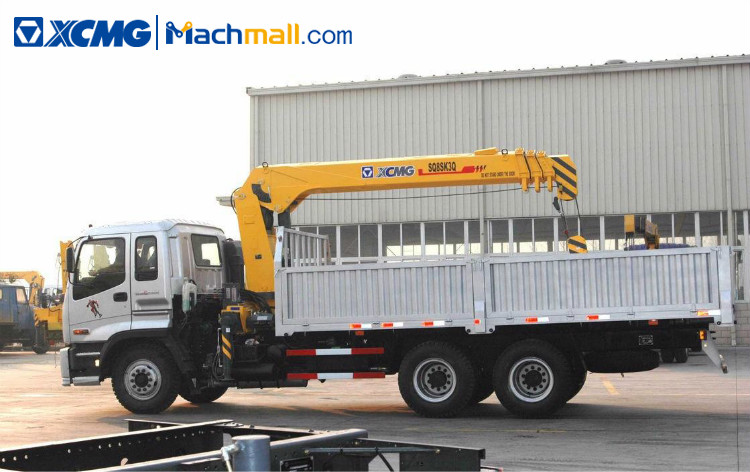

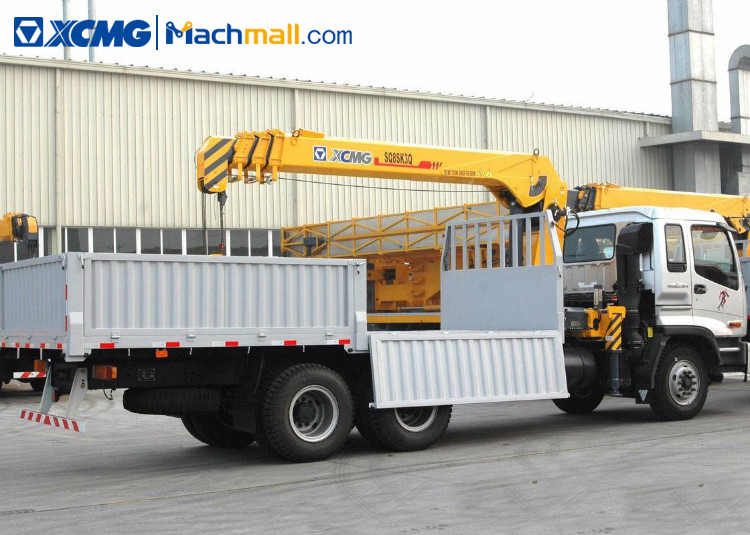

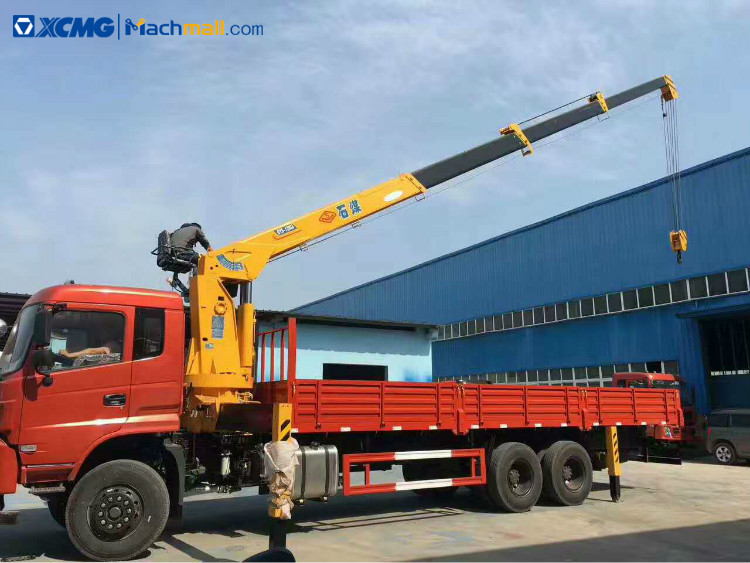

XCMG 8 tons 6 wheels dump truck with crane for sale
Summary
- Model Number:SQ8SK3Q
- Brand Name:XCMG
- Place of Origin:XUZHOU,CHINA
- Max. Lifting Height:13.2m
- Max. Lifting Load:8ton
Specifications
- Weight:3300.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 8 tons 6 wheels dump truck with crane.
1, Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.
2, End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.
3, Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.
4, Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.
5, Dual pump converging
The hydraulic system adopts dual high pressure gear pump, multi-way valve hoisting joint to realize the converging, to improve the speed of winch, at the same time, it can realize the compound action of dump truck with crane.
|
Model |
XCMG SQ8SK3Q |
Unit |
|
||
|
Max Lifting Capacity |
8000 |
|
|
kg |
|
|
Max Lifting Moment |
20 |
|
|
T.M |
|
|
Recommend Power |
28 |
|
|
kw |
|
|
Max Oil Flow of Hydraulic System |
55 |
|
|
L/min |
|
|
Max Pressure of Hydraulic System |
27 |
|
|
MPa |
|
|
Oil Tank Capacity |
160 |
|
|
L |
|
|
Rotation Angle |
All Rotation |
|
|
|
|
|
Crane Weight |
3300 |
|
|
kg |
|
|
Installation Space |
1200 |
|
|
mm |
|
|
SQ8SK3Q Lifting capability diagram |
|
|
|
|
|
|
Working radius (m) |
2.5 |
4.5 |
7 |
9 |
11.5 |
|
Lifting capacity (kg) |
8000 |
4400 |
2500 |
1750 |
1100 |
