Summary
- Max Lifting Height:5 m
- Rated Loading Capacity:18000 kg
- Model Number:XLF180
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
Specifications
- Weight:21450.000kg
- Condition:New
- Moving Type:Other
- Overall length:6795 mm
- Min. mast height:4190 mm
- Cab height:3380 mm
- Wheelbase:3750 mm
- Min. turning radius:5100 mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

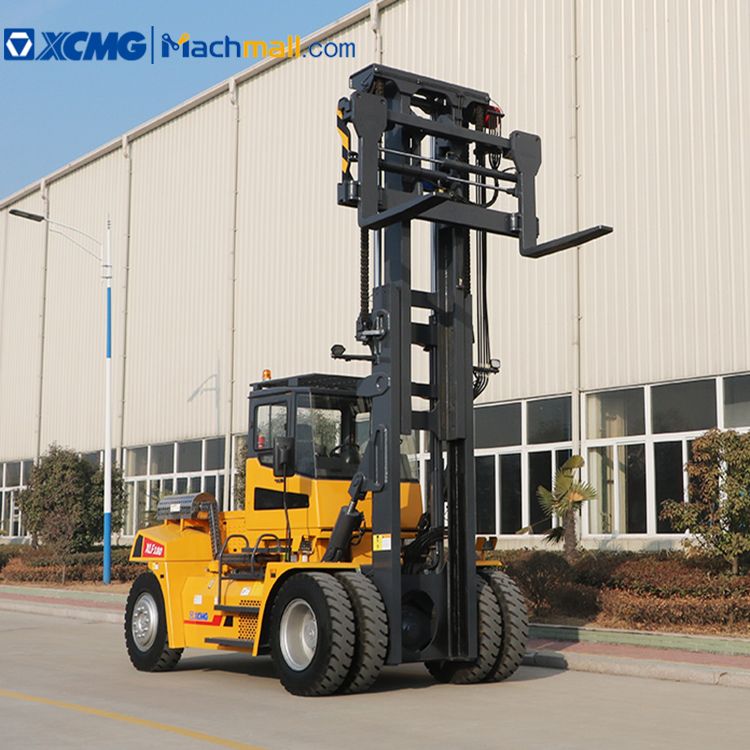

XCMG diesel forklift XLF180 6635mm mast height for warehouse.
XCMG diesel forklift XLF180 6635mm mast height for warehouse is a special equipment for material handling and stacking, with a maximum lifting capacity of 18t and a maximum lifting height of 5m. XCMG diesel forklift XLF180 6635mm mast height for warehouse is flexible and efficient, and can be widely used in warehousing, logistics and other fields.
Main highlights:
1.The whole machine has a compact structure, small dimensions, a turning radius of only 5.1m, and good site adaptability.
2.Proprietary flow sharing, one-key positioning of forks (optional), micro-motion control and other core technologies, fast operation speed, good micro-movement and high efficiency.
3.Learn from years of crane research and development experience, improve and upgrade the control system of industry products to maximize active protection.
4.The industry's top configuration, professional matching optimization and systematic evaluation and testing, effectively guarantee the reliability of the product.
5.Drawing lessons from years of wheeled crane optimization and lightweight design technology, the whole machine is light in weight and low in fuel consumption.
6.Proprietary mast potential energy recovery technology, saving operation fuel consumption by 20% (optional).
7.Professional modeling design and ergonomic simulation analysis, reasonable arrangement of various climbing and maintenance channels and control parts position, to achieve the perfect combination of functionality and aesthetics, the whole machine is beautiful in appearance and easy to use.
|
Project |
Unit |
Parameters |
|
Model |
|
XLF180 |
|
Rated lifting capacity |
kg |
18000 |
|
Overall length |
mm |
6795 |
|
Width(wheel) |
mm |
2590 |
|
Width (frame) |
mm |
2590 |
|
Min. mast height |
mm |
4190 |
|
Cab height |
mm |
3380 |
|
Max. mast height |
mm |
6635 |
|
Wheelbase |
mm |
3750 |
|
Front overhang |
mm |
978 |
|
Track(front) |
mm |
1857 |
|
Track(rear) |
mm |
2011 |
|
Under mast(unloaded/rated load) |
mm |
260/250 |
|
Middle of truck(unloaded/rated load) |
mm |
340/350 |
|
Max. lifting height |
mm |
5000 |
|
Height under twist lock |
mm |
100 |
|
Service weight |
kg |
21450 |
|
Max. lifting speed(unloaded) |
mm/s |
450 |
|
Max.lifting speed(rated load) |
mm/s |
400 |
|
Min. turning radius |
mm |
5100 |
|
Travelling speed (unloaded) |
km/h |
32 |
|
Travelling speed (rated load) |
km/h |
30 |
|
Max. grade-ability |
％ |
21 |
|
Max. drawbar pull(rated load) |
kN |
120 |
