Specifications
- Weight:26000.000kg
- Condition:New
- Moving Type:Wheel
- Tire:12.00R20
- Fuel tanker capacity :400L
- Wheel base :3800+1450 mm
- Fuel type:Diesel EUROⅡ
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

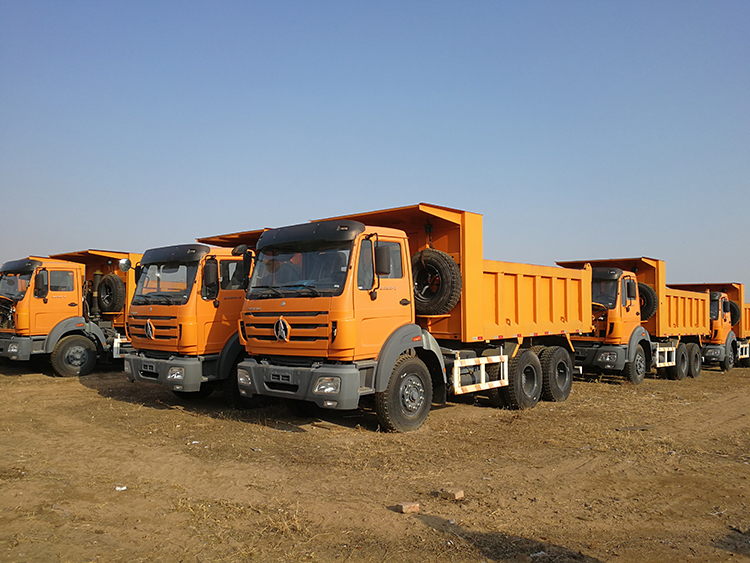

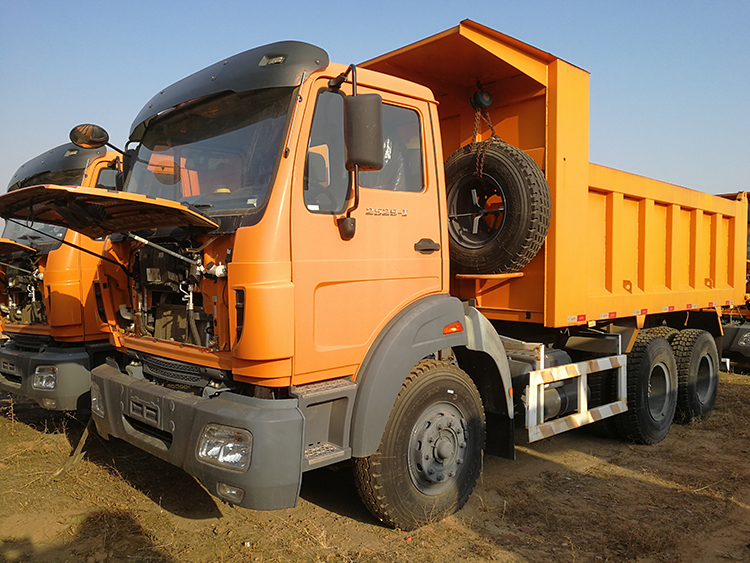

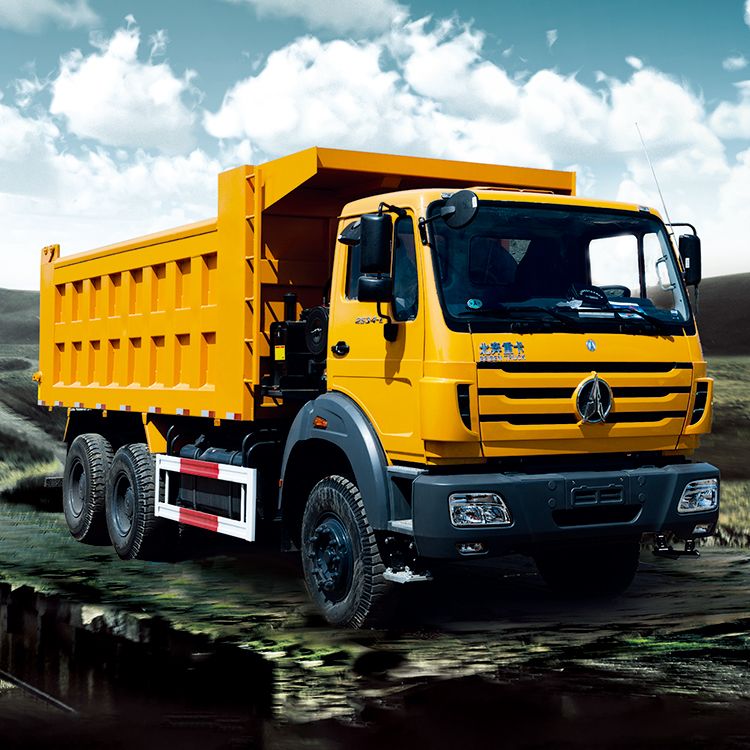

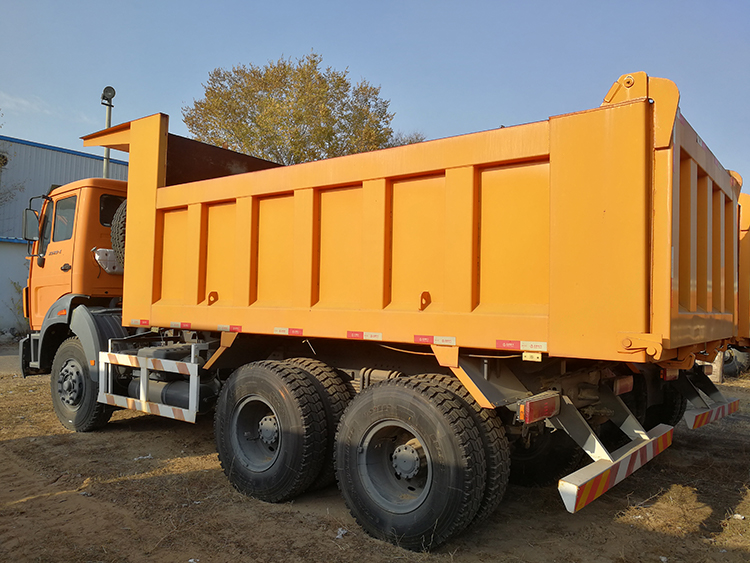

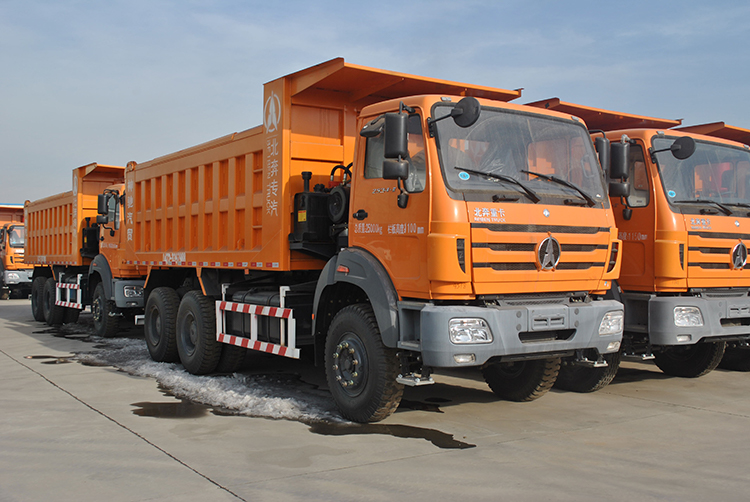

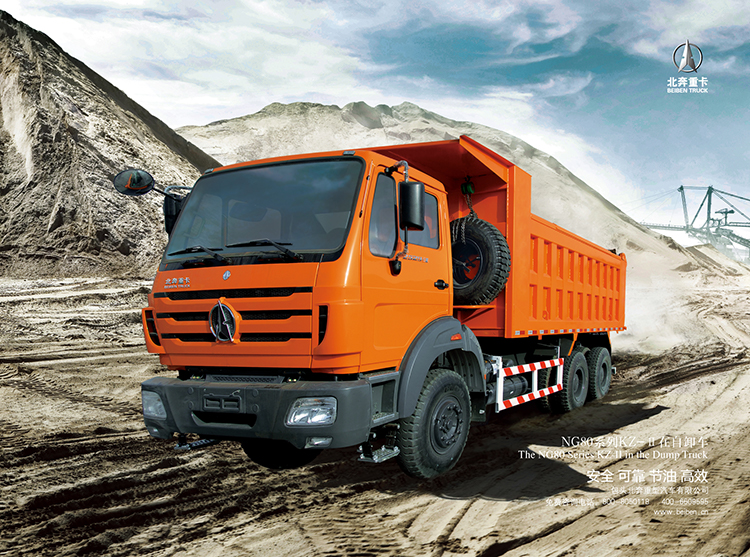

BEIBEN diesel dump truck 2638KZ 380HP with Benz technology.
NG80-KZ-II: The cab adopts Beiben NG80B cab, which is beautiful in appearance and adopts metal frame + skin structure.
It has the same level of safety in Europe and meets the requirements of European ECER29 safety regulations; the frame is once stamped and formed, and the beam strength The axle is high, Beiben axle is selected. Mercedes-Benz axle technology improves vehicle reliability, fuel-saving, and high attendance.
The BEIBEN diesel dump truck 2638KZ 380HP with Benz technology with reinforced structure is suitable for the transportation of heavy goods under harsh conditions such as mines.
The main products of the company include 2 series of truck axles and bus axles,8 platforms and over 120 varieties.The Company in strict accordance with ISO9001-2008 system for quality control,relying on advanced CNC processing equipment and digital assembly method to ensure the quality of the product.For the reliability of the products,our company material and parts supply standard strictly enforced DBL standard in Germany.
|
Wheel base (mm) |
3800+1450 |
|||
|
Engine(WEICHAI) |
Model |
WP10.380E32，water-cooled，four strokes，6 cylinders straight in line，turbocharged,
|
||
|
Fuel type |
Diesel EUROⅡ |
|||
|
Power |
380HP |
|||
|
Fuel tanker capacity （L） |
400L |
|||
|
Clutch |
Model |
Φ430, Diaphragm Spring，Hydraulic boosting 430 |
||
|
Gearbox |
Model |
9JS150A+QH50 |
||
|
Brake system |
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
||
|
Assistant brake
|
Engine exhaust brake |
|||
|
Park brake
|
Potential springs pressing on middle and rear wheels |
|||
|
Steering system |
Model |
8098 Hydraulic boosting |
||
|
Suspension system
|
Front Suspension
|
Non-free standing leaf spring，telescopic shock absorber with stabilizer bar suspension |
||
|
Rear Suspension
|
Non-free standing stabilization spring， stabilization suspension
|
|||
|
Frame (Benz Technology) |
Fish belly shape, variable width, variable sections
|
|||
|
Cross section dimension of frame（mm）
|
317×70×8.5+7+8mm |
|||
|
Front axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake,7.5tons non-driving steering axle
|
|||
|
Middle and Rear axle (Mercedes Benz Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio 5.263
|
|||
|
Tire |
12.00R20 |
|||
|
Electrical system |
Battery |
2X12V/135Ah |
||
|
Generator |
28V-35A |
|||
|
Starter |
5.4Kw/24V |
|||
|
Cab |
NG80B short flat cab with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; NG80B |
|||
|
Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio, high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C。
|
||||
|
Upper body dimension
|
5600*2300*1200mm |
|||
