Summary
- Max Digging Radius:6130mm
- Maximum Digging Depth:3830mm
- Maximum Digging Height:5630mm
- Bucket capacity:0.25m³
- Operating Weight:6150kg
- Model Number:XE65DA
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:6150.000kg
- Condition:New
- Moving Type:Crawler
- Bucket digging power:48.3/32.5kN
- Max. digging height:5630mm
- Max. digging depth:3830mm
- Max. digging radius:6130mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

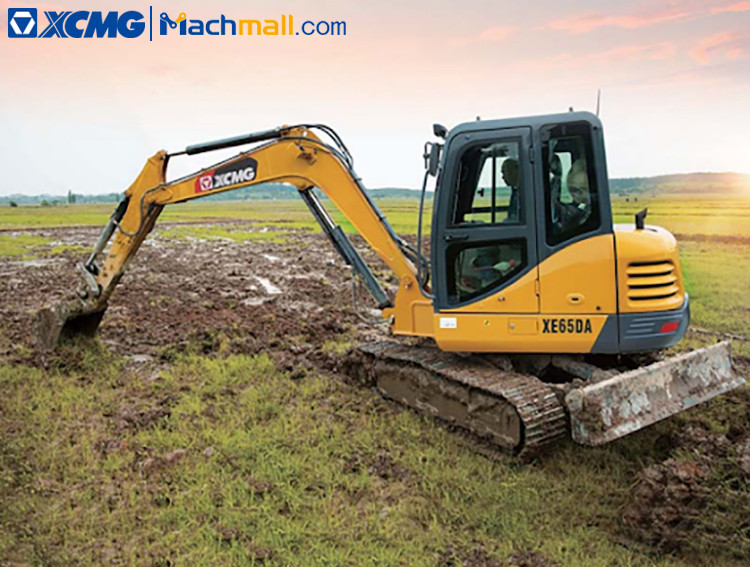

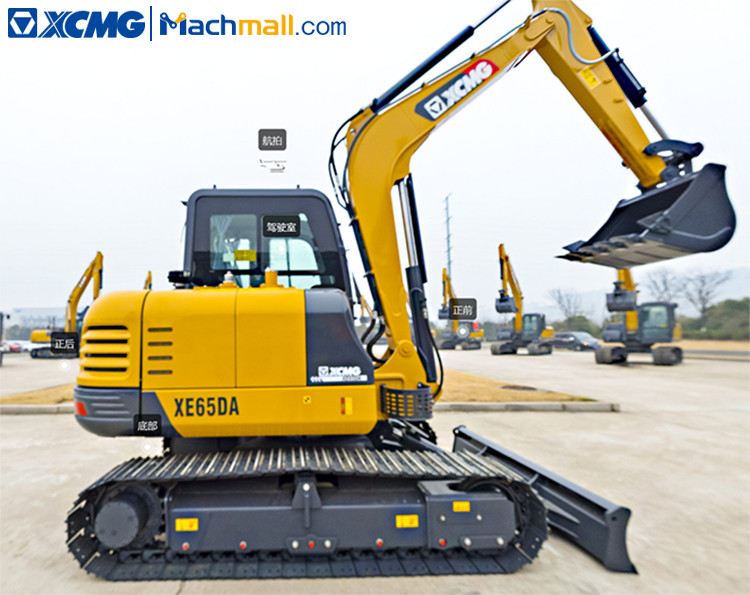

XCMG crawler excavator XE65DA 6.5 ton excavator.
XCMG crawler excavator XE65DA can not only quickly dig trenches, but also can replace the crushing hammer, crushing work.XCMG crawler excavator XE65DA can be replaced with different appliances to adapt to different conditions, saving manpower and equipment costs.
Selling point:
1.Enlarging and widening the chassis, the solid chassis makes the excavation more stable and the lifting operation easier.
2.Bulldozing shovel with standard hydraulic lock, long time operation can not drop the shovel, high safety.
3.Higher efficiency and large capacity bucket, new optimization of bucket shape, more efficient unloading.
4.Automatic idle function automatically reduces engine speed during operating wait.
|
Sales model |
|
Unit |
XE65DA |
|
Operating weight |
|
Kg |
6150 |
|
Bucket capacity |
|
m³ |
0.25 |
|
Engine |
Model |
/ |
4TNV94L |
|
|
No. of cylinders |
/ |
4 |
|
|
Rated power |
kw/rpm |
36.2/2100 |
|
|
Displacement |
L |
3.054 |
|
Main performance |
Travel speed |
km/h |
4.2/2.4 |
|
|
Swing speed |
r/min |
10 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
32.1 |
|
|
Bucket digging force |
kN |
48.3 |
|
|
Arm digging force |
kN |
32.5 |
|
|
Maximum tractive force |
kN |
52 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
160 |
|
|
Main safety valve pressure |
MPa |
24.5 |
|
|
Travel system pressure |
MPa |
24.5 |
|
|
Swing system pressure |
MPa |
24 |
|
|
Pilot system pressure |
MPa |
3.5 |
|
Oil Capacity |
Fuel tank capacity |
L |
110 |
|
|
Hydraulic tank capacity |
L |
85 |
|
|
Engine oil capacity |
L |
12 |
|
Appearance size |
A Overall length |
mm |
5860 |
|
|
B Overall width |
mm |
2040 |
|
|
C Overall height |
mm |
2585 |
|
|
D Width of platform |
mm |
1780 |
|
|
F Overall width of chassis |
mm |
2040 |
|
|
G Track width |
mm |
400 |
|
|
I Track gauge |
mm |
1600 |
|
|
J Counterweight clearance |
mm |
700 |
|
|
K Min. ground clearance |
mm |
385 |
|
Working scope |
A Max. digging height |
mm |
5630 |
|
|
B Max. dumping height |
mm |
3945 |
|
|
C Max. digging depth |
mm |
3830 |
|
|
F Max. digging radius |
mm |
6130 |
|
|
G Min. swing radius |
mm |
1670 |
