Summary
- Dimension(Long * Breadth * High):5262×4150×3074 mm
- Machine Weight:18400 kg
- Model Number:HD16S
- Brand Name:HAITUI
- Place of Origin:Jining, Shandong
- Certification:ISO9001
Specifications
- weight:18400.000kg
- Condition:New
- Moving Type:Crawler
- Displacement:9.726L
- Digging depth:485 mm
- Blade width:4150 mm
- Blade height:960 mm
- Ground pressure:0.028 Mpa
- Operating weight:18.4 ton
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

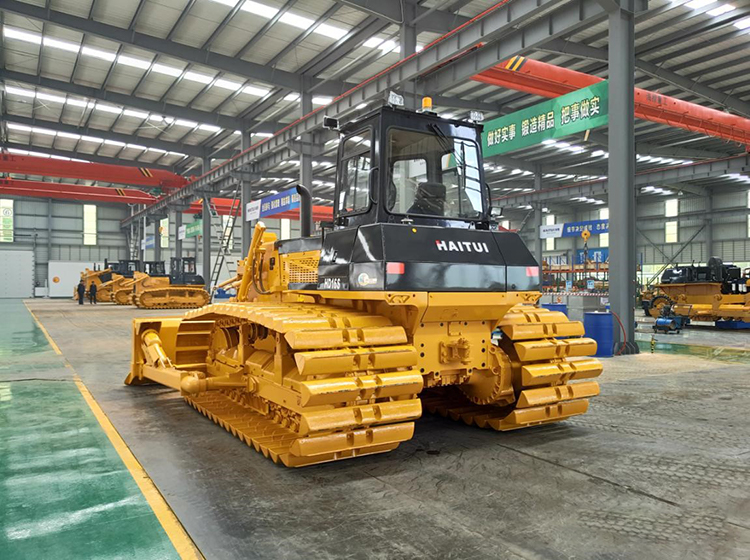

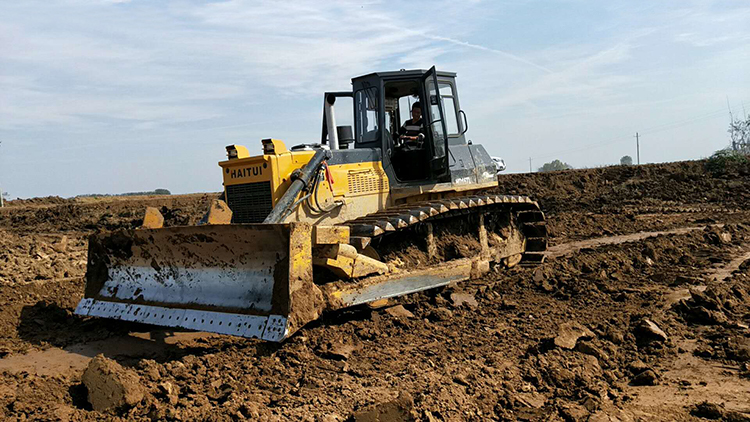

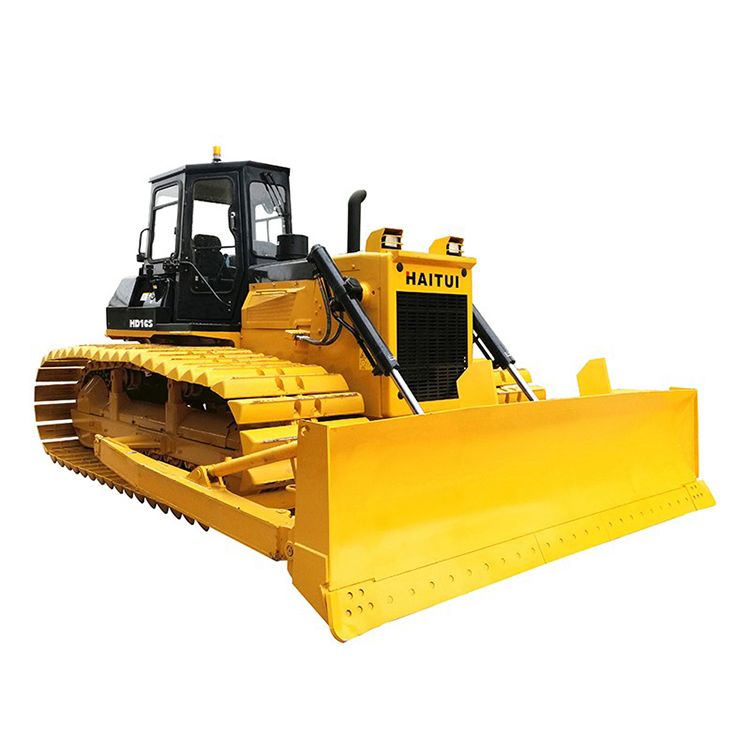

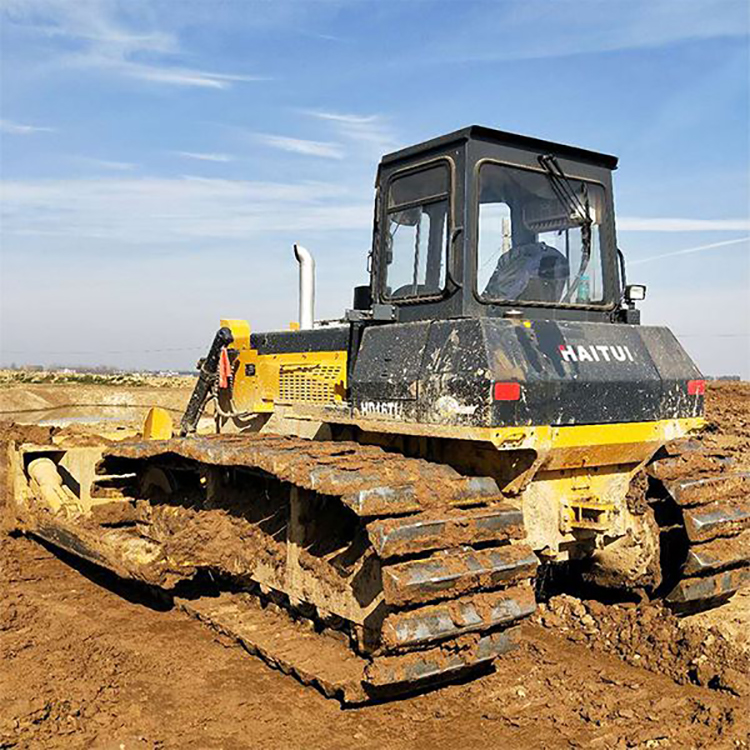

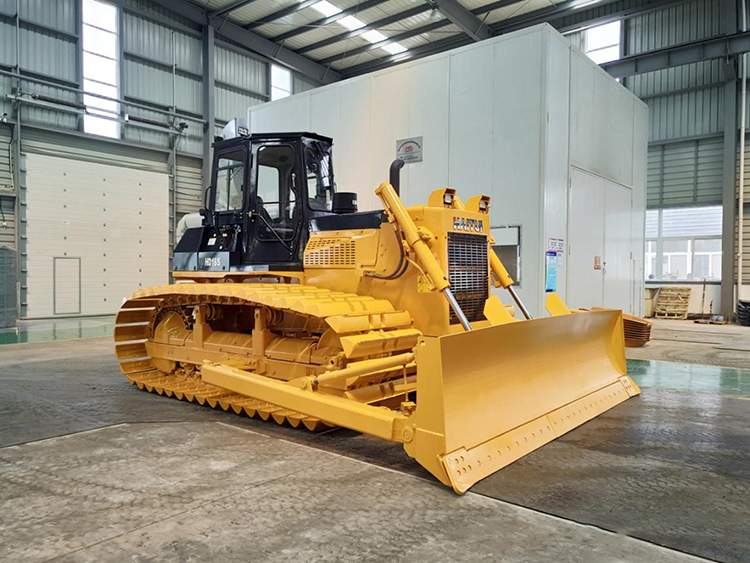

China HAITUI new crawler dozer hydraulic HD16S for swamp wetlands.
China HAITUI new crawler dozer hydraulic HD16S for swamp wetlands is developed according to the needs of construction works in marshland and wetland conditions. It is suitable for construction work in soft soil, wetland and marsh area. It is an indispensable equipment for water conservancy construction.
Advantages:
1.A Weichai WD10G178E25 engine which can gives you more power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.
2.The closed system keeps the tank pressure at a specific value, which can increase the evaporation temperature and heat dissipation efficiency of the cooling water. The fan power comes from the engine, and the forced air supply increases the cooling effect.
3.The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.
4.The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling system to transmit the working load and impact load to the main frame during working, which effectively improves the stability of small-sized bulldozers under complicated working conditions.
Model |
Unit |
HD16S |
Type |
|
160HP Hydraulic Swamp Crawler Type |
Engine model |
|
Weichai WD10G178E25 |
Displacement |
L |
9.726 |
Rated power |
kw/rpm |
131/1850 |
Max.torque |
N.m/rpm |
830/1000-1200 |
Operating weight |
T |
18.4 |
Dimension(no ripper) |
mm |
5262×4150×3074 |
Grounding Length |
mm |
2935 |
Ground pressure |
Mpa |
0.028 |
Track gauge |
mm |
2300 |
Dozing capacity |
m³ |
3.8 |
Blade width |
mm |
4150 |
Blade height |
mm |
960 |
Digging depth |
mm |
485 |
Track shoe width |
mm |
950(optional 1100) |
Pitch |
mm |
203 |
Quantity of track link |
|
42 |
Quantity of Carrier rollers |
|
4 |
Quantity of Track rollers |
|
14 |
Blade lifting height |
mm |
1005 |
Forward Speed |
Km/h |
F1:0-3.29 |
F2:0-5.82 |
||
F3:0-9.63 |
||
Rear Speed |
Km/h |
R1:0-4.28 |
R2:0-7.59 |
||
R3:0-12.53 |
