Summary
- Dimension(Long * Breadth * High):5140×3388×3032
- Machine Weight:17000 kg
- Model Number:HD16
- Brand Name:HAITUI
- Place of Origin:Jining,Shandong
- Certification:ISO9001
Specifications
- weight:17000.000kg
- Condition:New
- Moving Type:Crawler
- Dozing capacity:4.55 m³
- Max tractor force:146 KN
- Max pressure:14 MPa
- Blade width:3390 mm
- Blade height:1150 mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

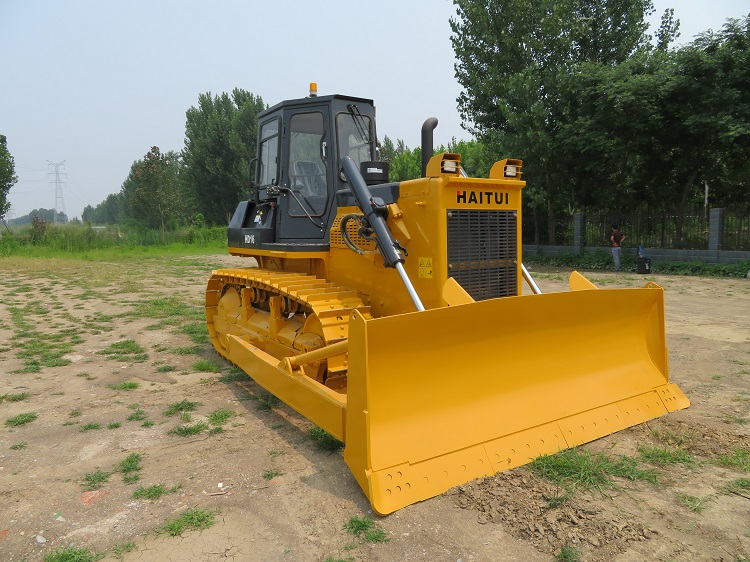

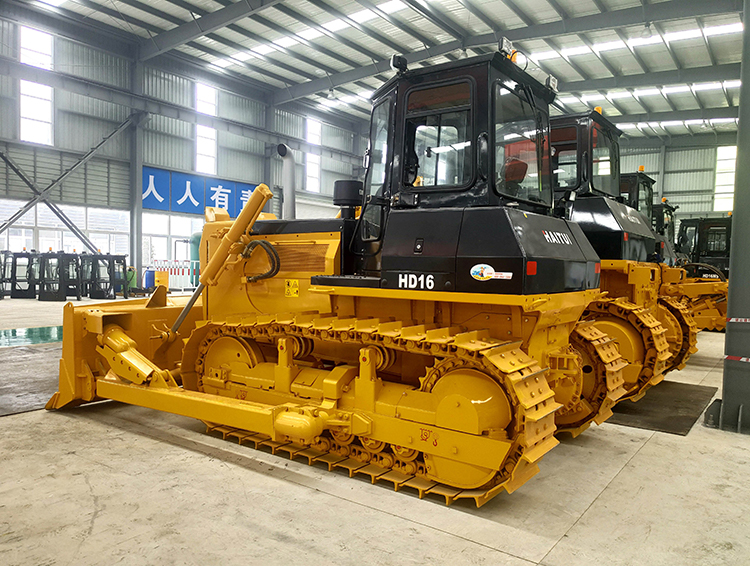

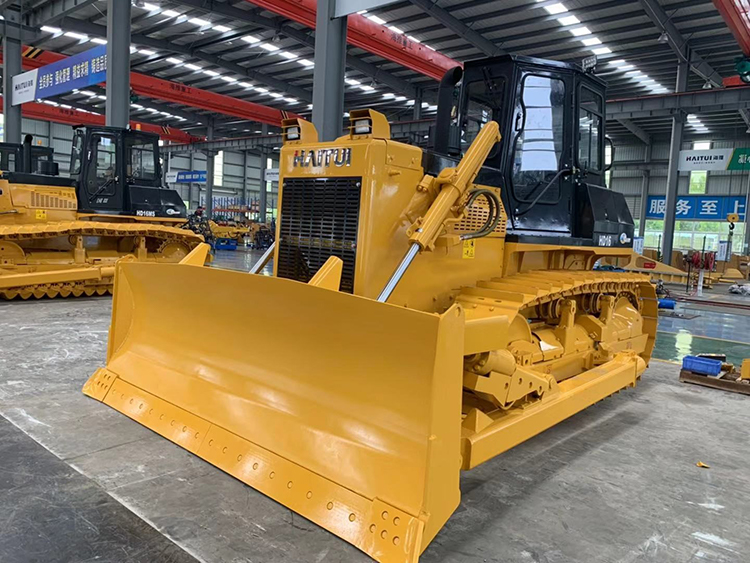

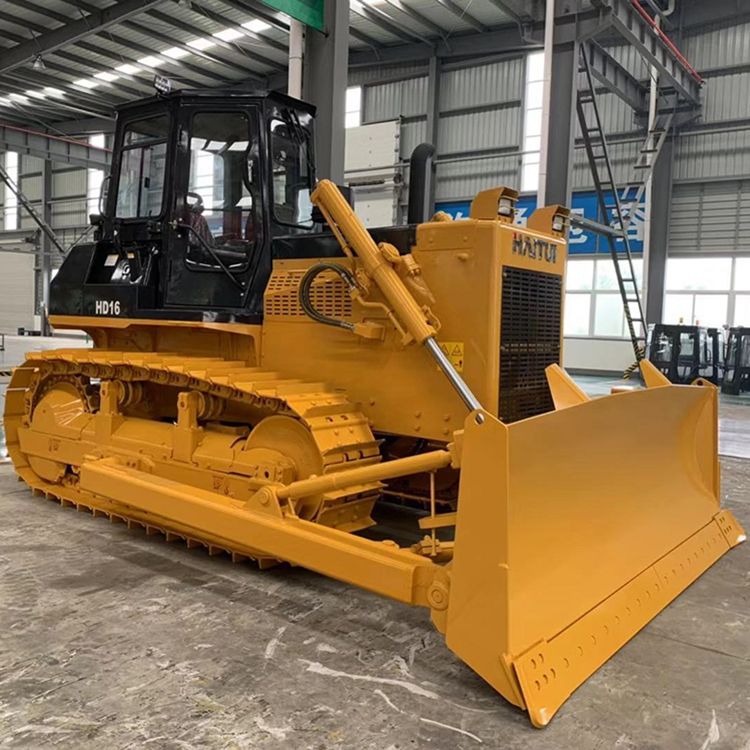

China HAITUI crawler bulldozer HD16 160HP for dry land.
China HAITUI crawler bulldozer HD16 160HP for dry land has the features of high technology, advanced design,strong power and high efficiency, etc. It can adapt to more harsh working environment and is convenient for maintenance and repair.
It is mainly applied to the push, excavation, backfilling earthwork and other bulk materials operations of roads, railways, mines, airports, etc. It is an indispensable mechanical equipment for national defense engineering, mine construction, urban and rural road construction and water conservancy construction.
Features:
1.A Weichai WD10G178E25 engine which gives you more power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.
2.The gearbox uses a planetary gear structure that operates the hydraulic control valve to achieve forward, reverse and various shifts. The structure is planetary gear, multi-plate clutch, hydraulic combined with forced lubrication, which is divided into three forward and three reverse.
3.The closed system keeps the tank pressure at a specific value, which can increase the evaporation temperature and heat dissipation efficiency of the cooling water. The fan power comes from the engine, and the forced air supply increases the cooling effect.
4.The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force.
Model |
Unit |
HD16 |
Type |
|
160HP Standard Hydraulic Crawler Type |
Engine model |
|
Weichai WD10G178E25 |
Displacement |
L |
9.726 |
Rated power |
kw/rpm |
131/1850 |
Max.torque |
N.m/rpm |
830/1000-1200 |
Operating weight |
T |
17 |
Dimension(no ripper) |
mm |
5140×3388×3032 |
Min ground clearance |
mm |
405 |
Ground pressure |
Mpa |
0.067 |
Track gauge |
mm |
1880 |
Dozing capacity |
m³ |
4.55 |
Blade width |
mm |
3390 |
Blade height |
mm |
1150 |
Max drop below ground |
mm |
540 |
Track shoe width |
mm |
510 |
Pitch |
mm |
203.2 |
Quantity of track link |
|
37 |
Quantity of Carrier rollers |
|
4 |
Quantity of Track rollers |
|
12(8 Double+4 Single) |
Max pressure |
MPa |
14 |
Discharge |
L/min |
213 |
Max tractor force |
KN |
146 |
Grade ability |
|
30° |
Forward Speed |
Km/h |
F1:0-3.29 |
F2:0-5.82 |
||
F3:0-9.63 |
||
Rear Speed |
Km/h |
R1:0-4.28 |
R2:0-7.59 |
||
R3:0-12.53 |
