Summary
- Model Number:QY25KC
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:47m
- Max. Lifting Load:25 ton
Specifications
- Weight:29400.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

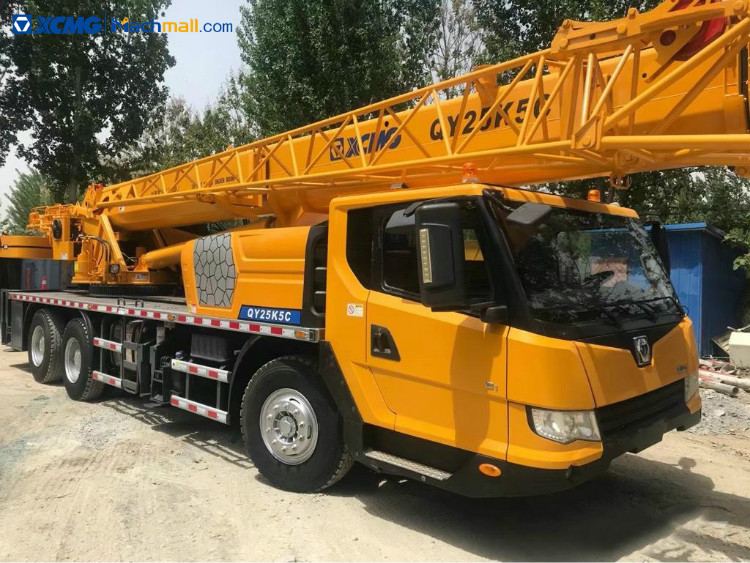

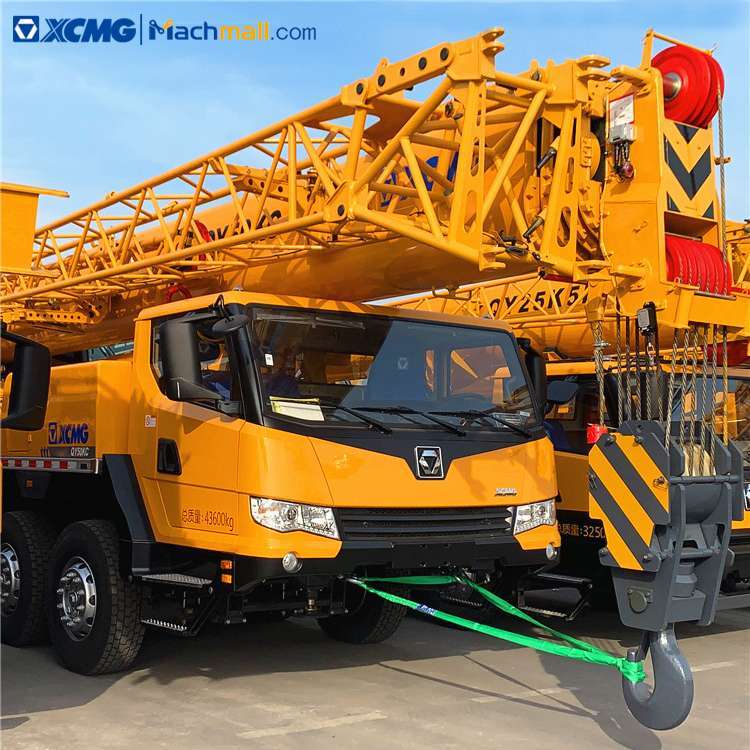

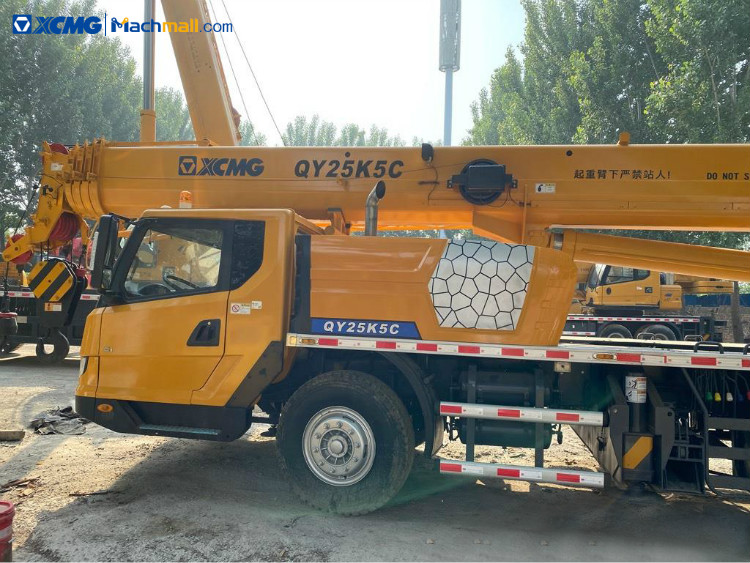

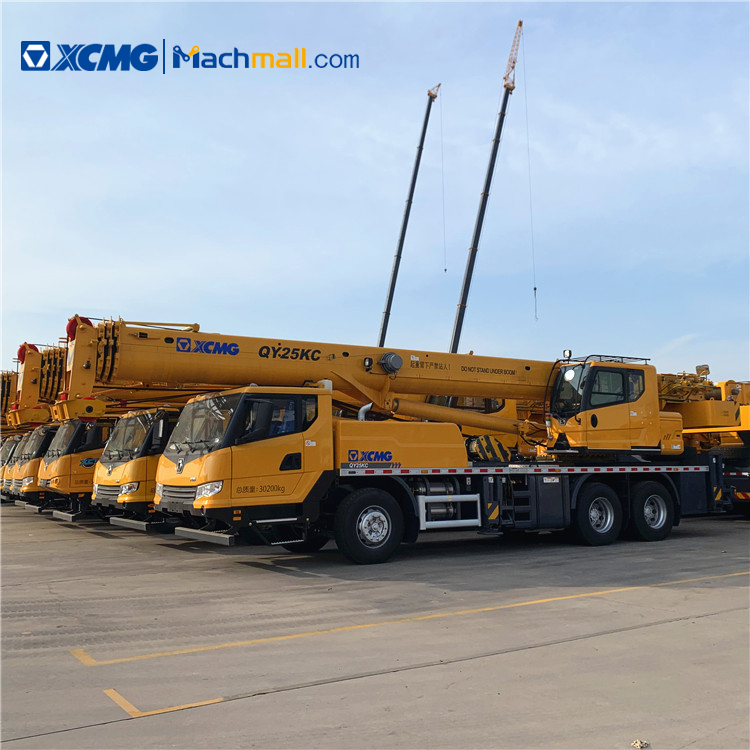

XCMG crane 25 tons 47m QY25KC.
XCMG crane 25 tons 47m QY25KC four-section boom of 43m with single-plate boom head and compact boom tail; boom length and lifting capacity take the lead in the industry; 10-20% higher lifting performance when the boom is partially and fully extended and used frequently. This crane is your best choice for middle and small construction sites.
1. Optimal power transmission system
Off-road specialized four-axle G-class chassis with low speed large torque power transmission system equipped, features higher climbing capacity at lower speeds and job site transfer capacity at higher speeds, i.e. maximum grade ability of 45% and a maximum travel speed of 90 km/h.
2.High grade electrical protection, more reliable operation
Improved electrical system reliability: waterproof and dustproof inserts, high temperature-resistant corrugated pipes, special wire harness closure sleeves and rubber sleeves are used, excellent dust protection, protection level up to IP67.
3.Every detail is crafted

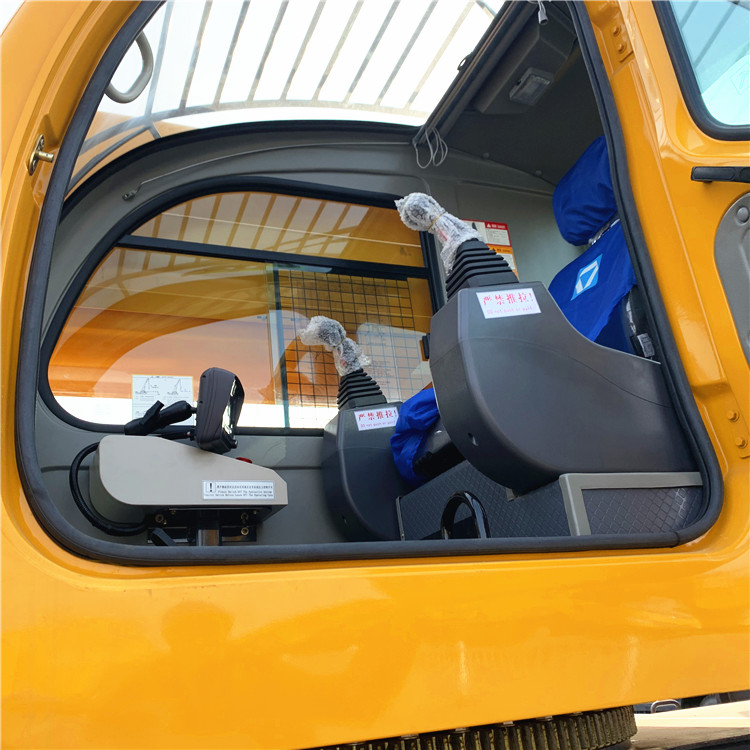

New design of appearance details and improved decoration in driver's cab: cabs with high air tightness, artistic decoration, soft packaging instrument station, flameproof, antiskid and easy to clean floor mats, and hot press molding ceiling, new length/angle sensor with high precision and molding aluminum alloy junction box.
4.Consideration for humanized details, easier and faster operation
High-luminance LED outrigger working lamps, 40% increase in brightness, five-times improvement in service life; wide view winch monitoring mirror, safer winch operation.
|
Description |
|
Unit |
Parameter value |
|
Overall length |
|
mm |
12650 |
|
Overall width |
|
mm |
2500 |
|
Overall Height |
|
mm |
3380 |
|
Wheel Base |
|
mm |
4425+1350 |
|
Track |
|
mm |
2074/1834/1834 |
|
Total vehicle mass in travel configuration |
|
kg |
29400 |
|
Axle load |
Front axle |
kg |
6600 |
|
|
Rear axle |
|
22800 |
|
Engine Model |
|
|
SC8DK280Q3 |
|
Engine rated power |
|
kw/(r/min) |
206/2200 |
|
Engine rated torque |
|
N.m/(r/min) |
1112/1400 |
|
Max. travel speed |
|
km/h |
75 |
|
Min. travel speed |
|
km/h |
2.9 |
|
Min. turning diameter |
|
m |
22 |
|
Min. ground clearance |
|
mm |
260 |
|
Max. grade ability |
|
% |
30 |
|
Approach angle |
|
° |
16 |
|
Departure angle |
|
° |
13 |
|
Braking distance (at 30 km/h, full load ) |
|
m |
≤10 |
|
Oil consumption per 100km |
|
L |
≤37 |
|
Exterior noise level during acceleration traveling |
|
dB (A) |
84 |
|
Noise level at seated position |
|
dB (A) |
90 |
|
Marketing Type |
New Product 2020 |
3.065 |
m |
|
Warranty of core components |
1 Year |
961 |
m |
|
Core Components |
Gearbox |
10.4 |
m |
|
Color |
Yellow |
39.5 |
s |
|
Fully extended boom+jib |
m |
47.8 |
s |
|
Longitudinal outrigger span |
m |
5.14 |
r/min |
|
Lateral outrigger span |
m |
6 |
m/min |
|
Working speed |
|
|
m/min |
|
Boom luffing time |
s |
68 |
|
|
Boom full extension time |
s |
150 |
|
|
Max. swing speed |
r/min |
2.5 |
|
|
Max. speed of main winch (single rope) (no load) |
m/min |
125 |
|
|
Max. speed of aux. winch (single rope) (no load) |
m/min |
125 |
|
