Summary
- Fork Width:55mm
- Fork Length: 1070mm
- Min Lifting Height: 2353mm
- Max Lifting Height:4500mm
- Rated Loading Capacity: 5000kg
- Power Source:AC Motor
- Model Number:CPD50F8
- Brand Name: EP
- Place of Origin:Zhejiang, China
Specifications
- Weight:7500.000kg
- Condition:New
- Moving Type:Other
- Certification:CE, ISO9001
- Drive motor:16.6kw
- Tyre type:Solid Rubber
- Lift motor:25.4kW
- Overall Dimensions:55*150*1070mm
- Service weight:7500kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

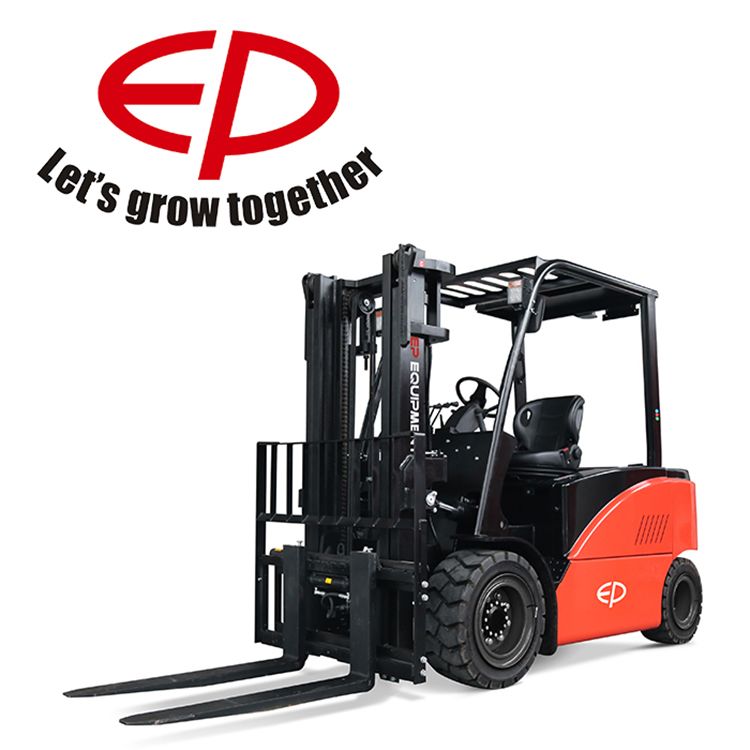

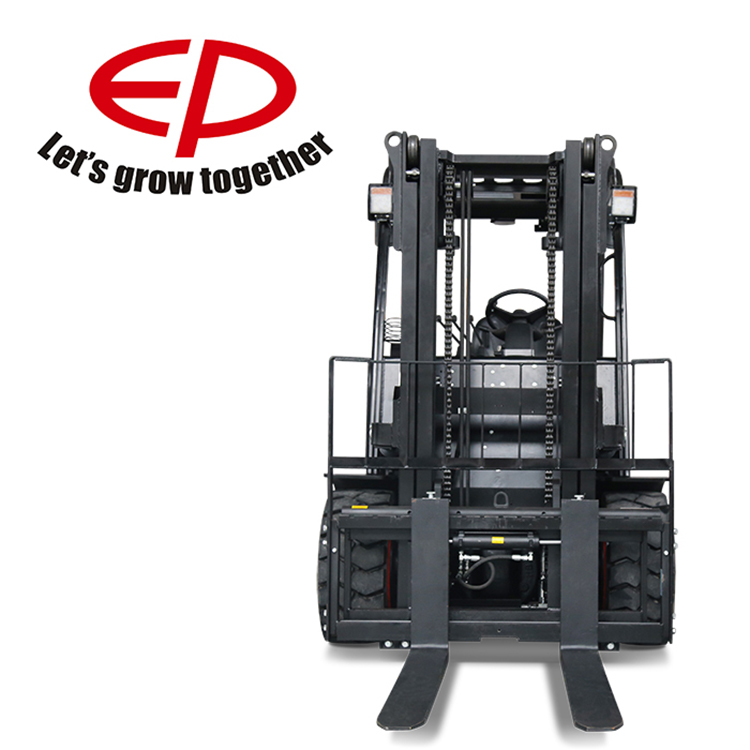

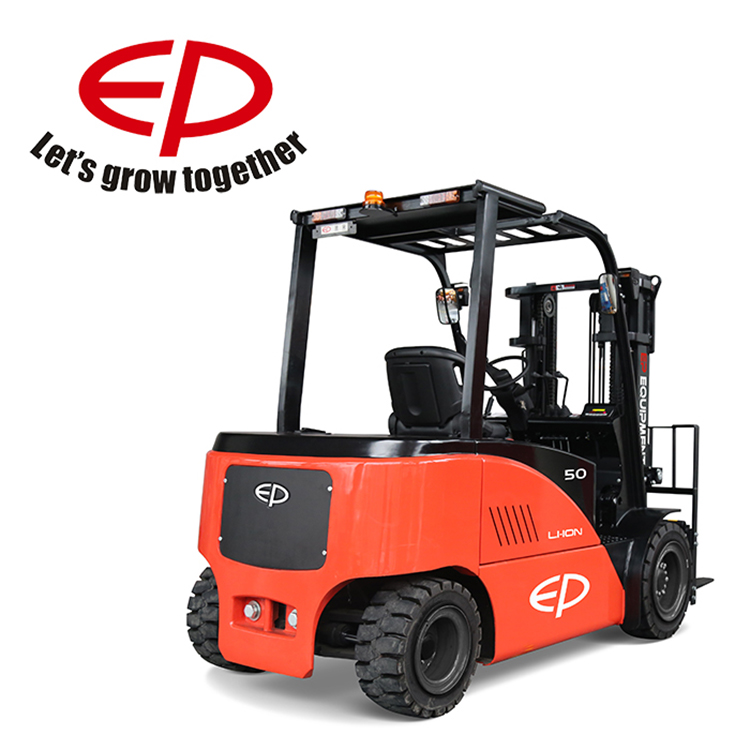

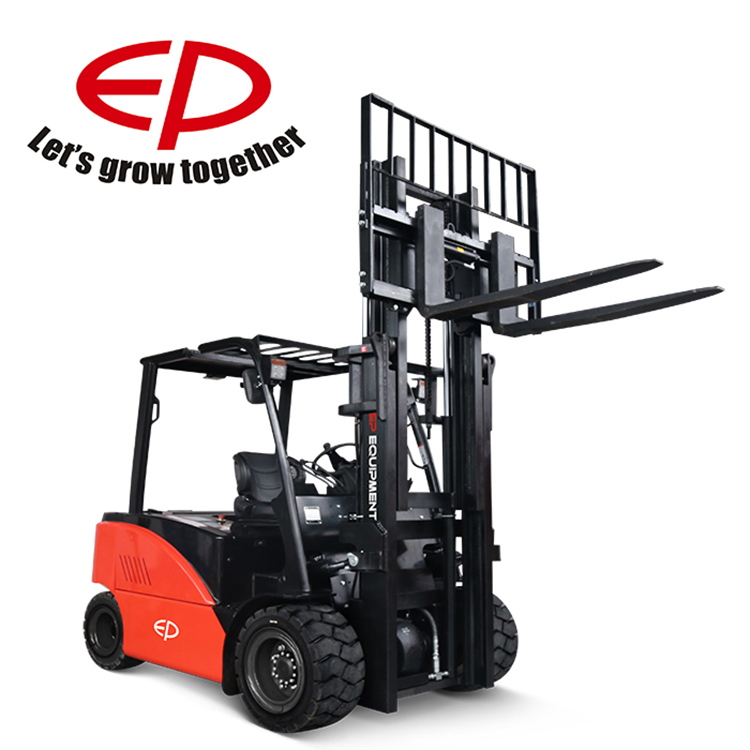

EP counterbalance forklift with four wheel 5 ton capacity.
EP counterbalance forklift with four wheel 5 ton capacity is a lithium-ion forklift with a more powerful load capacity, with a load capacity of 4.5/5.0 tons. The advantages of lithium battery technology make CPD45/50F8 a more ideal choice than internal combustion forklifts. It can support fast charging function, and can provide a spacious cabin space in accordance with the principles of ergonomics.
EP counterbalance forklift with four wheel 5 ton capacity is suitable for heavy-duty (under 5t) operations, especially in the metal industry and construction materials.
Advantages:
2.Large load with lithium battery
|
Distinguishing mark |
|
Unit |
Value |
Value |
|
Manufacturer |
|
|
EP |
EP |
|
Model designation |
|
|
CPD50F8 |
CPD50F8(li-ion) |
|
rated capacity |
Q |
kg |
5000 |
5000 |
|
Load center distance |
c |
mm |
500 |
500 |
|
Wheelbase |
y |
mm |
2000 |
2000 |
|
Self weight (include battery) |
|
kg |
7500 |
7150 |
|
Dimensions |
|
|
|
|
|
Height, mast lowered |
h1 |
mm |
2250 |
2250 |
|
Free lift (load backrest) |
h2 |
mm |
150 |
150 |
|
Lift height |
h3 |
mm |
3000 |
3000 |
|
Height, mast extended |
h4 |
mm |
4120 |
4120 |
|
Height of overhead guard (cabin) |
h6 |
mm |
2353 |
2353 |
|
Fork dimensions |
|
mm |
55X150X1070 |
55X150X1070 |
|
Overall length |
l1 |
mm |
4127 |
4127 |
|
Overall width |
b1/ b2 |
mm |
1550 |
1550 |
|
Turning radius |
Wa |
mm |
2675.5 |
2735.5 |
|
Performance data |
|
|
|
|
|
Travel speed, laden/ unladen |
|
km/h |
14/14.5 |
14/14.5 |
|
Lifting speed, laden/ unladen |
|
m/s |
0.26/0.45 |
0.26/0.45 |
|
Lowering speed, laden/unladen |
|
m/s |
0.55/ 0.5 |
0.55/ 0.5 |
|
Electric-engine |
|
|
|
|
|
Drive motor rating S2 60 min |
|
kw |
16.6 |
16.6 |
|
Lift motor rating at S3 15% |
|
kw |
25.4 |
25.4 |
|
Battery voltage/nominal capacity K5 |
|
V/Ah |
80/700 |
80/540 |
|
Battery weight |
|
kg |
2015 |
405 |
