XCMG 220kn continuous flight auger drilling machine XR220D-CFA price
Summary
- Dimension(L*W*H):17900*3250*3550mm
- Weight:70ton
- Power(W):242kw
- Model Number:XR220D-CFA
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- Weight:70000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

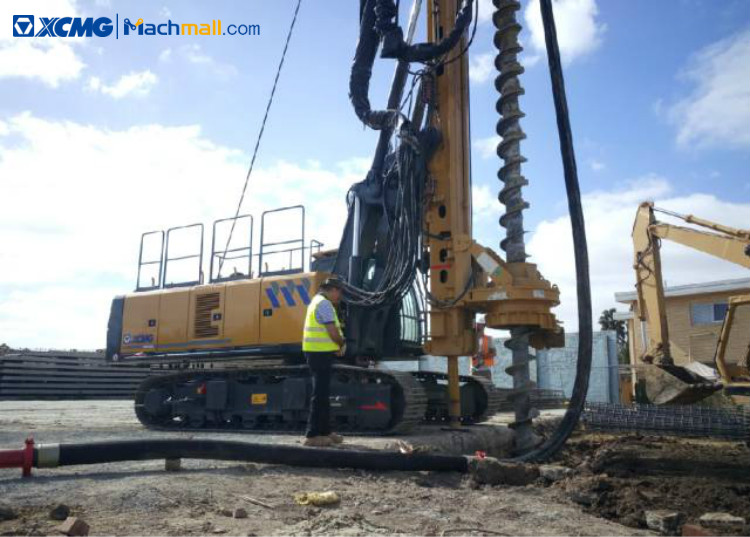

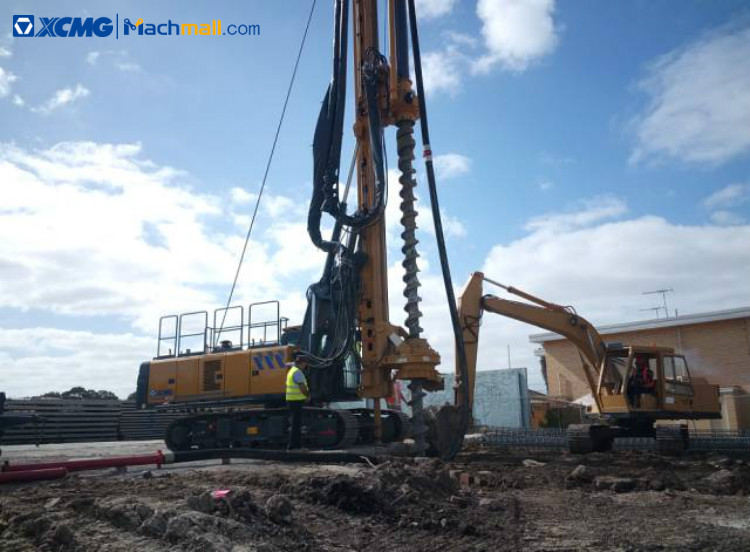

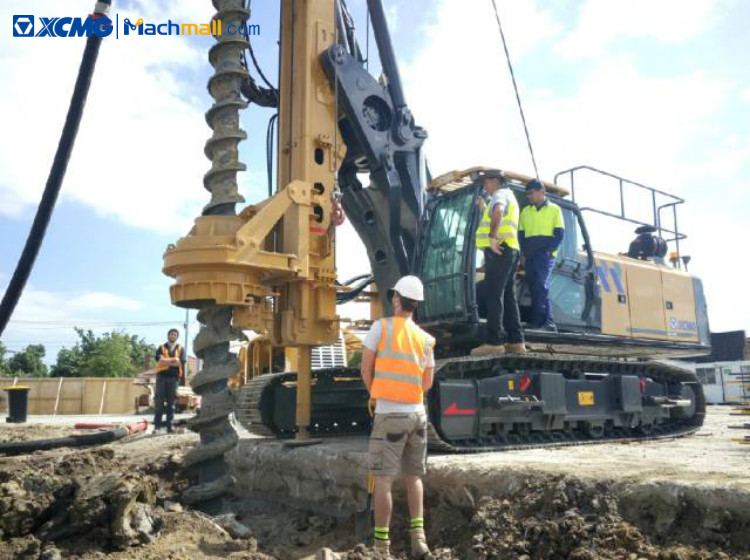

XCMG 220kn continuous flight auger drilling machine XR220D-CFA.
XCMG 220kn continuous flight auger drilling machine XR220D-CFA being a multi-purpose machine, it realizes CFA and Rotary Drilling method through changing working devices.
Using originally imported Cummins turbocharged engine, it meets the emission standards of Europe, also it is energy efficient, environment friendly and powerful.
Using main winch of single layer, it effectively handles issues of steel rope abrasion, thus prolonging the using limit. In the meantime, using fourfold steel rope tremendously improves elevation force.
Choose pressure function of winch to adapt to construction on hard formations.
Imported brands of hydraulic components, a reasonable match of power system, high efficience in construction.
Specially stretchable H-type chassis is easy to transport and adjust, making sure stability and reliability.
Equipped with the intelligent control system, CAN field-bus and PLC control system which are all protected under intellectual property rights, it includes auto/manual adjustment of the verticality of drilling mast、auto detection of depth、intelligent fault diagnosis control,etc.
Automatic control of master volume enhances perfusion of suited concrete, improving reliability.
|
Project |
Unit |
Parameter |
|
Engine |
|
|
|
Model |
- |
CUMMINS QSL-325 |
|
Rated Power |
(kW) |
242 |
|
Rotary Drive |
|
|
|
Max. Output torque |
(kN·m) |
220 |
|
Rotary speed |
(r/min) |
7~26 |
|
Max. Drilling Diameter |
(mm) |
Φ1100 |
|
Max. Drilling Depth |
(m) |
25 |
|
Max. Extraction Force |
(kN) |
700 |
|
Main Winch |
|
|
|
Max. Single-rope speed |
(m/min) |
70 |
|
Diameter of the steel wire rope |
(mm) |
30 |
|
Auxiliary Winch |
|
|
|
Max. Single-rope speed |
(m/min) |
80 |
|
Diameter of the steel rope |
(min) |
60 |
|
Drilling Mast Inclination |
|
|
|
Lateral |
(°) |
4 |
|
Undercarrige |
|
|
|
Max. Traveling speed |
(km/h) |
1.5 |
|
Max. Grade ability |
(%) |
35 |
|
Min. Ground Clearance |
(mm) |
468 |
|
Track Shoe Width |
(mm) |
800 |
|
Distance betwween tracks |
(mm) |
3250~4400 |
|
Hydraulic System |
|
|
|
Working pressure |
(MPa) |
35 |
|
Machine Working Quality/Transportation Quality |
(t) |
70/62 |
|
Dimension |
|
|
|
Working condition |
(mm) |
10695*4400*28555 |
|
Transportation condition |
(mm) |
17900*3250*3550 |
