XCMG 16 ton luffing construction crane tower XL6025-20 price
Summary
- Model Number:XL6025-20
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Span:30-60
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 16 ton luffing construction crane tower XL6025-20.
Product Description:
XCMG 16 ton luffing construction crane tower XL6025-20 Boom length 60m，boom end hoisting weight 2.5t，Max. Lifting capacity 16t；
Free standing height 47.6m，attach highly 266.6m；

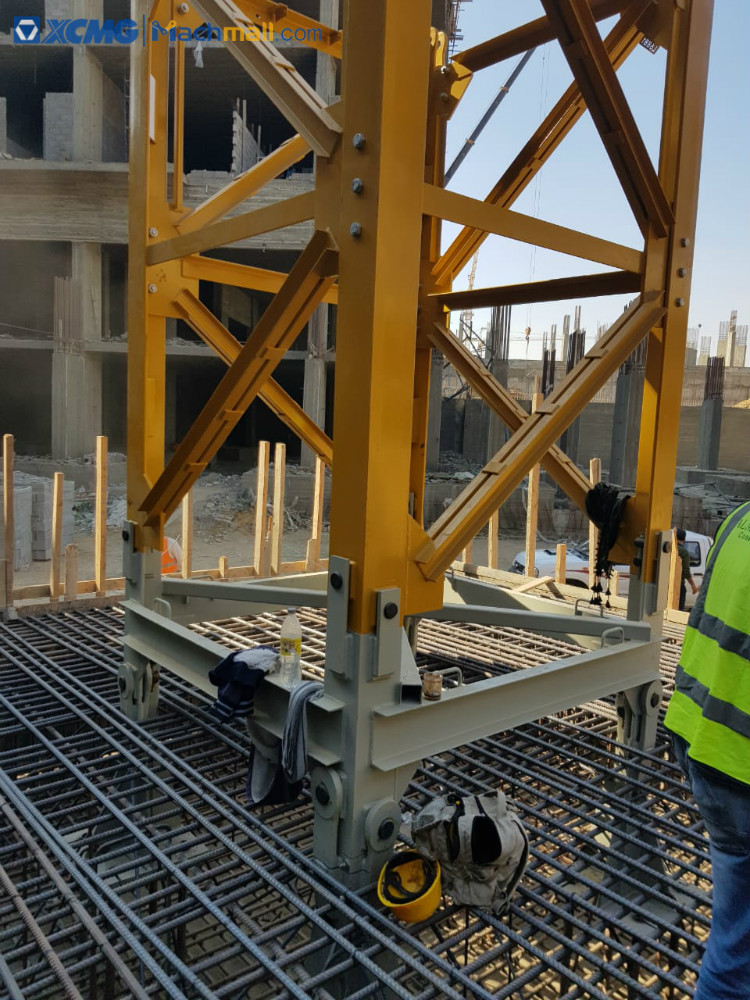

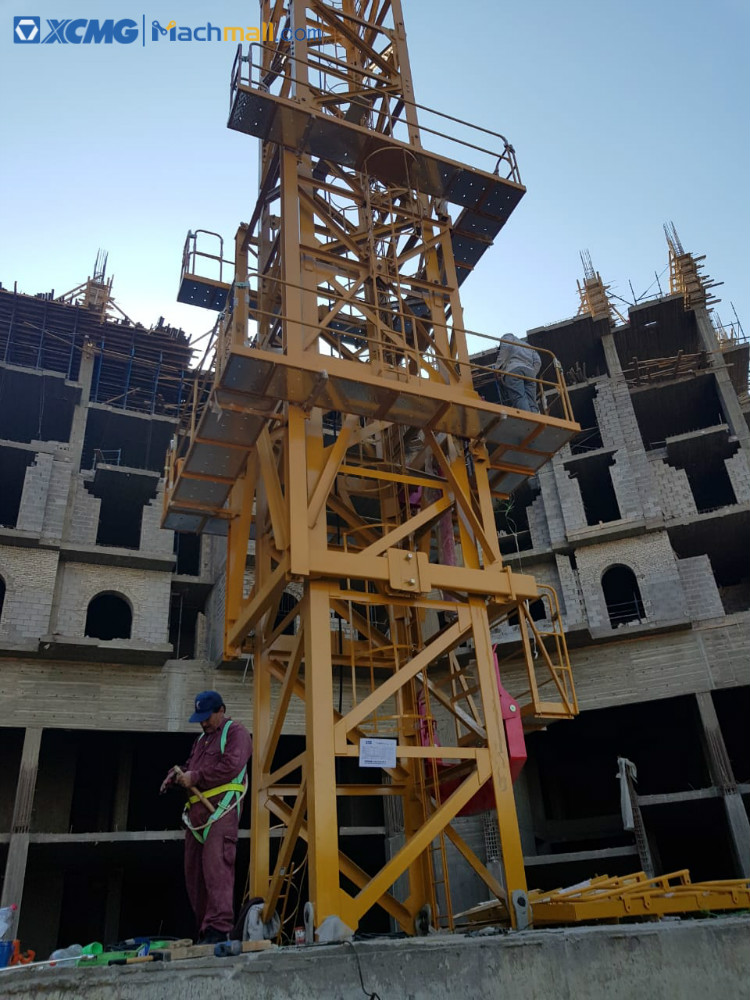

Tower body is of detachable standard section(L69B)，2×2×3.0m；
hoisting mechanism：75JLF50X，power：75KW， rope capacity: 610m；
luffing mechanism：45JLF40BX，power：45KW，speed：15°-85°≤3min;
swing mechanism：JH12CT，power：2×9KW，slewing speed：0-0.7r/min；
Highlights of Electrical Control System:
The electronic control system adopts high-quality electrical components and low-fault control design to ensure that the electrical control system works stably, reliably, and has a long life;
The major mechanism have superior performance, stable operation, low impact, low failure rate, safety and reliability;
It is equipped with high-quality and complete safety devices with high reliability and high precision to ensure the safe operation of the tower crane.
Highlights of Steel Structure:
XCMG 16 ton luffing construction crane tower XL6025-20 tower body is of detachable standard section, which is convenient for transportation and of high interchangeability;
The boom has a combination of five boom lengths of 30m, 35m, 40m, 45m, and 50m;

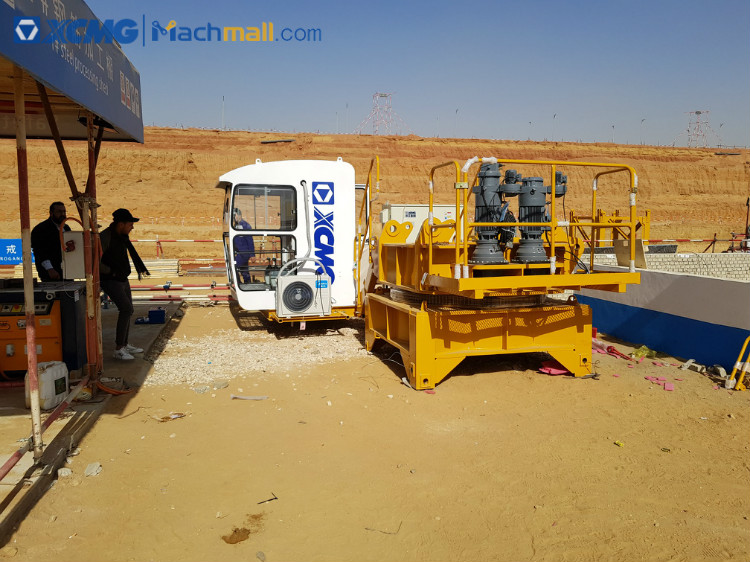

The construction crane tower XL6025-20 machine is easy to install and disassemble. The power unit, hoisting mechanism, and luffing mechanism are all installed on the turntable through the pin shaft connection, which reduces the requirements for the installation of the crane, and is extremely convenient for disassembly and installation.
|
Model |
- |
XL6025-20 |
|
boom length/boom end hoisting weight |
m/t |
60/2.5 |
|
Rated lifting moment |
t.m |
250 |
|
Max. lifting capacity |
t |
20 |
|
Free standing Height |
m |
47.6 |
|
Attach highly |
m |
266.6 |
