Summary
- Dimension(L*W*H):14530×2530×4000MM
- Weight:44000kg
- Power(W):294000W
- Model Number:HB58V
- Brand Name:XCMG
- Place of Origin:JiangSu,China
- Power Type: Diesel
- Certification:CE/ISO9001
Specifications
- Weight:44000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Reach height:57.5M
- Reach depth:40.5M
- Slewing angle:±270°
- Transfer tuble:Rock valve/S valve
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

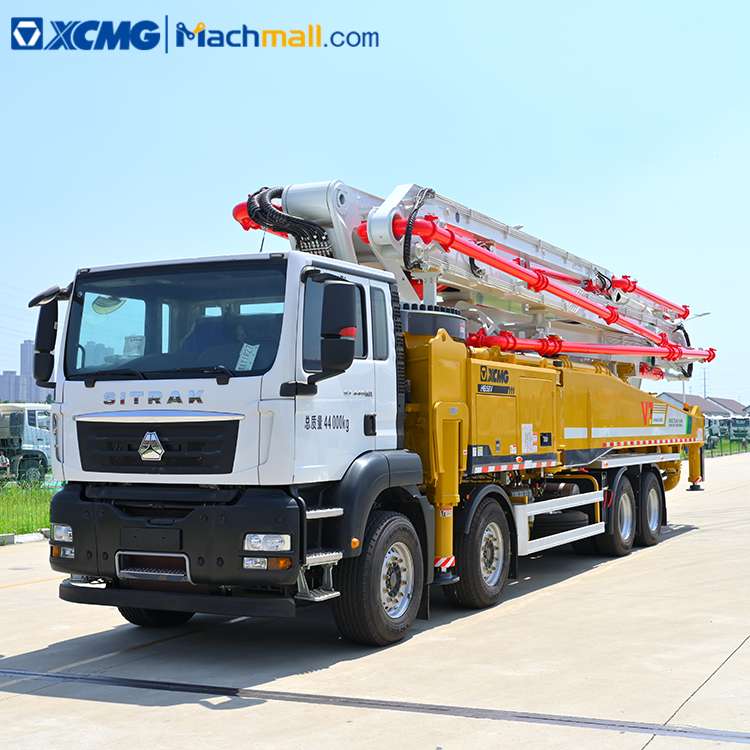

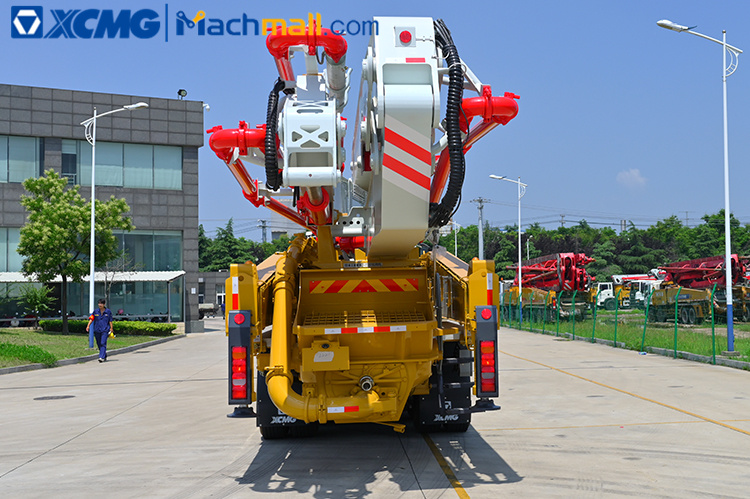

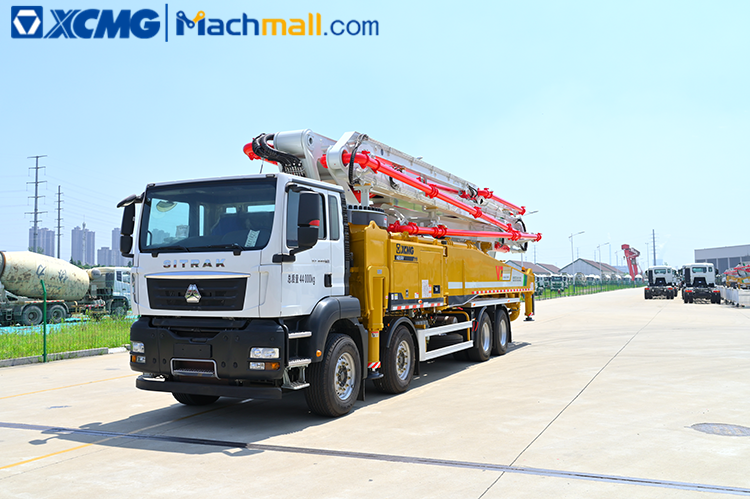

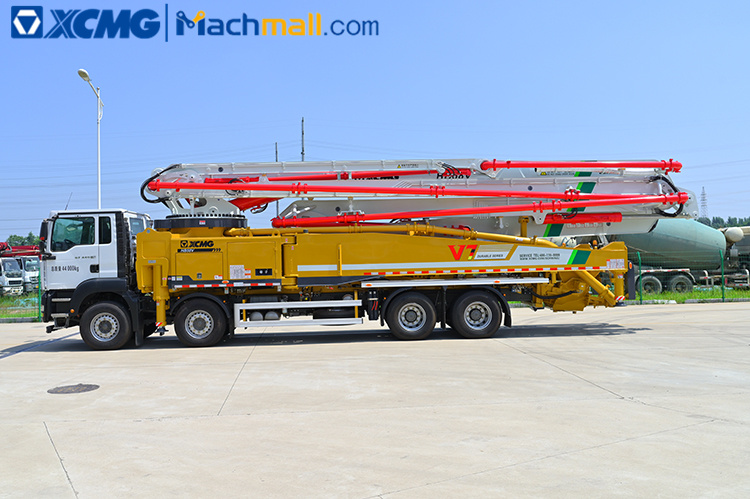

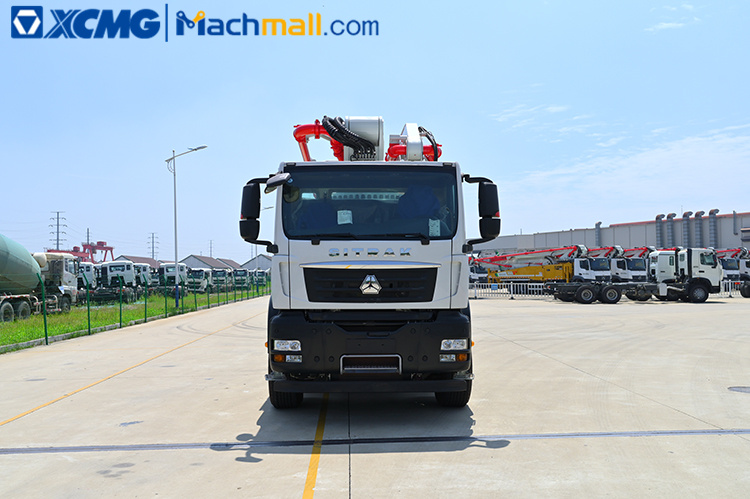

XCMG Official concrete pump machine price in Guinea with SITRAK chassis HB58V.
XCMG Official concrete pump machine HB58V is a new concrete pump truck with Schwing series independently developed by XCMG,equipped with SITRAK chassis. It is the world's longest boom pump truck with four-axle curved outriggers.
In the design, the SITRAK chassis is adopted, following the principle of "high starting point, high technology, high performance, high reliability, and high quality", with curved outriggers, intelligent boom damping technology, and full hydraulic reversing technology, The industry's unique skirt valve pumping system and other product highlights.
Advantages and highlights:
1.Ultimately Safe Boom.

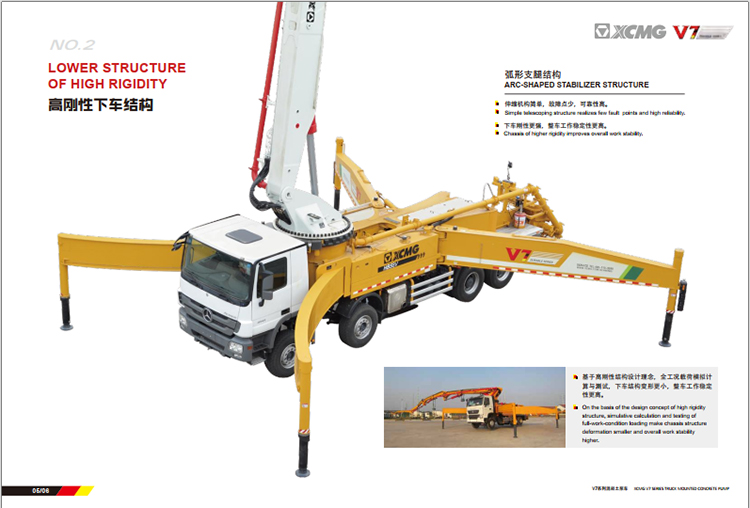

2.Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
|
Category |
Item |
Unit |
HB58V |
|
Overall |
Outline dimension |
mm |
14530×2530×4000 |
|
|
Overall weight |
kg |
44000 |
|
|
Brand |
/ |
SITRAK |
|
Chassis |
model |
/ |
AROCS4143 |
|
|
Wheelbase |
mm |
2050+4300+1350 |
|
|
Max.power |
kW |
300 |
|
Engine |
Emission |
/ |
China V |
|
|
Theoretical |
m³/h |
180 |
|
Pumping system |
Concrete pumping pressure |
Mpa |
10.2 |
|
|
Theoretical pumping times |
Times/min |
22~24 |
|
|
Delivery cylinder diameter × stroke |
mm |
φ260×2200 |
|
Placing boom |
Reach height |
m |
57.5 |
|
|
Reach depth |
m |
40.5 |
|
|
Slewing radius |
m |
52.5 |
|
|
Slewing angle |
° |
±270 |
|
Others |
Transfer tuble |
/ |
Rock valve/S valve |
