Shuoli 55kw full hydrauic mobile portable trailer concrete pump machine for mining price
Summary
- Dimension(L*W*H):4500×1300×1700mm
- Weight:3500kg
- Power(W):55kw
- Model Number:HBTS45-10-55
- Brand Name:Shuo Li
- Place of Origin:Jiangsu,China
Specifications
- Weight:3500.000kg
- Condition:New
- Moving Type:Wheel
- Cylinder bore:100mm
- Conveying cylinder bore:160mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

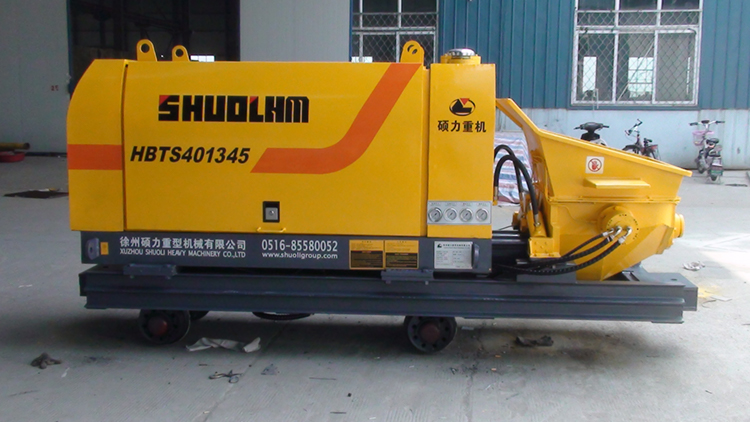

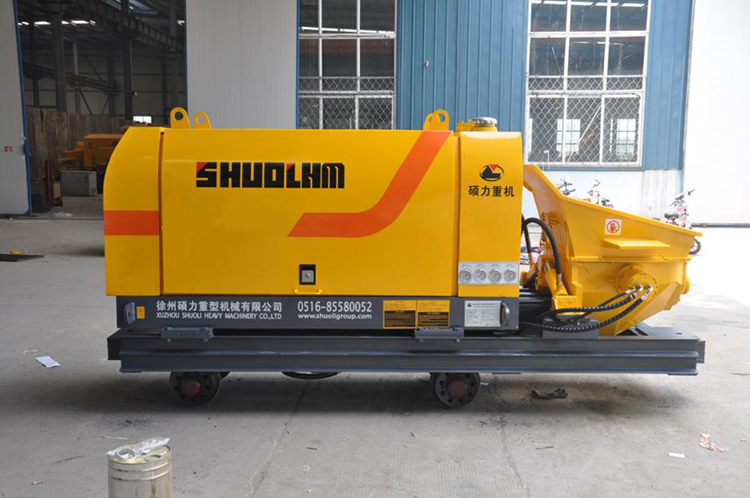

Shuoli full hydrauic mobile portable trailer concrete pump machine for mining.
Shuoli full hydrauic mobile portable trailer concrete pump machine for mining is driven by an electric motor. The explosion-proof category is Exdl, which is widely used in the working environment of coal mines.
The main purpose:
*It can fill the goaf underground.
*Can recover the reserved security coal pillars to realize "pillarless mining".
*Can backfill solid waste underground to solve coal gangue discharge.
*Can be filled behind the wall, suitable for short-wall mining.
*It can replace wet spraying machine for roadway spraying, and complete temporary support can quickly complete the isolation wall and close the abandoned roadway.
The main feature:
*High safety performance: It adopts full hydraulic drive, no live control, suitable for working environment in coal mine.
*High conveying pressure and long conveying distance: The outlet pressure of the pumping system is as high as 12MPa, and the conveying distance can reach more than 500m.
*Reliable quality and stable performance: The core components of the system are imported from Germany, and the main wear parts are treated with special wear-resistant enhanced treatment technology to ensure the service life of the system and stable and reliable operation.
*Compact structure: The main machine and hydraulic station of the system can be sent into the underground through the mine cage; the equipment is fixed on the rack equipped with walking rail wheels, which is easy to transfer.
|
Parameter |
Unit |
HBTS45-10-55 |
|
Theoretical concrete pump |
m3/h |
55 |
|
Maximum pumping concrete pressure |
Mpa |
10 |
|
Hydraulic system form |
|
Open |
|
Power form |
|
Motor |
|
Rotating speed |
r/m |
1480 |
|
Power |
kW |
55 |
|
Distribution valve form |
|
S valve |
|
Cylinder bore |
mm |
100 |
|
Conveying cylinder bore |
mm |
160 |
|
High and low voltage switch |
|
√ |
|
Hydraulic oil tank volume |
L |
280 |
|
Hopper volume |
m3 |
0.4 |
|
Loading height |
mm |
1260 |
|
Dimensions |
mm |
4500×1300×1700 |
|
Total Weight |
kg |
≈3500 |
