China XCMG concrete placing boom HGP32 with SCHWING technology for sale
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):1845x680x1188mm
- Weight:21kg
- Power(W):22000W
- Model Number:HGP32
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:21.000kg
- Condition:New
- Moving Type:Other
- Max. placing radius:32m
- Slewing angle of the placing boom:370°
- Independent height:21m
- Climbing speed:0.5~0.8m/mim
- System pressure:33MPa
- Oil tank capacity:120L
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
China XCMG concrete placing boom HGP32 with SCHWING technology.

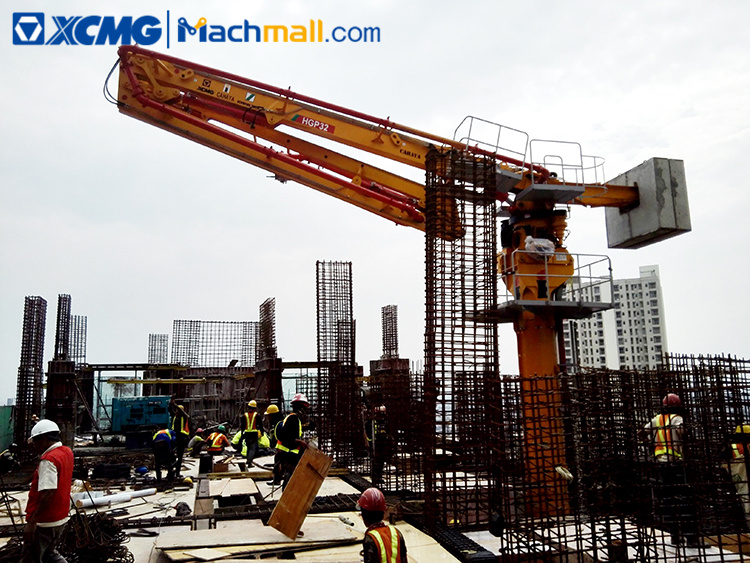

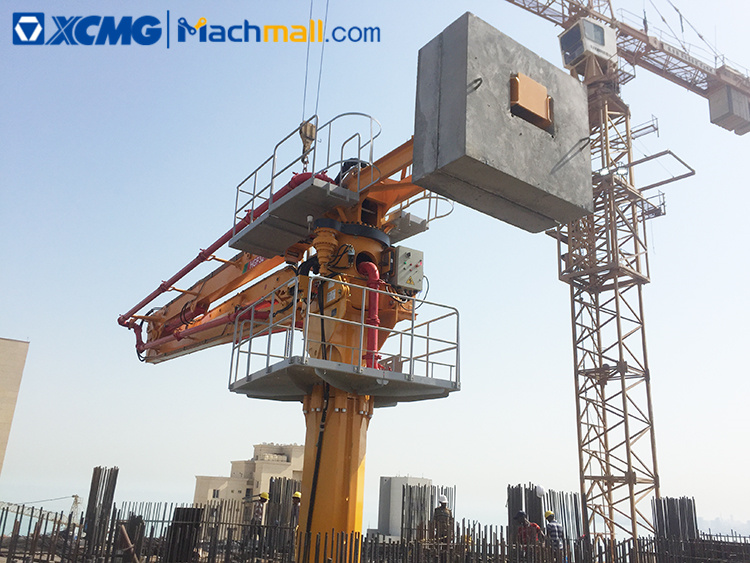

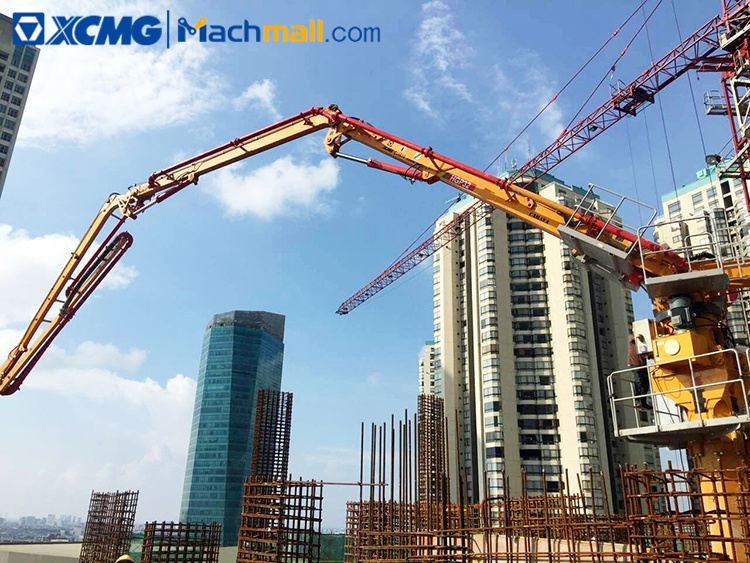

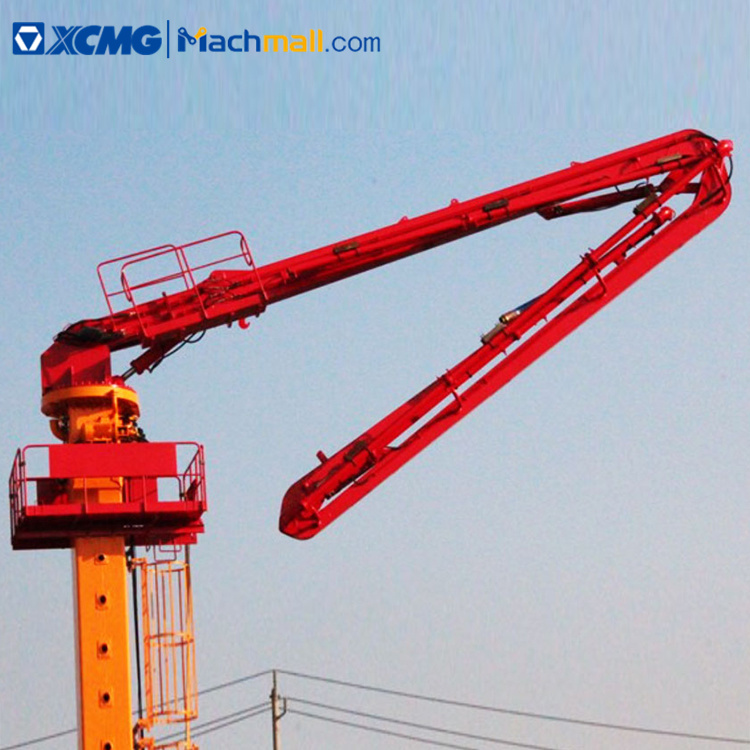

XCMG concrete placing boom HGP32 with Schwing technology is a kind of equipment used together with concrete pump, which can rise inside building and realize ideal concrete placement. XCMG concrete placing boom HGP32 with Schwing technology is researched and developed by incorporating advanced SCHWING technology of placing boom and adopting such design method as finite element analysis.
* Automatic climbing technology
Now, most placing booms in the market adopt cylinder jacking for climbing. The automatic climbing system of SCHWING placing boom has been tested by the market. The adoption of this climbing technology is good for our company to form products and enter into the market rapidly. The accumulation of relevant experience has laid a foundation for developing an automatic climbing system of better performance and stronger operability.
* External linkage of concrete pump truck boom
External linkage is also one of the typical marks in integrating SCHWING technology. The design of "Front Two, Rear Three" structural type external linkage has effectively improved the problem of boom transverse swing. The optimization of connecting pin roll fixing ways has ensured the distance between booms, avoided possibly existing interference problem and guaranteed reliability.
* Full filtering
All loop tanks are equipped with full filtering system of oil suction and oil return which ensures system cleanness, prolongs service life of hydraulic elements and hydraulic oil, and generates higher operational reliability of hydraulic system.
|
Description |
Unit |
Parameter value |
|
Max. placing radius |
m |
32 |
|
Slewing angle of the placing boom |
° |
370 |
|
Temperature of work environment |
ºC |
-20~+50 |
|
Independent height |
m |
21 |
|
Column type |
|
4m +6m |
|
Mounting type |
|
Floor |
|
Climbing speed |
m/mim |
0.5~0.8 |
|
Climbing type |
|
Top-climbed oil tank |
|
Motor model |
|
YX3-180L-4 V1 |
|
Power |
Kw |
22 |
|
Rev. |
rpm |
1470 |
|
System pressure |
MPa |
33 |
|
Flow |
L/min |
34 |
|
Oil tank capacity |
L |
120 |
|
Control mode |
|
Panel control/wired control/remote control |
|
Cleaning methods of delivery pipe |
|
Washing/dry cleaning |
|
Gross mass (including counterweight) |
mm |
21 |
|
Boom type |
mm |
4R |
|
Delivery pipeline diameter |
mm |
DIN125 |
|
Length of end hose |
m |
3 |
