Summary
- Certification:ISO/CE9001
- Dimension(L*W*H):10215×2500×3965MM
- Weight:14670KG
- Power(W):248000W
- Model Number:XSC4307
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:14670.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

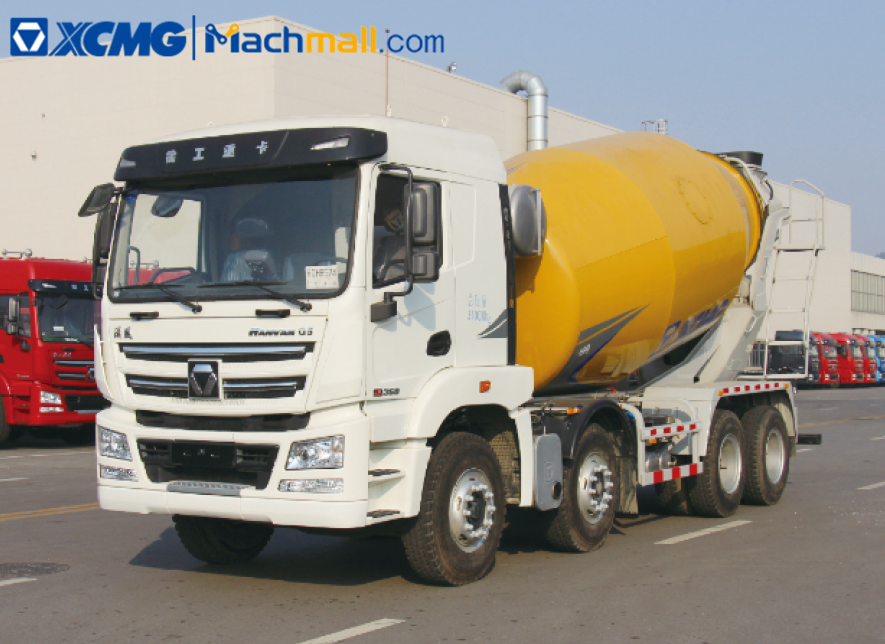

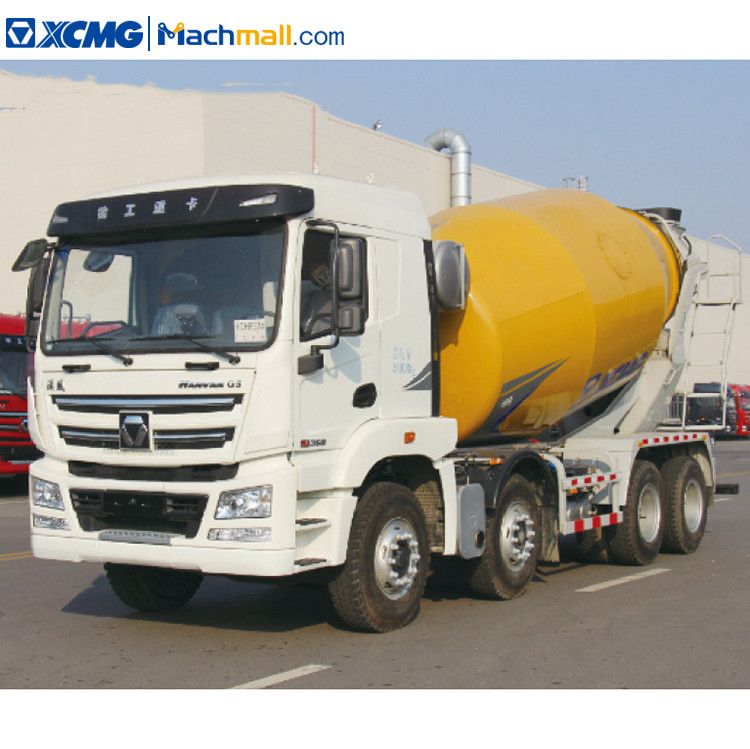

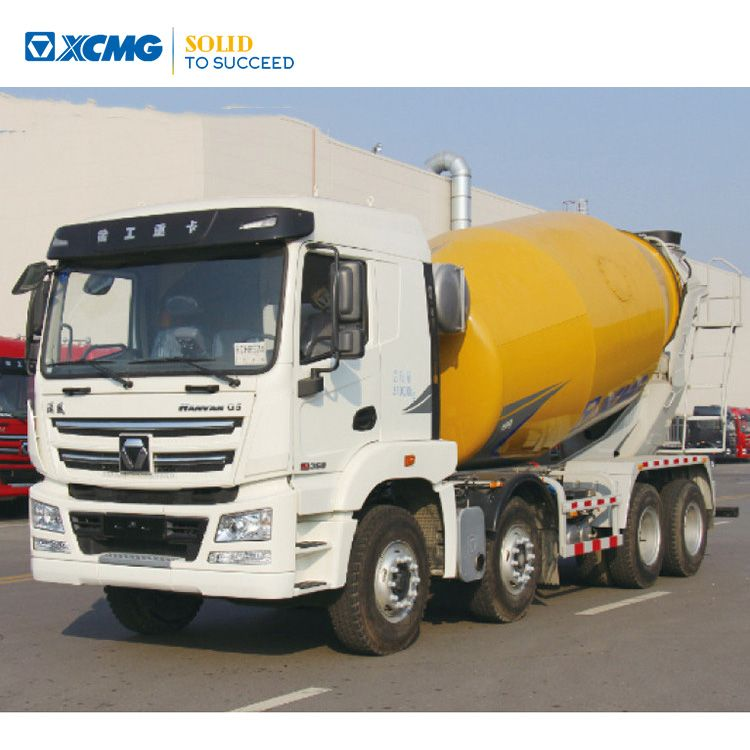

XCMG hanvan series concrete mixer truck cement XSC4307 sale in Kenya.
XCMG concrete mixer truck cement XSC4307 belongs to HANVAN series, equipped with specialty and acme originates from the top-level technology of SCHWING Germany.SCHWING’s blade design of variable height is used for mixing drum, together with optimized guide pipe, to provide stronger material sealing capacity and higher filling rate, thus improving the loading capacity of the tank by 6%;Low dip angle is designed, with the angle 5% lower than that of its counterparts and the stability improved by 18% under equivalent loading capacity.

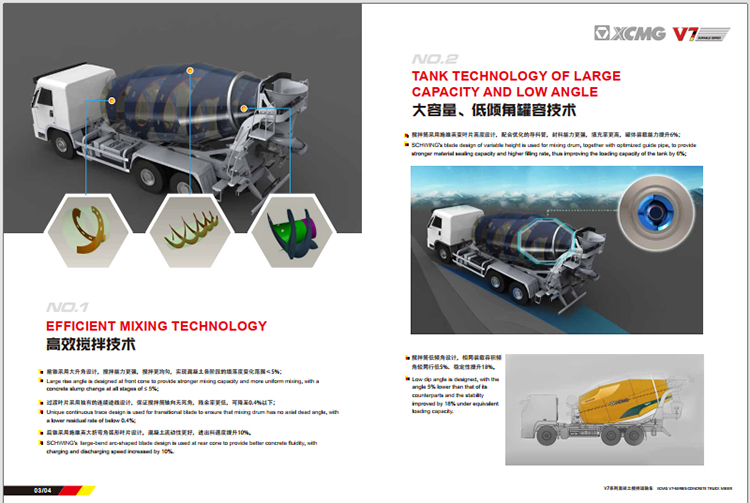

1.Efficial Mixing Technology
Large rise angle is designed at front cone to provide stronger mixing capacity and more uniform mixing, with a concrete slump change at all stages of ≤ 5%;Unique continuous trace design is used for transitional blade to ensure that mixing drum has no axial dead angle, with a lower residual rate of below 0.4%.
2.Comprehensive Improvement of Key Parts’ Reliability
Optimized matching of drum body and blade steel plate realizes equivalent service life of mixing system;Feed hopper and chute are made of multilayer high-strength wear-resistant liner plate, with the service life increased by 50%.The combined design of two bent arc-shaped rear beams and triangle stayed beam structure is used for rear support to provide super-strong bearing capacity, with fatigue life increased by 30%, sturdy and durable;The adoption of hydraulic parts of famous brands and transmission shaft of long service life improves the system’s reliability by once.
|
CATEGORY |
ITEM |
UNIT |
XSC4307 |
|
Performance of mixing drum |
Rev. |
r/min |
0~14 |
|
|
Charging speed |
m³/min |
≥3 |
|
|
Discharging speed |
m³/min |
≥2 |
|
|
Residual ratio of discharging |
% |
＜0.4% |
|
Hydraulic system |
Oil pump |
|
World-famous brand |
|
|
Motor |
|
World-famous brand |
|
|
Speed reducer |
|
World-famous brand |
|
Water supply |
Volume of water tank |
L |
450 |
|
Overall vehicle |
Chassis model |
|
ZZ1315N3063E1 |
|
|
Curb mass |
Kg’ |
14670 |
|
|
Drive type |
|
8×4 |
|
|
Wheel base |
mm |
1800+3050+1350 |
|
|
Tire |
|
11.00R20 |
|
|
PTO way |
|
|
|
|
Outline dimensions |
mm |
10215×2500×3965 |
|
Engine |
Model |
|
MC07.34-50 |
|
|
Rated power |
kW |
248 |
|
|
Fuel |
|
Diesel |
|
|
Emission standard |
|
China V |
