Summary
- Dimension(Long * Breadth * High):6880×4130×3688 mm
- Machine Weight:37200 kg
- Model Number:HD32
- Brand Name:HAITUI
- Place of Origin:Jining, Shandong
- Certification:ISO9001
Specifications
- weight:37200.000kg
- Condition:New
- Moving Type:Crawler
- Displacement:14.01 ton
- Operating weight:37.2 ton
- Ground pressure:0.105 Mpa
- Dozing capacity:10 m³
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

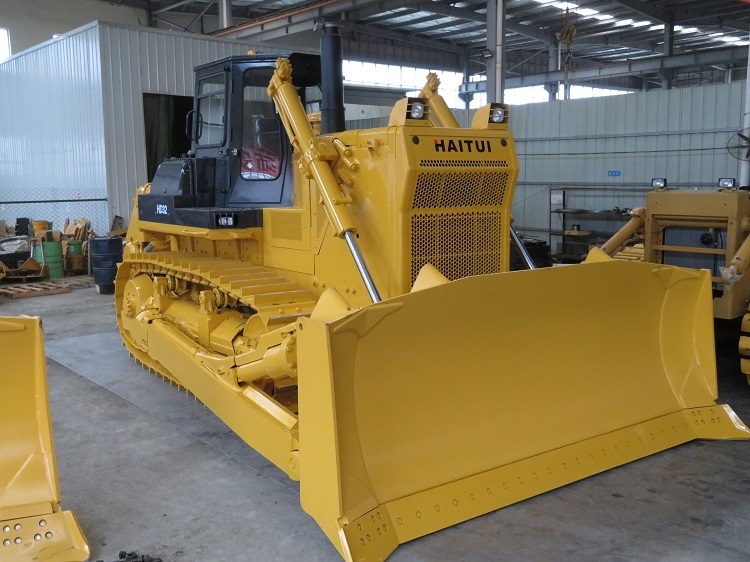

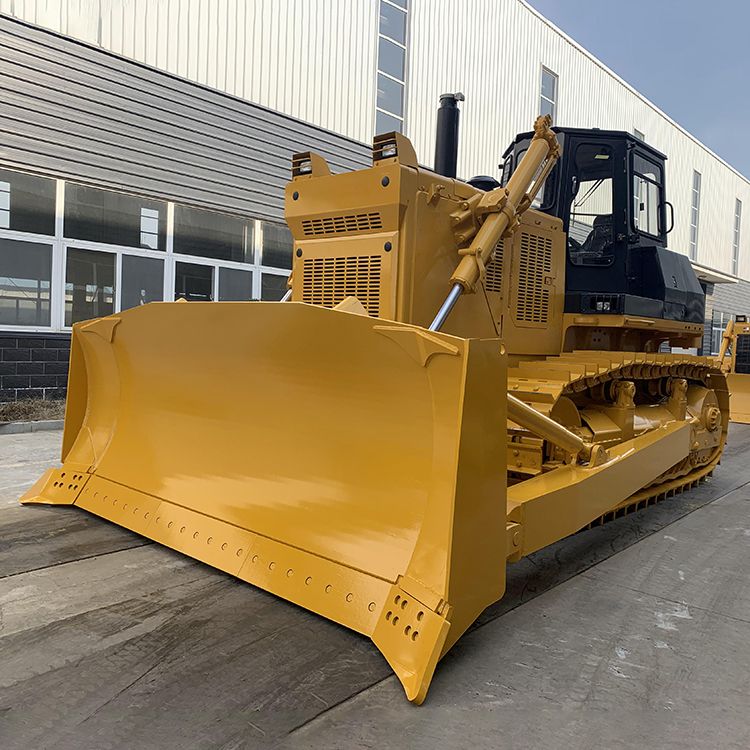

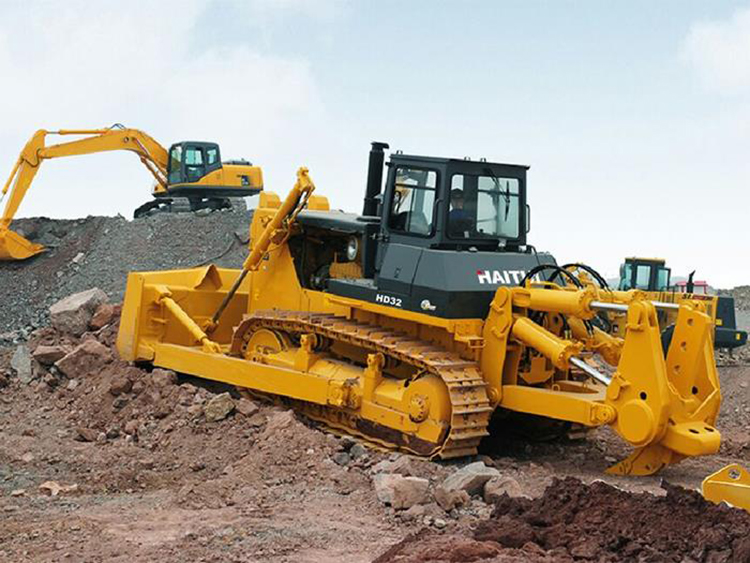

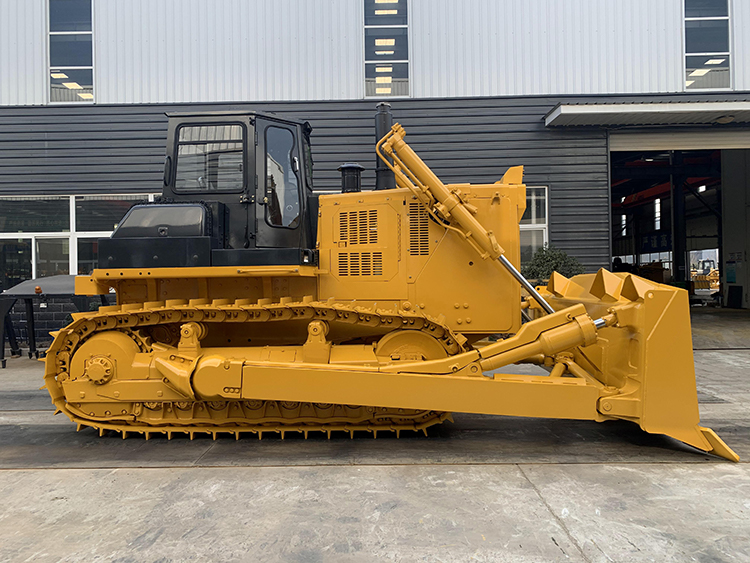

HAITUI chinese hydraulic bulldozer HD32 320HP with straight tilt blade.
HD32 crawler bulldozer, carries out standardized mass production of high-power bulldozer. HAITUI chinese hydraulic bulldozer HD32 320HP with straight tilt blade adopts advanced hydraulic transmission, hydraulic control technology, advanced and reasonable structure, light and flexible operation, quality and reliable.
Advantages:
1.The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.
2.With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.
3.The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.
4.The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force.
Model |
Unit |
HD32 |
Type |
|
320HP Standard Hydraulic Crawler Type |
Engine model |
|
CUMMINS NTA855-C360S10 |
Displacement |
L |
14.01 |
Rated power |
kw/rpm |
257/2000 |
Max.torque |
N.m/rpm |
1400/1440 |
Operating weight |
Ton |
37.2 |
Dimension(no ripper) |
mm |
6880×4130×3688 |
Grounding Length |
mm |
3150 |
Ground pressure |
Mpa |
0.105 |
Track gauge |
mm |
2140 |
Dozing capacity |
m³ |
10 |
Blade width |
mm |
4130 |
Blade height |
mm |
1590 |
Digging depth |
mm |
485 |
Track shoe width |
mm |
560 |
Pitch |
mm |
228.6 |
Quantity of track link |
|
41 |
Quantity of Carrier rollers |
|
4 |
Quantity of Track rollers |
|
14 |
Max tractor force |
KN |
280 |
Max pressure |
MPa |
14 |
Max drop below ground |
mm |
560/630 |
Forward Speed |
Km/h |
F1:0-3.6 |
F2:0-6.6 |
||
F3:0-11.5 |
||
Rear Speed |
Km/h |
R1:0-4.4 |
R2:0-7.8 |
||
R3:0-13.5 |
