Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):8600×2500×3200mm
- Weight:17500kg
- Power(W):92/2200
- Model Number:HPS30V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Max Aggregate Size:22/16
- Max. Conveying Distance:13.5m
Specifications
- Weight:17500.000kg
- Condition:New
- Moving Type:Wheel
- Max.Theoretical sparying:30m³/h
- Max.pumping pressure :8MPa
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

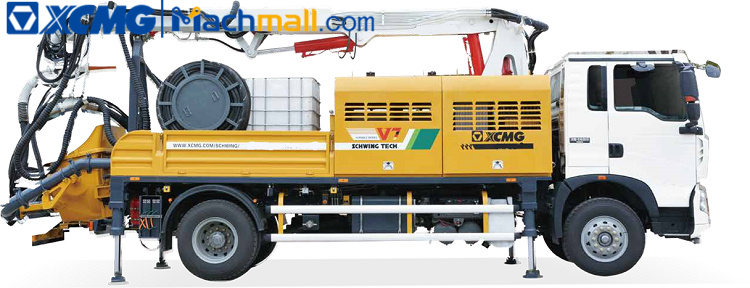

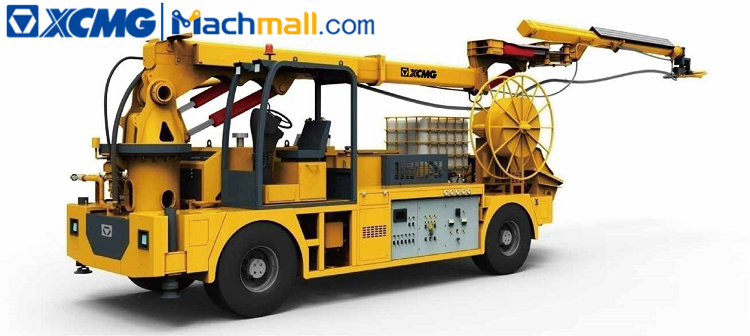

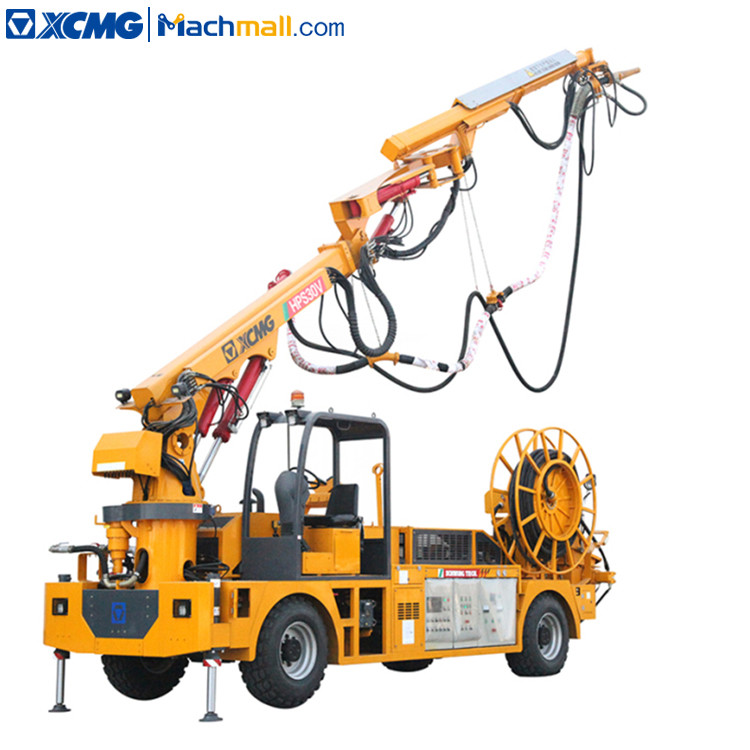

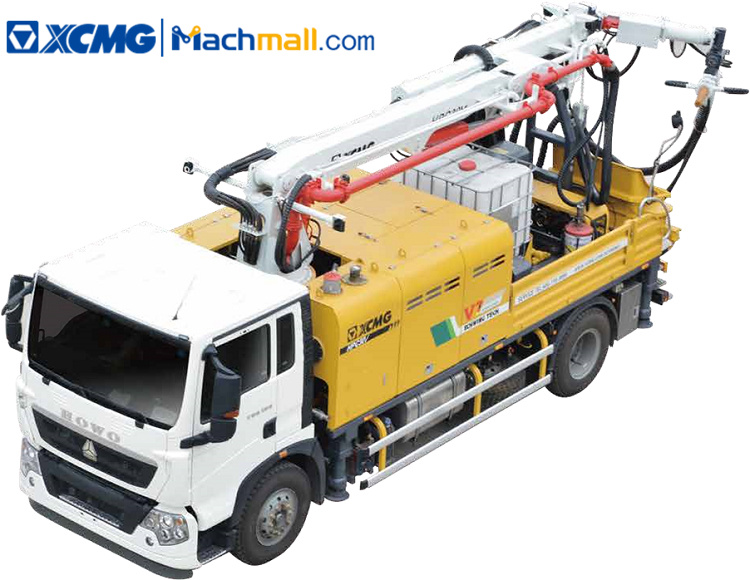

Cement spraying truck XCMG HPS30V 30 cubic meters.
XCMG cement spraying truck HPS30V can realize the max. spraying height of 17.3m, the farthest front spraying distance of 13.5m ,the Max. theoretical spraying capacity of XCMG cement spraying truck HPS30V is 30 cubic meters.
Performance and characteristic:
1. Besides the main power by motor, chassis power can realize boom and outrigger telescoping.
2.More practical dual power technology., more efficient skirt valve pumping system
3. Realize more flexible spraying operation without dead angle and meet tunnel construction requirements to the greatest degree.
4. By incorporating Schwing's fully-hydraulic reversing technology, short reversing time, small spraying impulse, low rebound ratio and good spraying planeness are realized.
|
Item |
Unit |
HPS30V |
|
Outline dimension |
mm |
8600×2500×3200 |
|
Overall weight |
kg |
17500 |
|
Rated power of engine |
kW/rpm |
92 /2200 |
|
Emission standard |
—— |
China III |
|
Gradeability |
％ |
21 |
|
Turning radius |
m |
5.9 |
|
Max. speed/hour |
km/h |
21 |
|
Max. spraying height |
m |
17.3 |
|
Max. spraying width |
m |
28.2 |
|
Max. front spraying distance |
m |
13.5 |
|
Min. permissible tunnel height for spraying operation |
m |
4 |
|
Max. reach depth |
m |
7.4 |
|
Max. theoretical spraying capacity |
m3/h |
30 |
|
Wind supply capacity |
m3/min |
10.5 |
|
Delivery pressure |
MPa |
0.8 |
