Summary
- Dimension(L*W*H):15780×2500×4000mm
- Weight:53000kg
- Power(W):335000W
- Model Number:HB67V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Power Type:diesel
- Certification:CE/ISO9001
Specifications
- Weight:53000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Concrete pumping pressure:8Mpa
- Theoretical pumping times:21～23times/min
- Reach height:66.1m
- Slewing radius:60.9m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

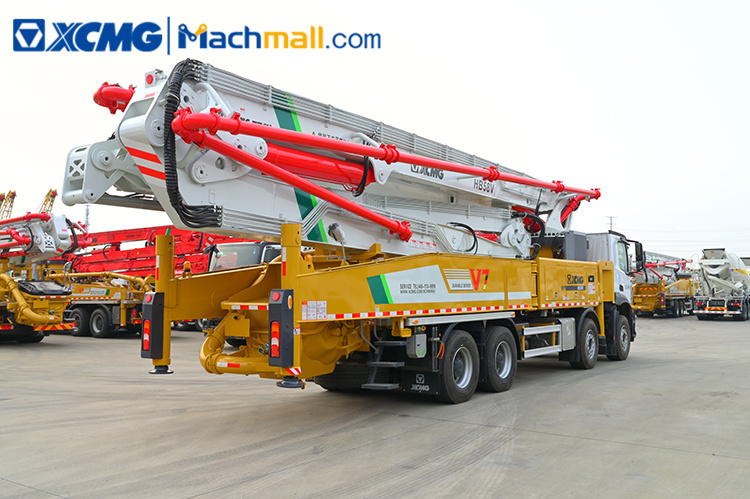

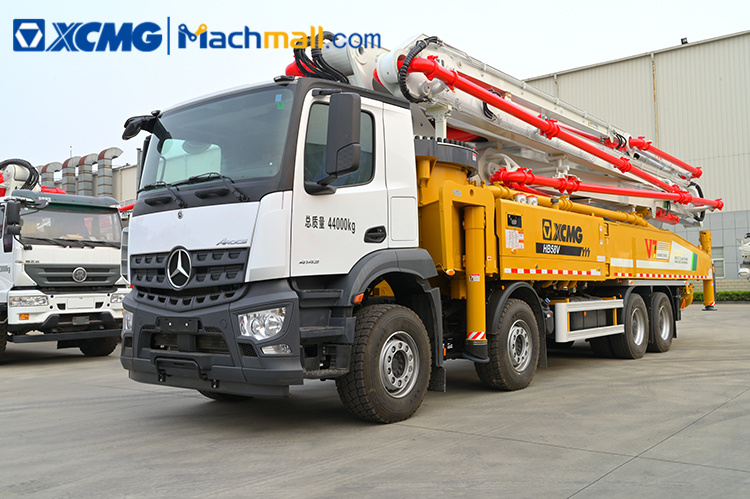

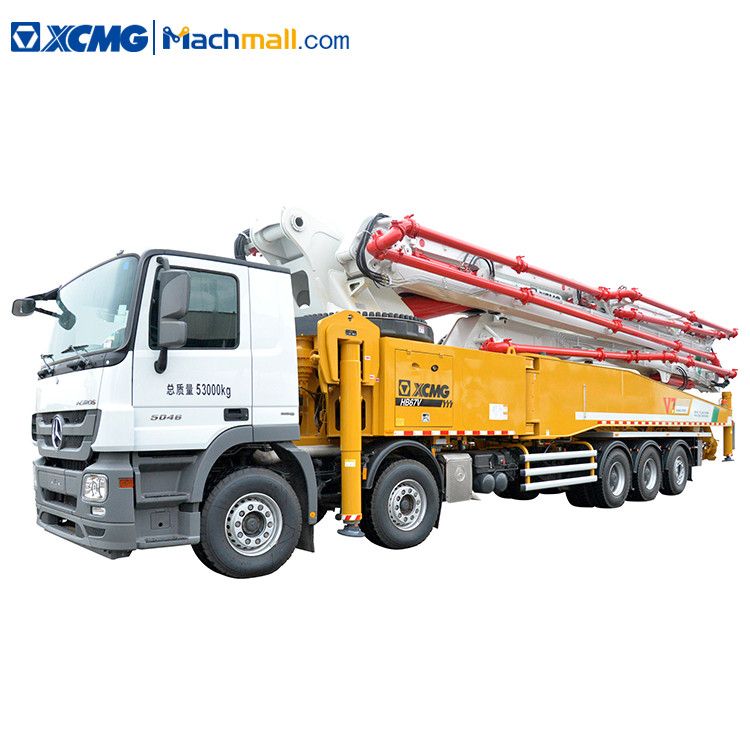

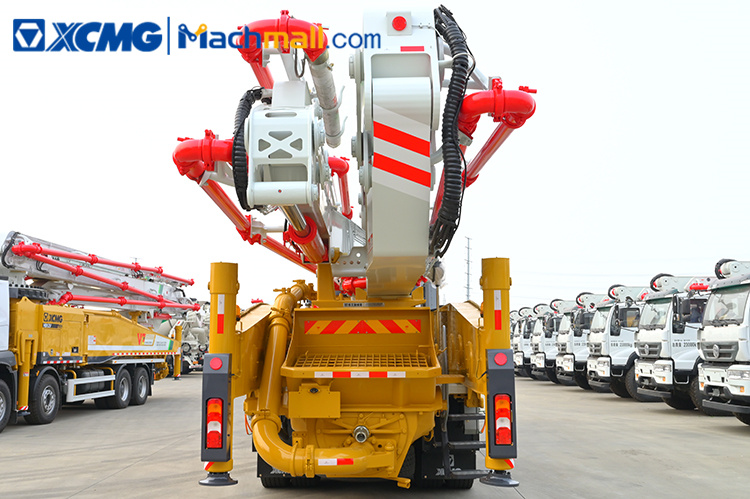

XCMG cement concrete pumps truck HB67V is equipped with more efficient skirt valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology. XCMG cement concrete pumps truck HB67V is equipped with Benz chassis, which has dual circuit compressed air brake system, with air dryer, computer intelligent load sensing system and intelligent braking control system.

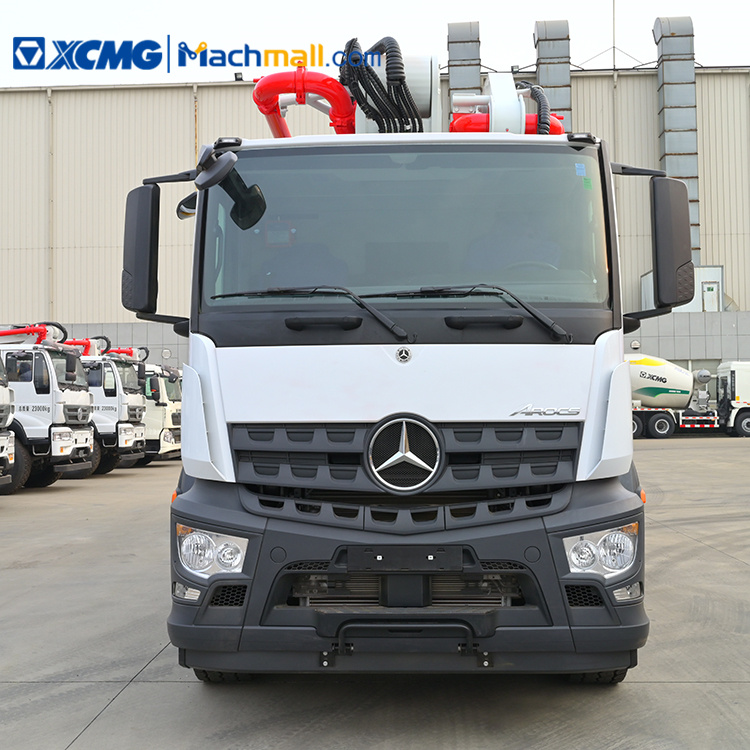

XCMG cement concrete pumps truck HB67V adopts Benz sitrak chassis, which complies with China 5 emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance.
Advantages and highlights:
1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
|
Category |
Item |
Unit |
HB67V |
|
Overall |
Outline dimension |
mm |
15780×2500×4000
|
|
|
Overall weight |
kg |
53000
|
|
Chassis |
Brand |
/ |
Benz |
|
|
Model |
/ |
Actros 5046E5
|
|
|
Wheelbase |
mm |
2020+5180+1350+1450
|
|
|
Max.power |
kW |
335 |
|
|
Emission standard |
/ |
China V |
|
Pumping system |
Theoretical |
m³/h |
170 |
|
|
Concrete pumping pressure |
MPa |
8 |
|
|
Theoretical pumping times |
Times/min |
21～23 |
|
Placing boom |
Reach height |
m |
66.1 |
|
|
Reach depth |
m |
48.6 |
|
|
Slewing radius |
m |
60.9 |
|
Others |
Transfer |
/ |
S valve |
