Summary
- Model Number:XGC40T
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:42M
- Max. Lifting Load:45TON
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

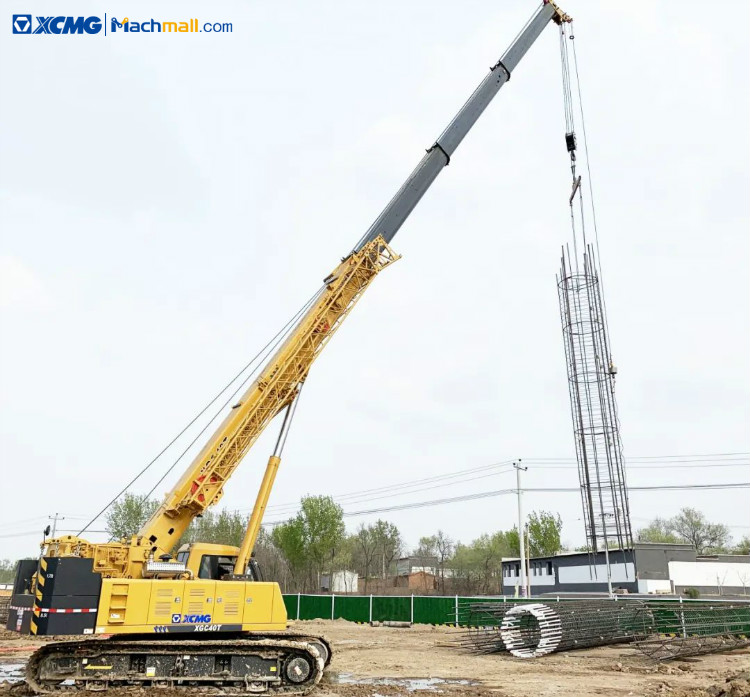

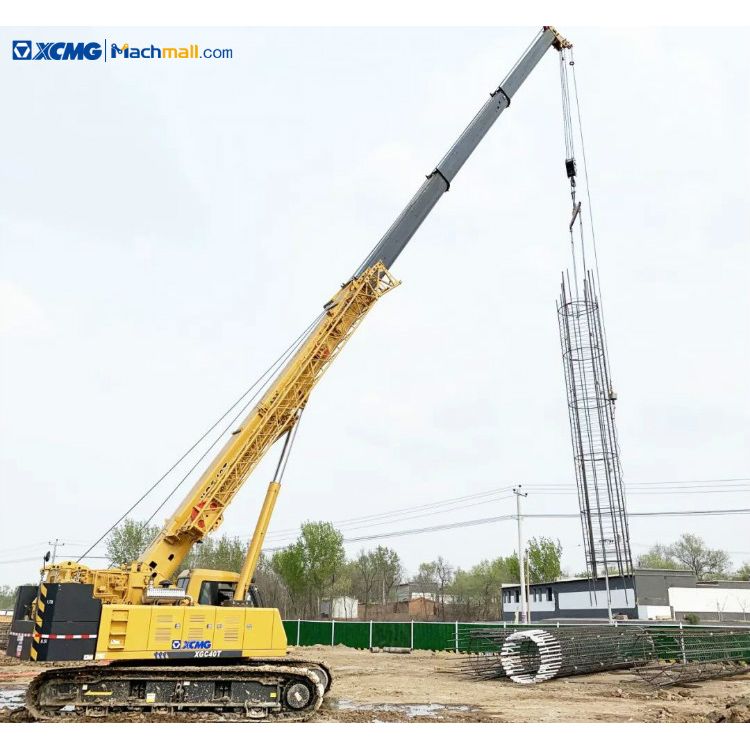

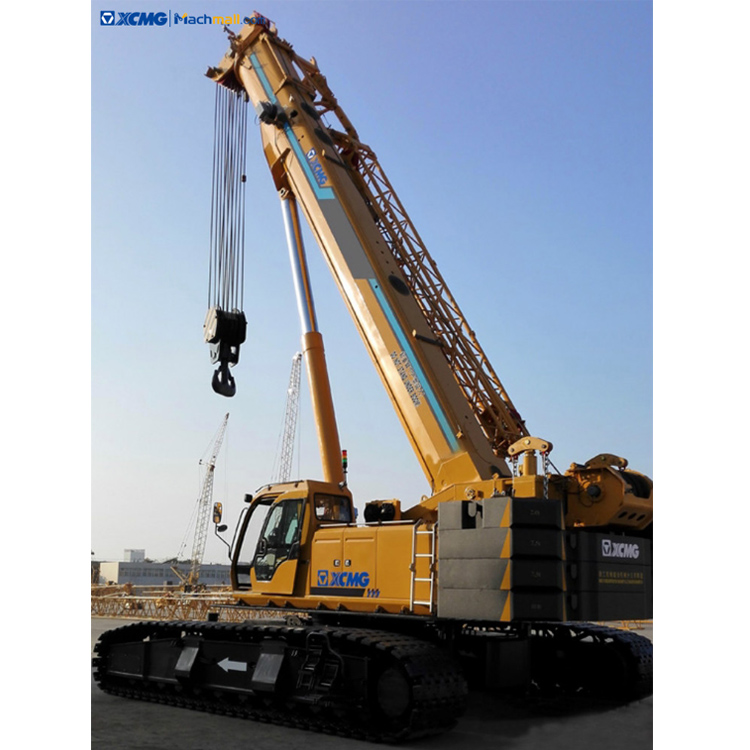

XCMG manufacturer 40 ton mobile crawler boom crane machine.
XCMG manufacturer 40 ton mobile crawler boom crane machine XGC40T with five telescopic boom sections, 42m fully-extended boom (10.9~42m), and 9.2~16m jib. Its boom length can fulfill various working radius demands.

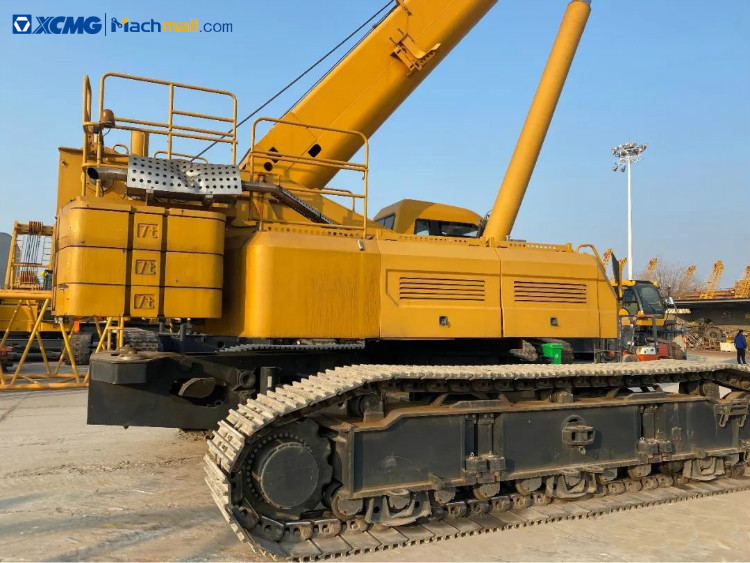

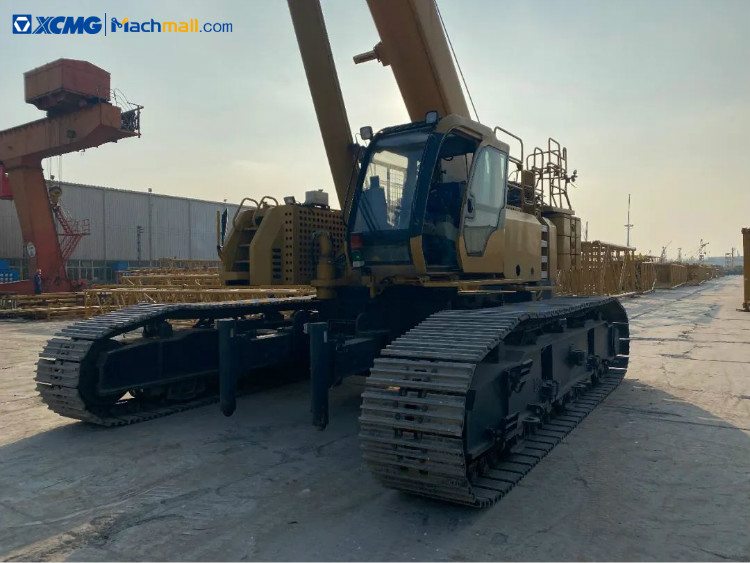

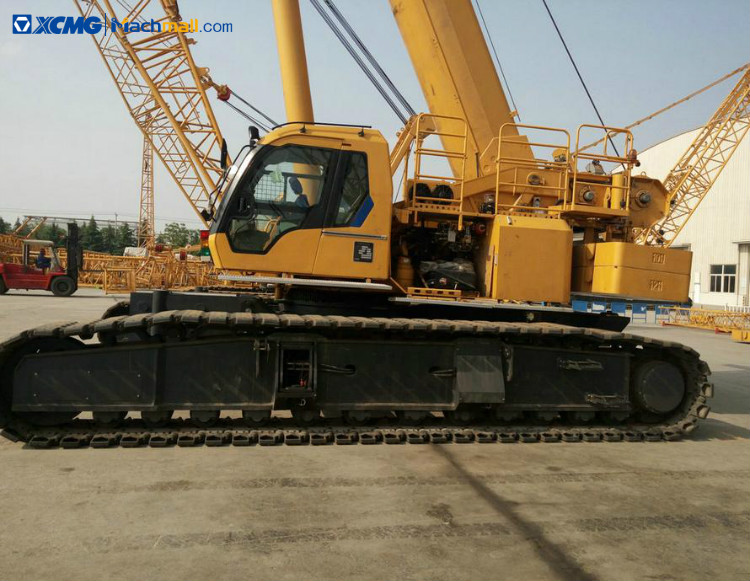

Telescoping crawler track, not only meets the high stability requirement of lifting operation, but also the outline dimension requirement for overall crane transportation.
XGC40T is of integrated transport design without disassembly, greatly save transport costs. (transport width 2.98m, transport weight ≤ 34.5t).
XCMG crawler crane Performance Characteristics:
* Equipped with two modes of no-load in high-speed and with-load in low-speed to achieve automatic switch-over for travel with-load in high-speed, overload travel protection function, to ensure the safety for travel with-load.
* Automatic direction change function of forward 1 backward travel, without changing steering direction, so as to make operation more humanization.
* Use of mixed luffing down technology, to ensure not only smooth gravity falling but also fast dynamic falling, for energy-saving, stable, fast and efficient operation.
|
Items |
Unit |
Parameter value |
|
Parameters |
- |
XGC40T |
|
Size |
|
* |
|
Crane full length |
(mm) |
13439 |
|
Crane full width |
(mm) |
4600/2980 |
|
Crane full height |
(mm) |
3112 |
|
Central distance between active and passive roller |
(mm) |
4882 |
|
Width of track shoe |
(mm) |
700 |
|
Weight |
|
* |
|
Total mass in travel state |
（kg） |
48000 |
|
Travel |
|
* |
|
Travel speed |
(km/h) |
3 |
|
Min. clearance from the ground |
(mm) |
395 |
|
Max. gradeability |
(%) |
45 |
|
Ground pressure |
(MPa) |
0.069 |
|
Power |
|
* |
|
Ear noise |
(A) |
80 |
|
Engine model |
- |
SC7H220.1G3 |
|
Rated power of engine |
(kw) |
162 |
|
Rated revoution speed of engine |
(r/min) |
2000 |
|
Capacity |
|
* |
|
Hydraulic tank capacity |
(L) |
950 |
|
Fuel oil tank capacity |
(L) |
540 |
|
Main performance parameters |
|
* |
|
Max. rated total lifting weight |
(t) |
40 |
|
Min. rated radius |
(m) |
3 |
|
Max. lifting load moment |
(kN·m) |
1423 |
|
Hoisting height --basic boom |
(m) |
11.8 |
|
Hoisting height--max. main boom |
(m) |
42.6 |
|
hoisting height--max. main boom +jib |
(m) |
58.5 |
|
Lifting boom length--main boom |
(m) |
10.9-42 |
|
Lifting boom length--jib |
(m) |
9.3/16 |
|
Jib installation angle |
(°) |
0、15、30 |
|
Working speed |
|
* |
|
Main boom hoisting time |
(s) |
40 |
|
Main boom fully extending time |
(s) |
80 |
|
Max. slewing speed |
(r/min) |
2.1 |
|
Hoisting speed (empty load, the 4th layer) main hoist system |
(m/min) |
140 |
