EMSUNTOUR Battery Electric 4 Cbm Underground Coal Mine Concrete Mixer Truck WL4BJ, MACHMALL

Engineering & Construction Machinery > Concrete Machinery > Concrete Truck Mixer

Brochure

EMSUNTOUR Battery Electric 4 Cbm Underground Coal Mine Concrete Mixer Truck WL4BJ

View All >

Model： WL4BJ

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

EMSUNTOUR Battery Electric 4 Cbm Underground Coal Mine Concrete Mixer Truck WL4BJ

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

WL4BJ

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Dimension(L*W*H)

Weight

Power(W)

Model Number

Brand Name

Place of Origin

Engineering & Construction Machinery

WL4BJ

6,400*2,000*2,300mm

11,000kg

200,000

WL4BJ

EMSUNTOUR

China

+ Add a Product

Summary

Dimension(L*W*H):6,400*2,000*2,300mm
Weight:11,000kg
Power(W):200,000
Model Number:WL4BJ
Brand Name:EMSUNTOUR
Place of Origin:China

Specifications

Weight:11000.000kg
Condition:New
Moving Type:Other
Mixing Capacity:4m³
Feeding Speed:≥2.7m³/min
Inner turning radius:3,400mm
Outer turning radius:7,600mm

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

Product Description

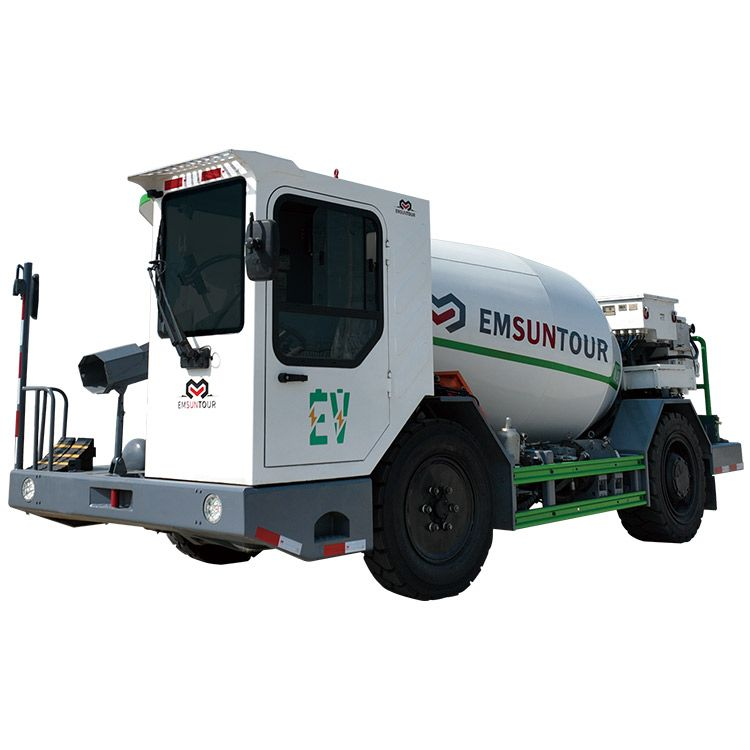

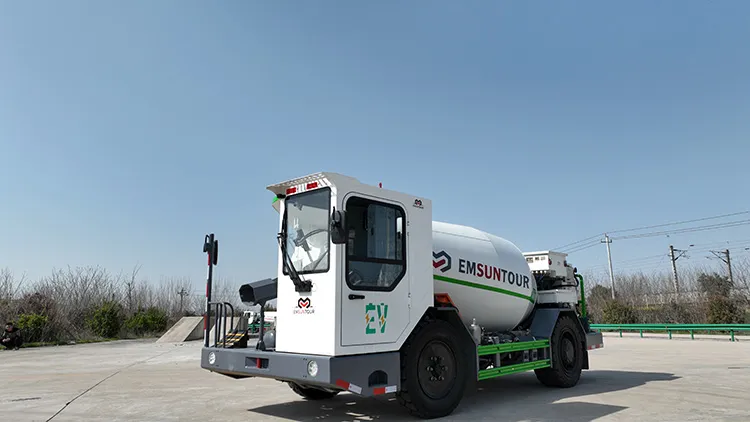

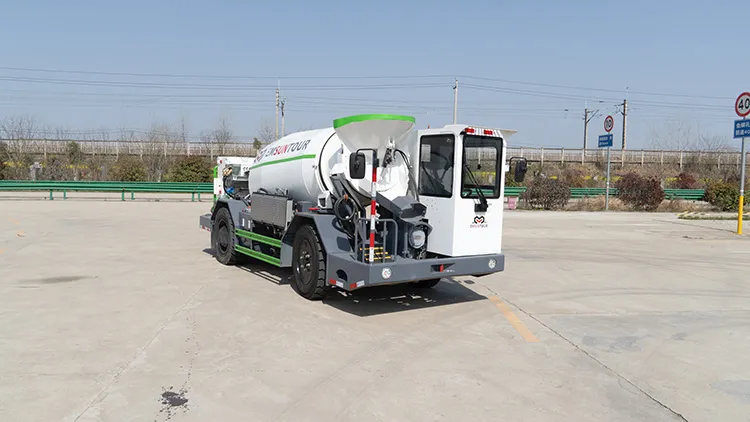

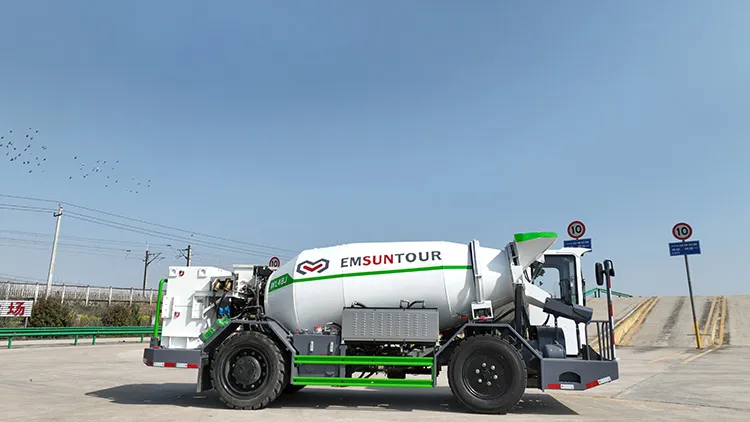

EMSUNTOUR WL4BJ is China's first purely electric, explosion-proof lithium-ion battery-powered concrete mixer and transporter, specifically designed for the concrete transshipment needs of underground coal mines. It can be directly loaded at the surface or at an underground concrete station and transported directly to the underground usage site without the need for secondary transshipment.

Main Benefits

- The WL4BJ utilizes a 230Ah high-capacity, explosion-proof lithium iron phosphate battery, characterized by zero pollution, low noise, safety, and a long operational range, which effectively enhances the air quality within coal mine shafts and reduces ventilation costs.

- It boasts strong vehicle power, making it suitable for the harsh conditions often found on steep slope roads.

- The power exchange is convenient, with efficiency usage comparable to that of fuel-powered models.

- The continuous rotation and mixing of the tank during transportation significantly improve the efficiency and quality of concrete transportation, aiding customers in operating more efficiently.

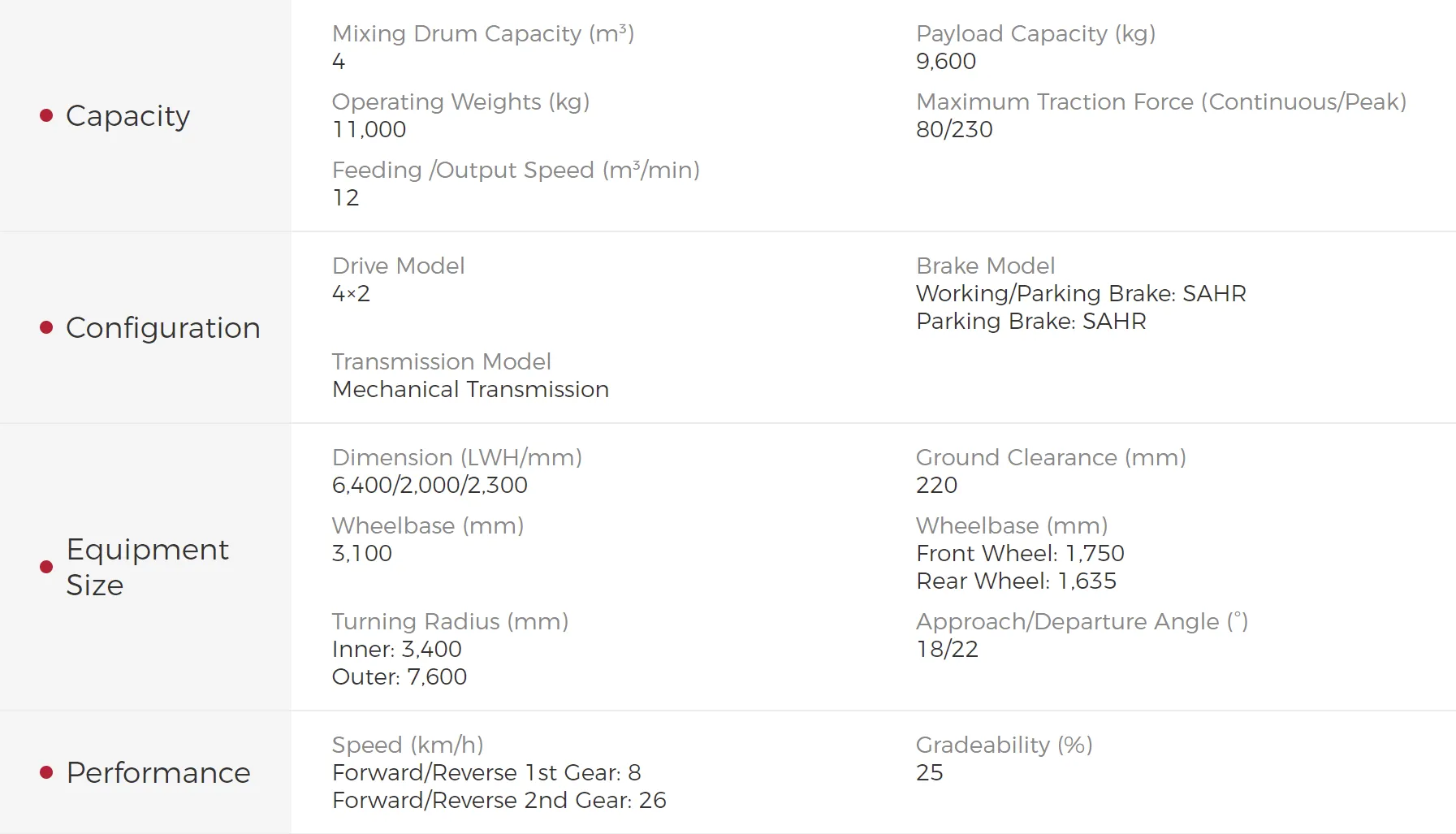

Product	Electric Underground Coal Mine Concrete Mixer Truck WL4BJ
Capacity	4m³
Dimension	6,4002,0002,300mm
Ground Clearence	220mm
Turning Radius	3,400/7,600mm

Main Parameters

Company Profile

Hubei Shentuo Intelligence Equipment Co., Ltd. (referred to as“EMSUNTOUR”) is a wholly-owned subsidiary of Xiamen Yimu Intelligence Technology Co., Ltd. It has an R&D center in Wuhan and two production bases in Suizhou and Wuhai. It is a technology-oriented company, focusing on the research and development, production, sales, after-sales and export of underground equipment for metal mining and coal mining, its products are aimed at the global market.

Based on scientific and technological innovation, EMSUNTOUR has a new generation of underground dump trucks, underground loaders, underground concrete mixer trucks and other series of battery electric and diesel models to meet customers' mining needs in various situations, in order to upgrade production efficiency and economic benefits of mining, and strive to improve the security and happiness of underground workers.

EMSUNTOUR adopts an advanced quality management system to provide top-quality underground equipment. At the same time, we adhere to intelligent manufacturing and builds up industry-leading manufacturing capabilities for underground equipment through advanced ERP and information systems to ensure product delivery cycles. In future, EMSUNTOUR will continue to be committed to all-round innovation, providing more intelligent and efficient technologies and products for the domestic and international mining industries, and working hard to promote productivity improvement, industry development, and ESG construction!
