Summary
- Dimension(L*W*H):9270*2490*3350mm
- Model Number:XLS80A
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- Weight:1.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

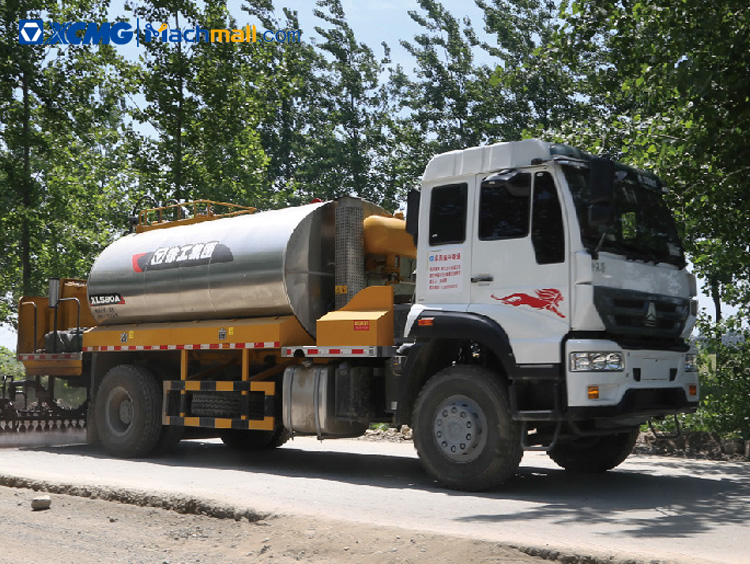

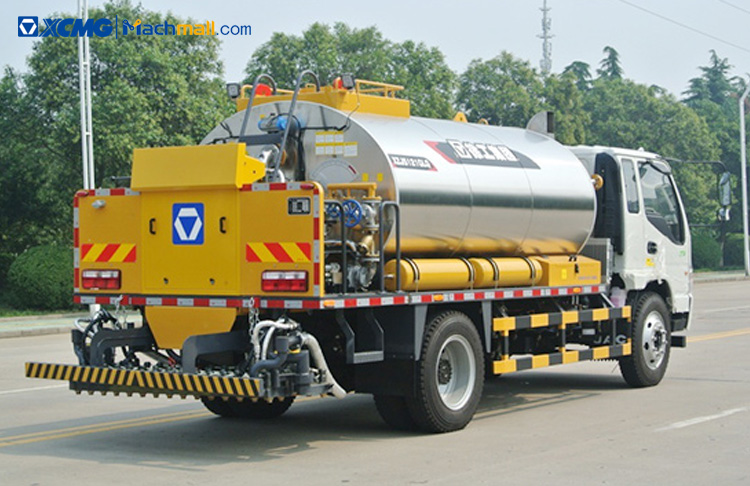

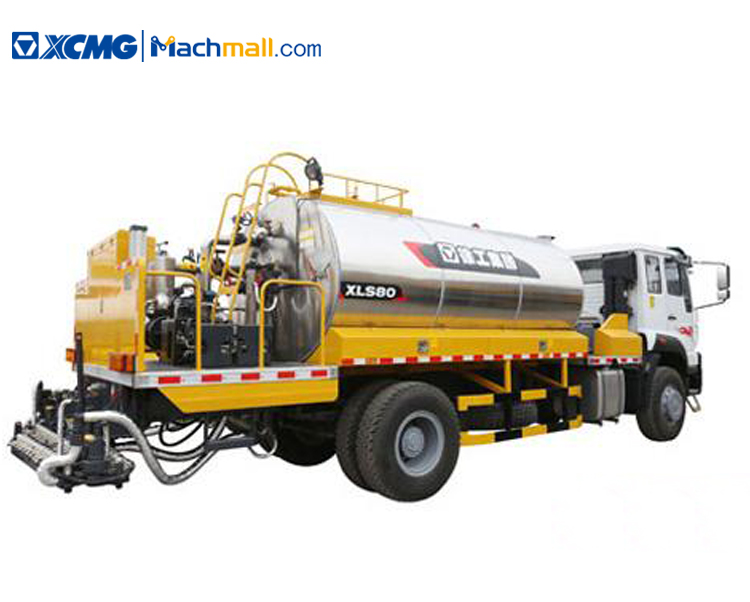

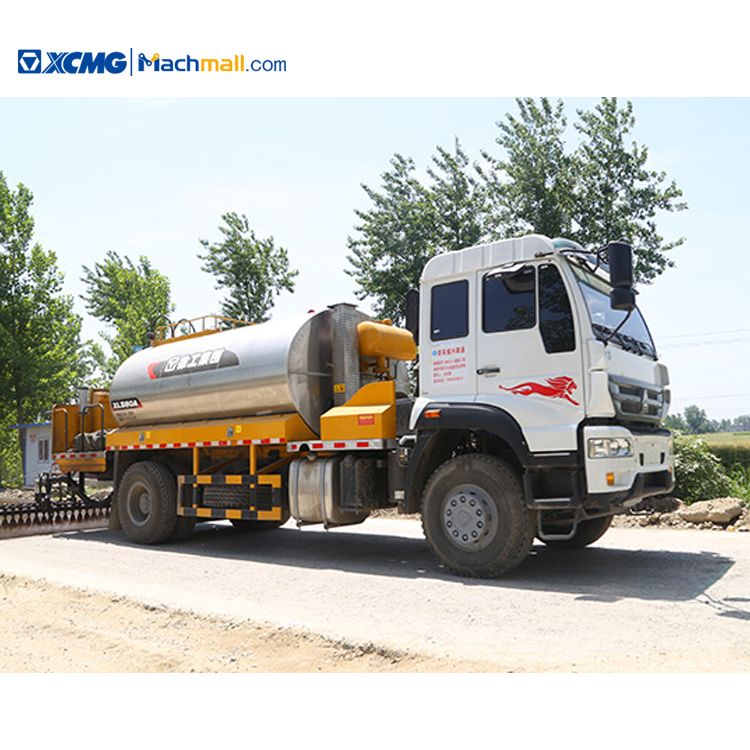

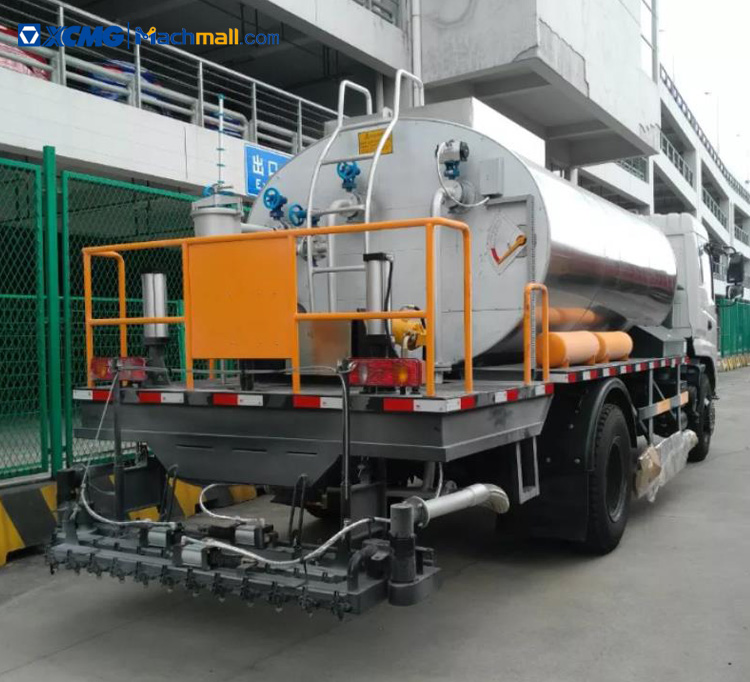

XCMG manufacturer 8 cbm asphalt distributor truck HOWO .
XCMG XLS series asphalt distributor truck XLS80A is an automation product specialized in spraying emulsified asphalt, diluted asphalt, hot asphalt, modified asphalt.

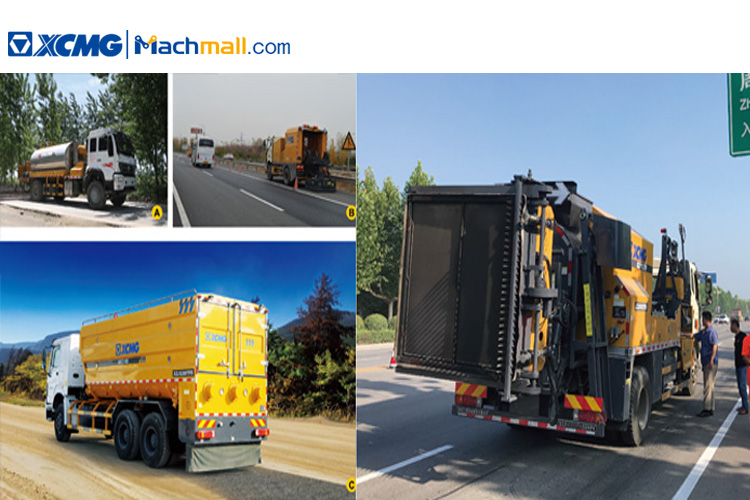

Asphalt distributor truck XLS80A is mainly used for construction and maintenance projects of highway, all grades of roads and municipal roads, suitable distributing construction of prime coat, bonding layer, upper and lower sealing layers of different grades of road surface.
XCMG asphalt distributor truck XLS80A controls the whole process of asphalt spraying through the controller, thus the asphalt spraying amount is not affected by the change of speed and the high-precision spraying is achieved.
Distributor truck XLS80A main performance and characteristics:
1. Optimized asphalt tank heating system, fast temperature rise, good thermal insulation

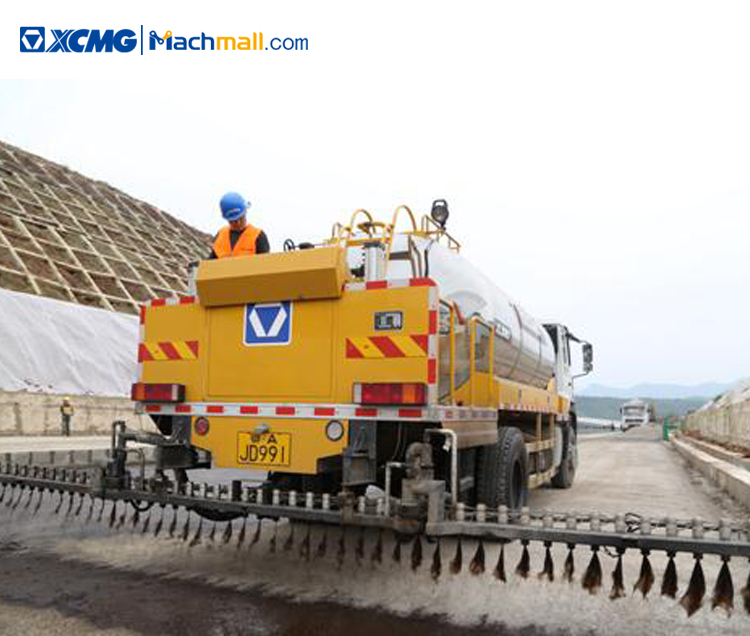

2. Folding spray beam, high asphalt sprinkle precision, good uniformity, convenient operation, triple stacking cloth can be achieved.
3. You can achieve automatic spray with the intelligent control system by simply setting the amount of automatic spraying per square meter.
4. The touch screen display in the cab can display and record the asphalt spray area, work distance and spray amount in real time.
5. Start strong spray control technology to achieve zero start spray.
6. Automatic and manual two sets of operating systems, easy to operate and reliable.
7. The heat transfer oil heating system can heat the asphalt tank, asphalt pump, asphalt pipe and spraying beam.
8. It is equipped with a hand-held spray, which can be partially sprayed on the roadside corner area.
9. Convenient cleanup pipe residual asphalt after construction with diesel and compressed air double cleaning system.
|

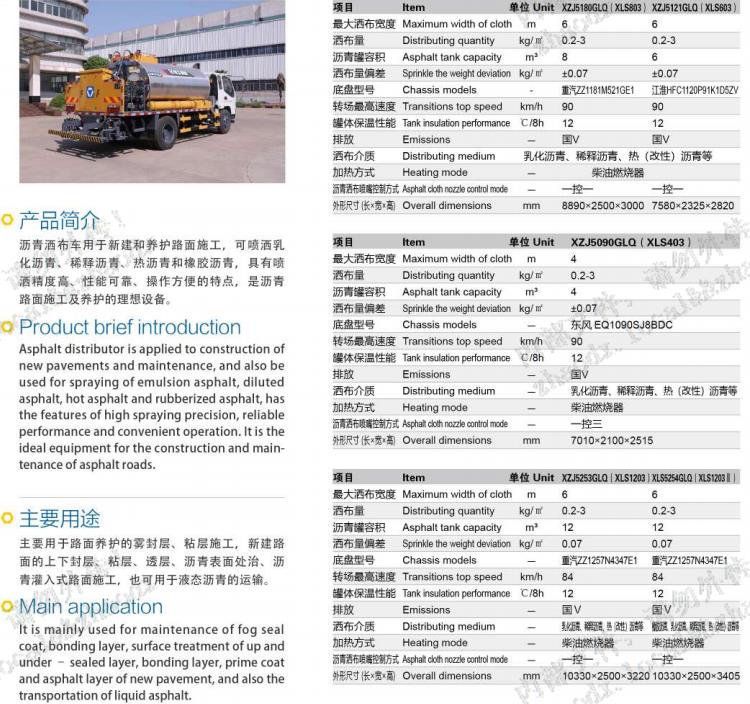

Item |
Unit |
Parameter |
|
Product model |
- |
XZJ5161GLQ(XLS80A) |
|
Max. spraying width |
m |
6 |
|
Asphalt spraying amount |
kg/m2 |
0.2-3 |
|
Capacity of asphalt tank |
m3 |
8 |
|
Operating speed |
km/h |
1.5 -15 |
|
Type |
- |
ZZ1161M5011D1 |
|
Drving model |
- |
4*2 |
|
Max. travelling speed |
km/h |
90 |
|
Overall dimension |
mm |
9270*2490*3350 |
|
Min. ground clearance |
mm |
260 |
