XCMG XGS50K 50m straight arm aerial work platform telescopic boom lift with 62.5kw engine price
Summary
- Weight:24400kg
- Overall Dimension:17460*5030*3000mm
- Table Size:2400*900*1150mm
- Max Lifting Height:50m
- Rated Loading Capacity:300 (unlimited) / 460 (limited)
- Power:62.5kw
- Model Number:XGS50K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:24400.000kg
- Condition:New
- Moving Type:Wheel
- Wheelbase:5.22/4.59m
- Max. platform height:48.3m
- Max. working range:24.6
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

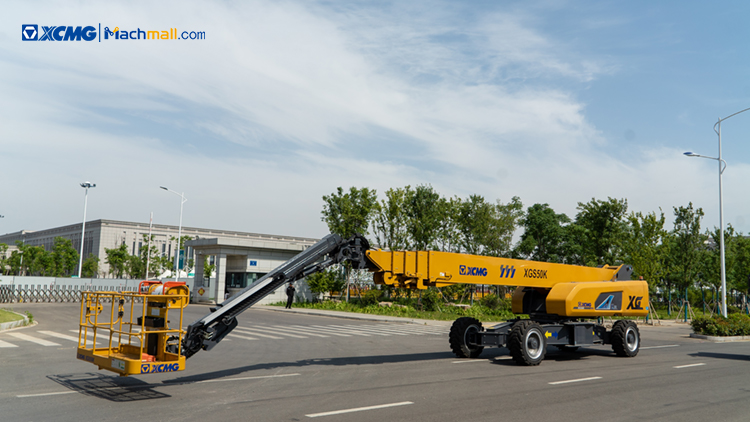

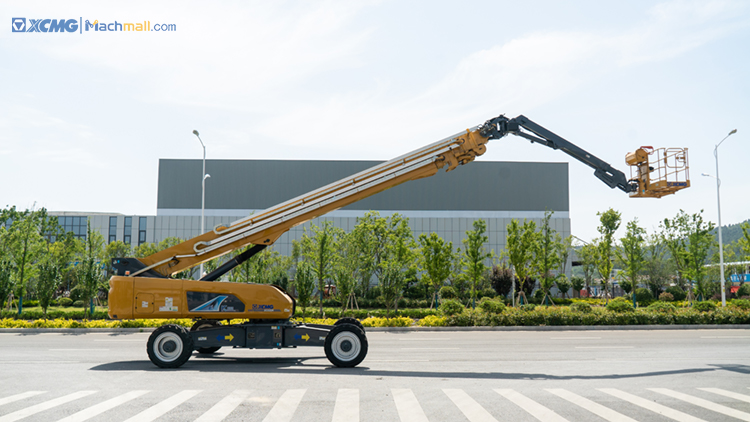

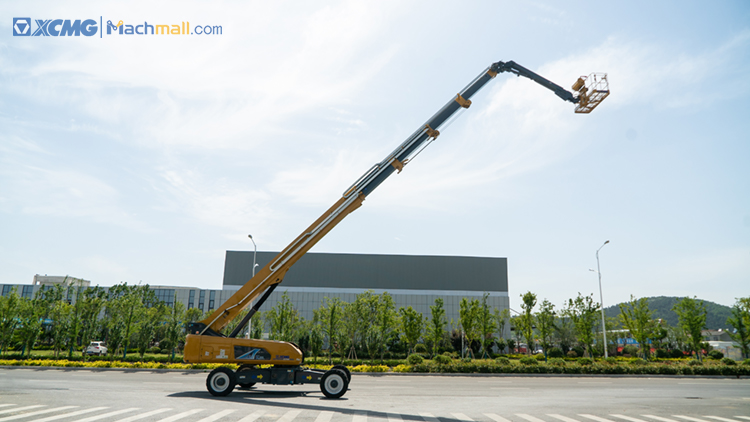

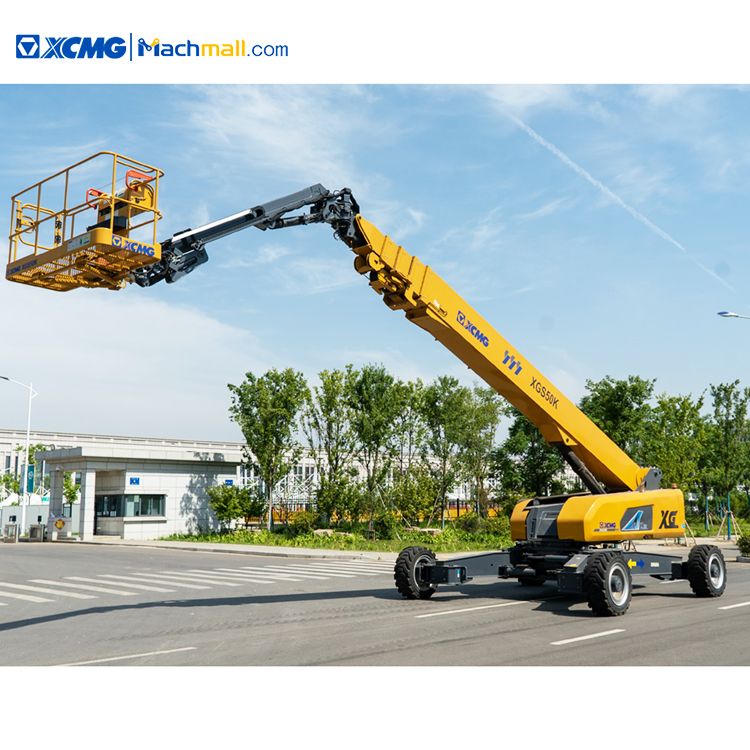

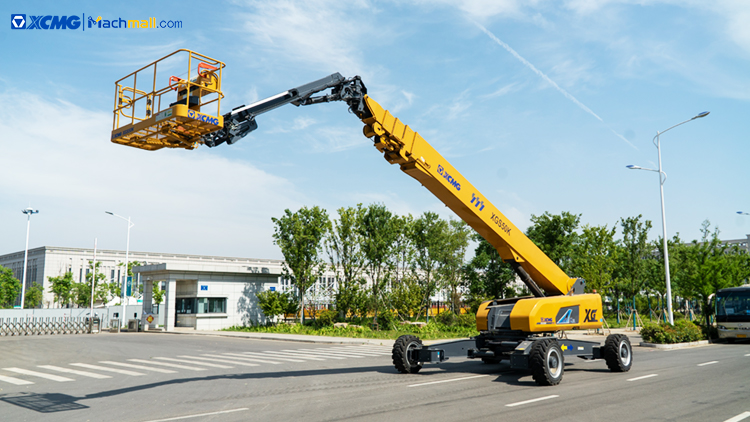

XCMG XGS50K 50m straight arm aerial work platform telescopic boom lift with 62.5kw engine.
XCMG XGS50K 50m straight arm aerial work platform telescopic boom lift with 62.5kw engine is equipped with axle balance system as standard, electronically controlled four-wheel steering, and has strong road adaptability.
Performance Characteristics:
1. Electronically controlled four-wheel steering, stepless speed regulation for boarding motion, flexible and flexible operation;
2. Equipped with a load-sensing hydraulic system, the boom weight is lowered, and the construction is more energy-efficient and stable;
3. Configure platform active security defense device, strong security;
4. Hyperbolic operation line, strong operation ability;
5. The whole machine adopts pre-safety control logic, is equipped with independent emergency power source, and the emergency vehicle is more aspect.
|
Item |
Unit |
Parameters |
|
a.Overall length (transportation state) |
m |
17.46 (12.55) |
|
b. Overall width |
m |
2.49/5.03 |
|
c. Overall height |
m |
3 |
|
d. Wheelbase |
m |
5.22/4.59 |
|
Max. working height |
m |
50.3 |
|
Max. platform height |
m |
48.3 |
|
Max. working range |
m |
24.6 |
|
Max. load capacity |
kg |
300(unlimited)/460(limited） |
|
Boom luffing range |
° |
-1～80 |
|
Slewing angle of turntable |
° |
360 |
|
Max. Tail swing |
m |
2 |
|
Dimension of platform |
m |
2.4×0.9 |
|
Slewing angle of platform |
° |
180° |
|
Overall weight |
kg |
24400 |
|
Max. traveling speed |
km/h |
4.5 |
|
Min. turning radius (shaft restricts/stretches) |
m |
9.5/6.6(Four-turn) |
|
Min. ground clearance |
m |
0.45 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
– |
445/55-25 R28 |
|
Engine model |
– |
YC 4FA85-T300 |
|
Engine rated power |
kW/(r/min) |
62/2200 |
