Summary
- Weight:18400kg
- Overall Dimension:14300*2490*3070mm
- Table Size:2400*900mm
- Max Lifting Height:34m
- Min Lifting Height:3m
- Rated Loading Capacity:230/340kg
- Power:36.8kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS34
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:18400.000kg
- Condition:New
- Moving Type:Other
- Max. gradeability:45%
- Min. ground clearance:260mm
- Max. traveling speed:5km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

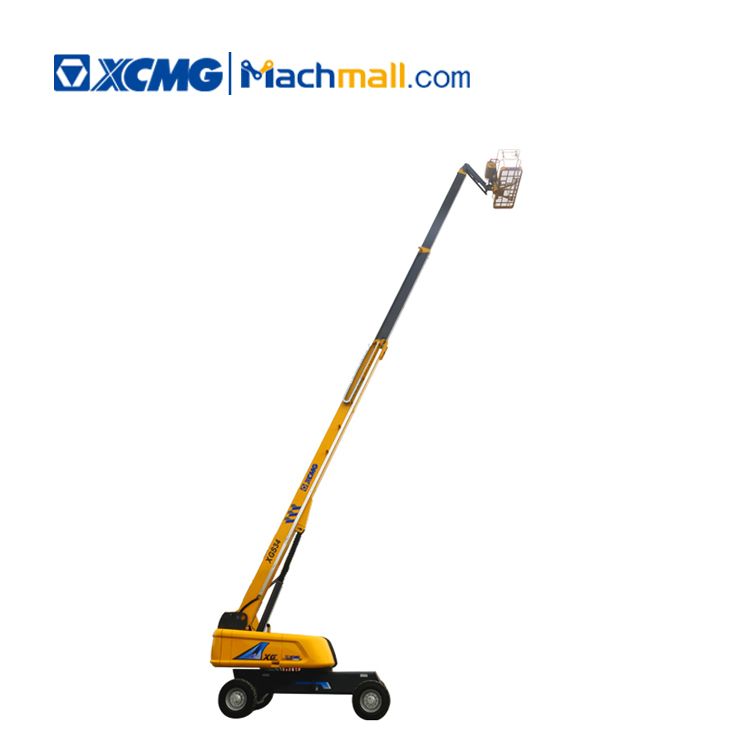

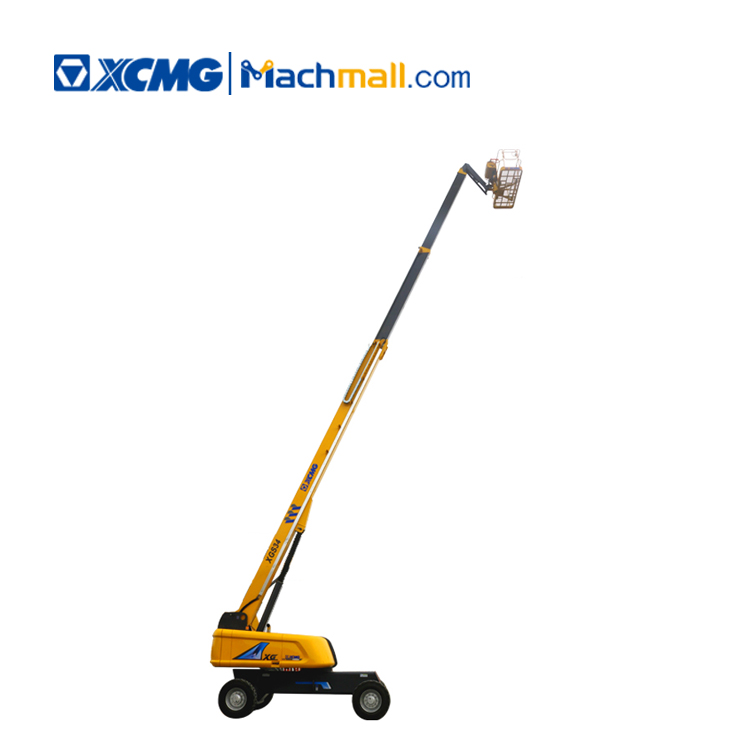

XCMG factory 34m XGS34 aerial work platform.
XCMG aerial work platform XGS34 electronic control turning, wide foam tires, excellent climbing driving, adaptive to various complicated road conditions; dual loading operation curves for real-time loading control; the widest operation reach of proucts of the same class.
XCMG XGS34 aerial work platform meets demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry.
Advantages and features:
1. XCMG XGS34 aerial work platform the widest of the products of the same class, which improves the operation capacity; Strong driving capacity, grade ability up to 45%.
2. Enabling aerial work platform XGS34 to incomparably move in any complicated site.
3. Real-time monitor the load, effectively making use of boom and making its work performance at leading edge.
4. Specific human-machine interactive system, forming a perfect safety protection system.
|

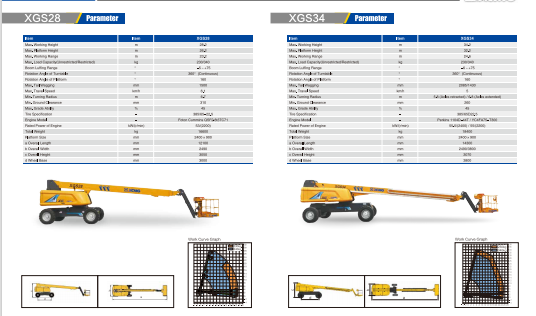

Item |
Unit |
Parameter |
|
Overall length of complete machine |
mm |
14300 |
|
Overall width (With shaft retracted/extended) |
mm |
2490/3800 |
|
Overall height |
mm |
3070 |
|
Wheelbase |
mm |
3800 |
|
Max. working height |
m |
34.2 |
|
Max. platform height |
m |
32.2 |
|
Max. working range |
m |
24.6 |
|
Max. load capacity |
kg |
230 (unrestricted)/340 (restricted) |
|
Luffing range of boom |
° |
-6 ~ +75 |
|
Slewing angle of turntable |
° |
360° |
|
Max. rearward slewing (With shaft retracted/extended) |
mm |
2085/1430 |
|
Dimension of platform |
mm |
2400×900 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
18400 |
|
Max. traveling speed |
km/h |
5 |
|
Min. turning radius (axle retracted/extended) |
m |
8.2/10.8 (Two-wheel steering) |
|
Min. ground clearance |
mm |
260 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
- |
385/65D22.5 |
|
Engine model |
- |
Perkins1104D-44T |
|
Engine rated power |
kW/(r/min) |
55.5/(2400) |
