Summary
- Weight:12500kg
- Overall Dimension:10150*2490*2800mm
- Table Size:2400*900mm
- Max Lifting Height:24m
- Min Lifting Height:2.8m
- Rated Loading Capacity:230/340kg
- Power:43/(2600)kW/(r/min)
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Telescopic lift
- Model Number:XGS24
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:12500.000kg
- Condition:New
- Moving Type:Other
- Max. gradeability:25%
- Min. ground clearance:230mm
- Min. turning radius:6m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

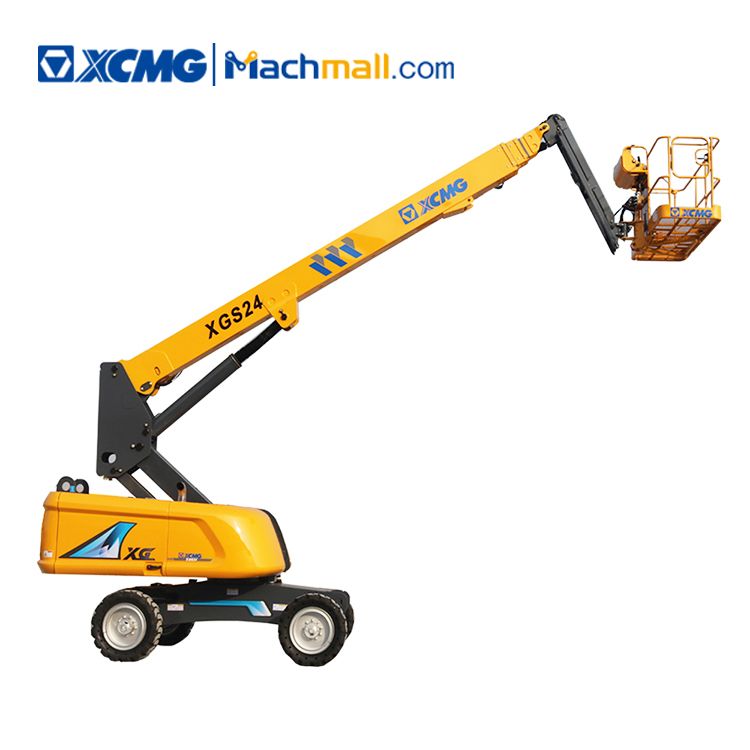

XCMG 24m hydraulic telescopic boom lift platform XGS24.
XCMG aerial work platform XGS24 highlights with outstanding performance, efficiency, dynamics and easy operation.
XCMG aerial work platform XGS24 is leading in the industry with maximum carrying capacity of 340kg, high operation height and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
1.XCMG aerial work platform XGS24 realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
2.XCMG aerial work platform XGS24 is excellent in drive and adaptability to road.
3.Making use of boom and making its work performance at leading edge.
4.Improves safety of extending mechanism and extends service life of steel rope.
5.XCMG aerial work platform XGS24 implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.

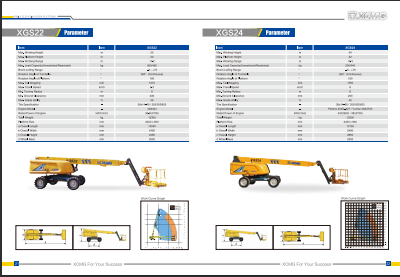

Item |
Unit |
Parameter |
Overall length of complete machine |
mm |
10150 |
Overall width of complete machine |
mm |
2490 |
Overall height |
mm |
2800 |
Wheelbase |
mm |
2500 |
Max. working height |
m |
24 |
Max. platform height |
m |
22 |
Max. working range |
m |
18.3 |
Max. load capacity |
kg |
230/340 |
Luffing range of boom |
° |
-5 ~ +75 |
Slewing angle of turntable |
° |
360 |
Max. tail swing |
mm |
1550 |
Dimension of platform |
mm |
2400×900 |
Slewing angle of platform |
° |
160 |
Overall weight |
kg |
12500 |
Max. traveling speed |
km/h |
6 |
Min. turning radius |
m |
6 |
Min. ground clearance |
mm |
230 |
Max. gradeability |
% |
45 |
Specification of tire |
- |
Solid tire 36×14-20/7.5 Or Foam tire 355/55D625 |
Engine model |
- |
Perkins 404D-22T |
Engine rated power |
kW/(r/min) |
43/(2600) |
