Summary
- Rated Load:5 ton
- Dimension(Long* Breadth * High):8225*3016*3515mm
- Type:wheel loader
- Place of Origin:Xuzhou, China
- Model Number:ZL50GN
- Brand Name:XCMG
Specifications
- Weight:17500.000kg
- Engine Brand:WEICHAI
- Rated Load:3-5 ton
- Bucket Capacity:2.5 - 3.5m³
- Wheel base:3300mm
- dump clearance at max lift:3100~3780mm
- Bucket capacity:2.5-4.5CBM
- max. breakout force:175±5 kN
- Power:162kw
- Machine Weight:17500kg

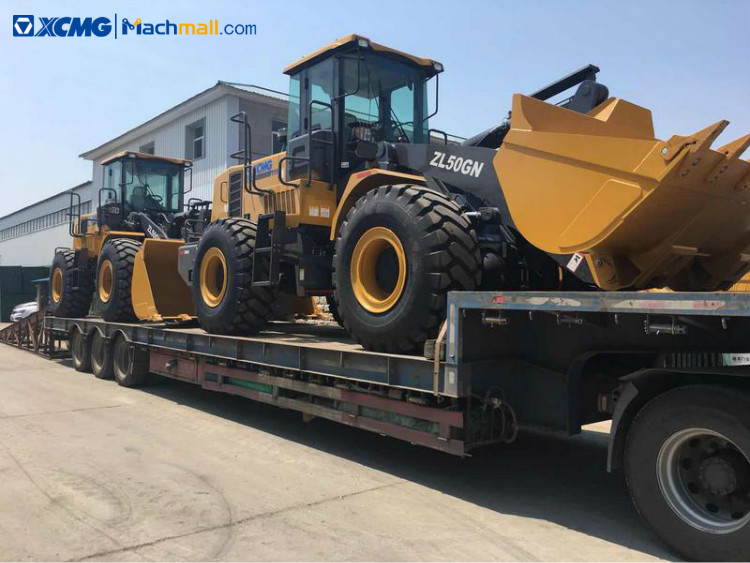

Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

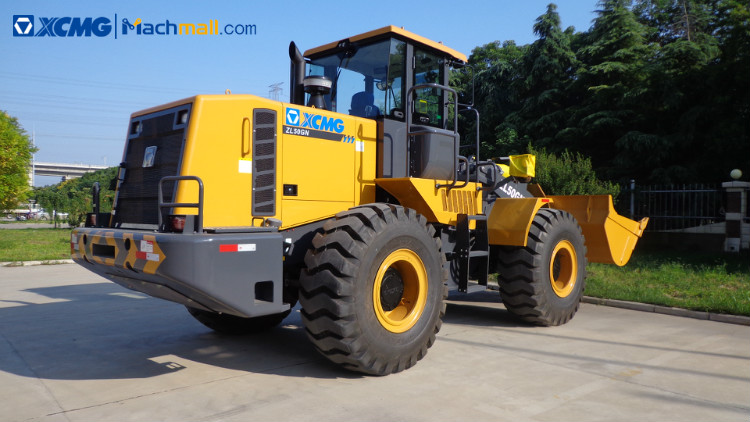

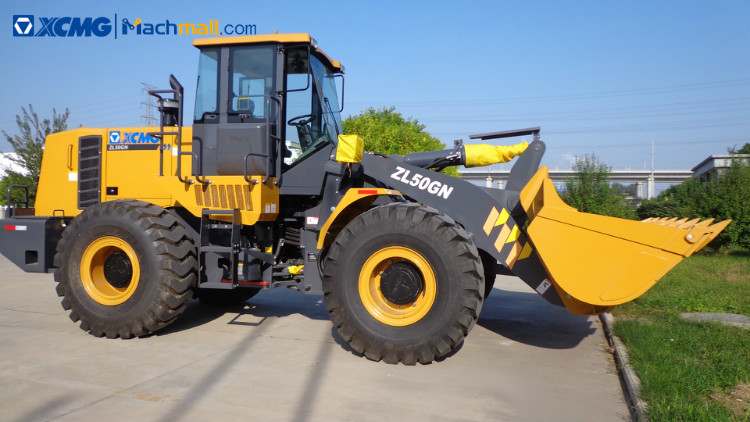

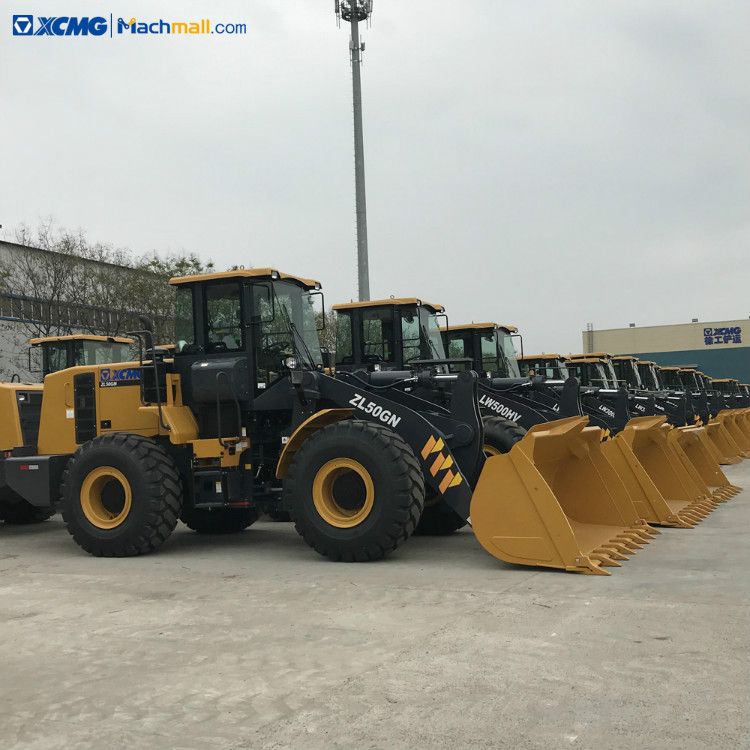

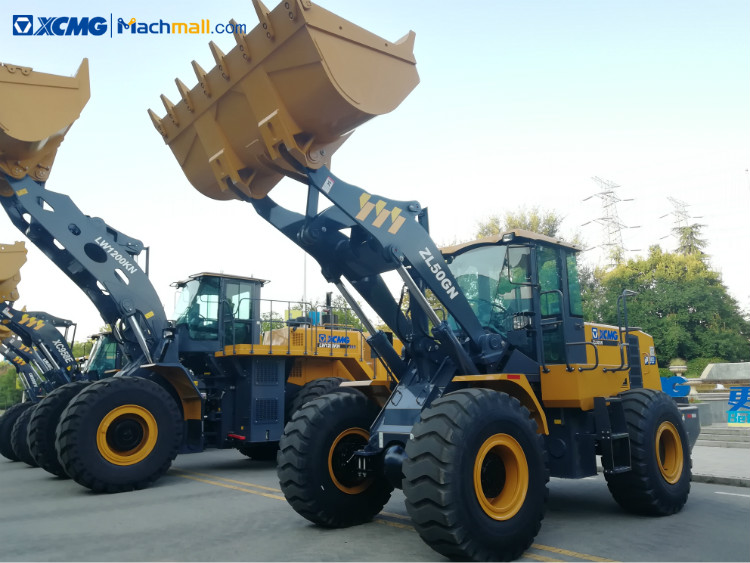

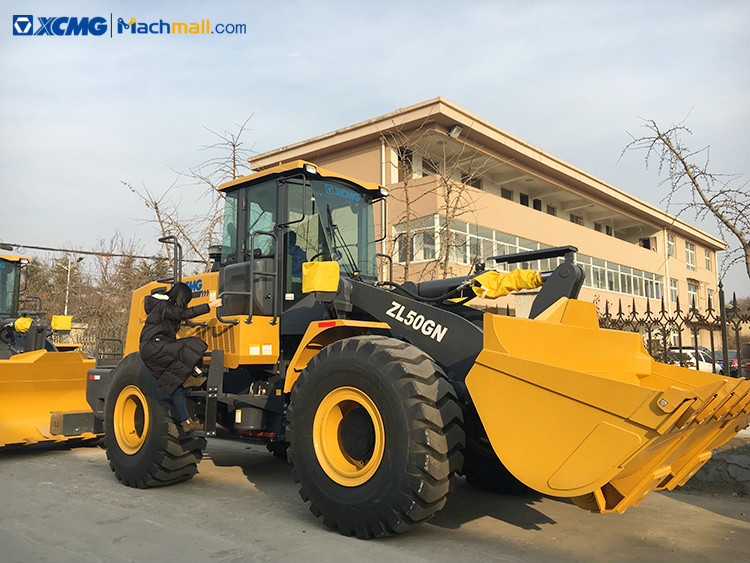

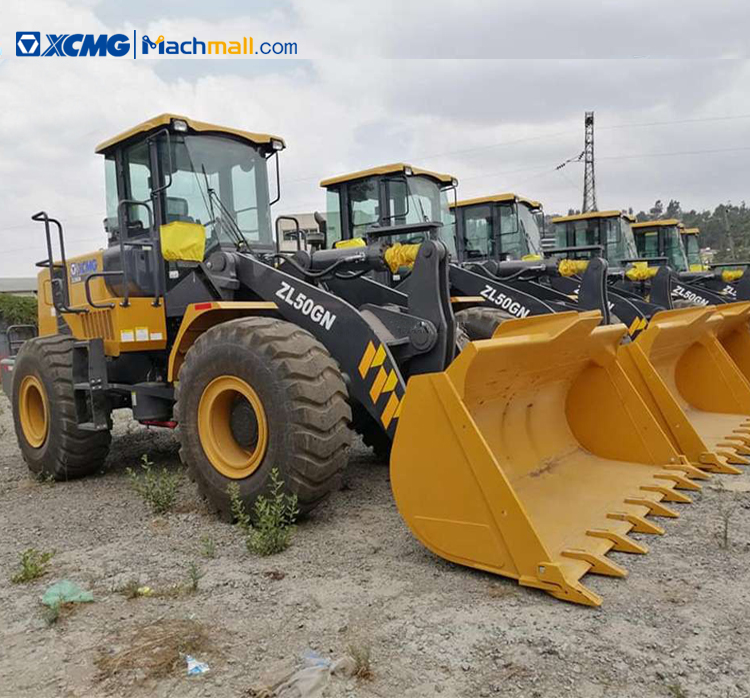

XCMG ZL50GN wheel loader 5 ton.

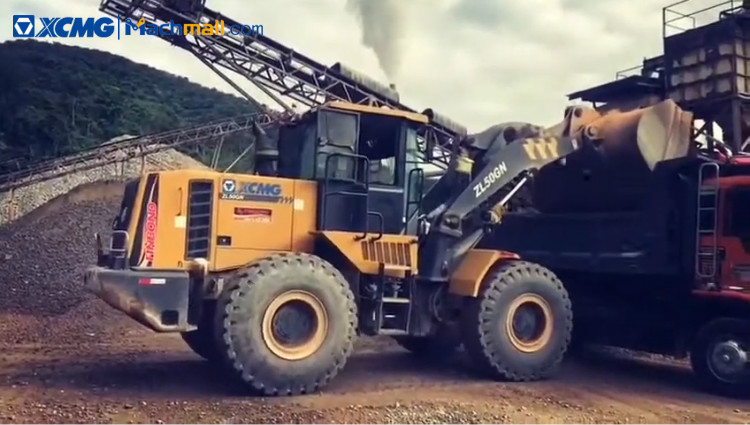

Focusing on customer value and emphasizing customer experiences, XCMG ZL50GN is the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics.
XCMG ZL50GN Model Characteristics:
1. Exclusive high torque and high efficiency drive chain features reasonable matching.
2.Characteristic super-heavy-load structure parts are free of redundant weight.
3. With extended wheelbase, the working capacity and stability are leading the industry.
4. The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption.

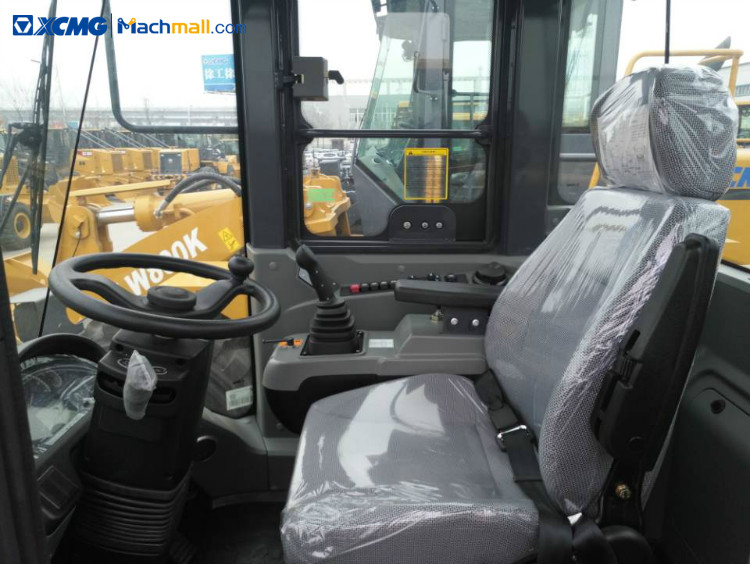

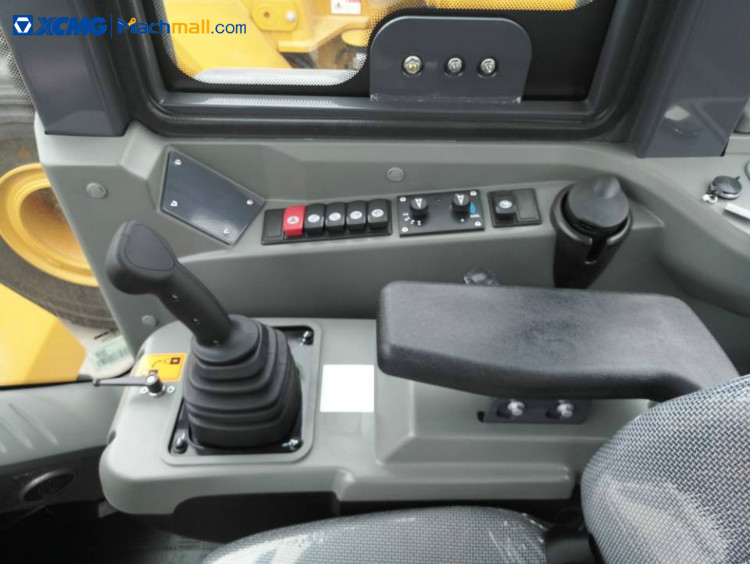

5. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
6. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
|
Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
5000 |
|
Bucket capacity |
m³ |
2.5~4.5 |
|
Machine weight |
kg |
17500±300 |
|
Dump clearance at maximum lift |
mm |
3100~3780 |
|
Reach at maximum lift |
mm |
1100~1220 |
|
Wheel base |
mm |
3300 |
|
Tread |
mm |
2250 |
|
Max.breakout force |
kN |
175±5 |
|
Max.horse power |
kN |
160±5 |
|
Hydraulic cycle time-raise |
s |
≤6 |
|
Total hydraulic cycle time |
s |
≤10.5 |
|
Min. turning radius over tyres |
mm |
5925±50 |
|
Articulation angle |
° |
38 |
|
Gradeability |
° |
30 |
|
Tyre size |
|
23.5-25-16PR |
|
Overall machine dimension L×W×H |
mm |
8225*3016*3515 |
|
Model |
|
WD10G220E21 |
|
Rated Power |
kW |
162 |
|
Travel Speed |
Ⅰ-gear(F/R) |
13/17 |
|
|
Ⅱ-gear(F) |
41 |
