Summary
- Rated Load:5 ton
- Dimension(Long* Breadth * High):8225*3016*3515mm
- Type:wheel loader
- Place of Origin:Xuzhou, China
- Model Number:ZL50GN
- Brand Name:XCMG
Specifications
- Weight:17500.000kg
- Engine Brand:WEICHAI
- Rated Load:3-5 ton
- Bucket Capacity:4 - 6m³
- Bucket capacity:2.5-4.5CBM
- dump clearance at max lift:3100~3780mm
- Wheel base:3300mm
- max. breakout force:175±5 kN
- Power:162kw
- Machine Weight:17500kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

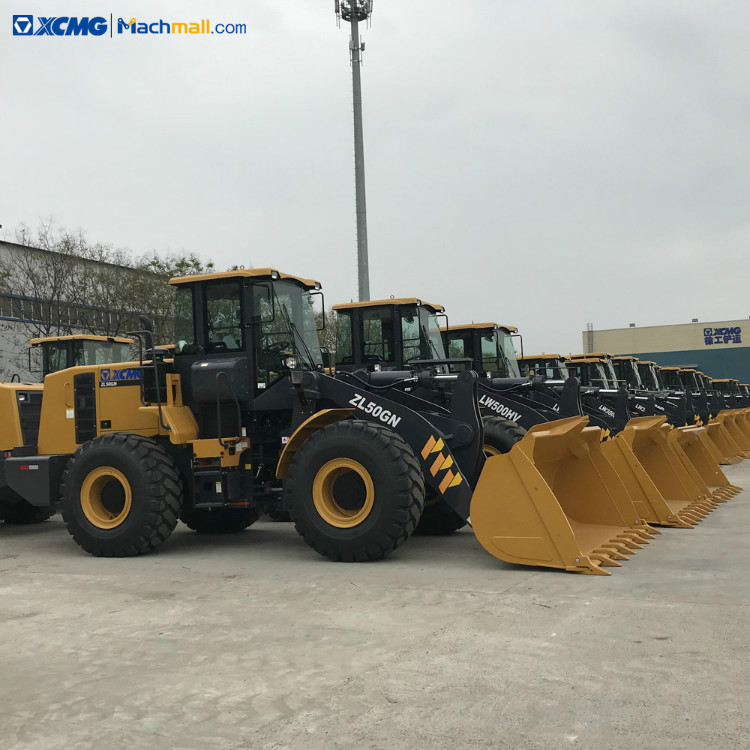

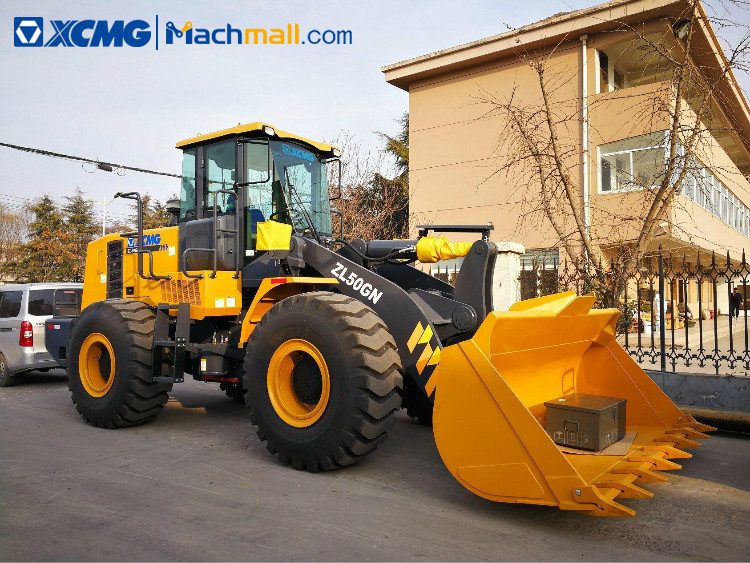

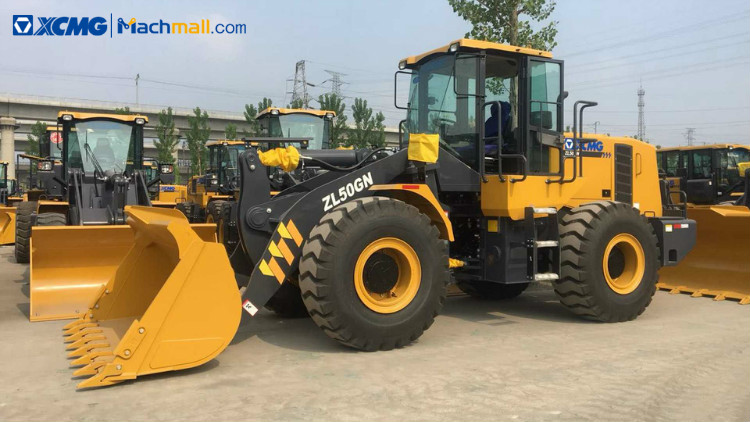

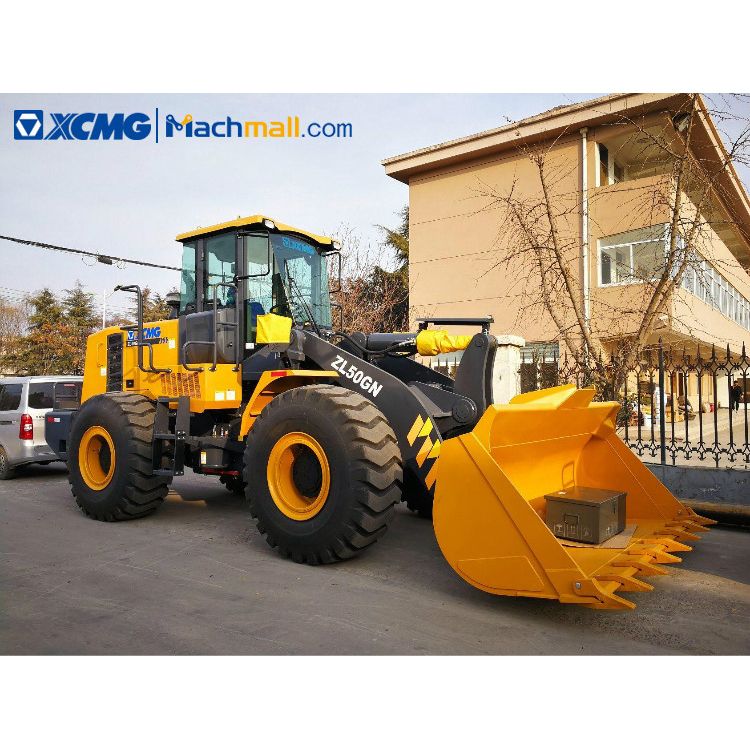

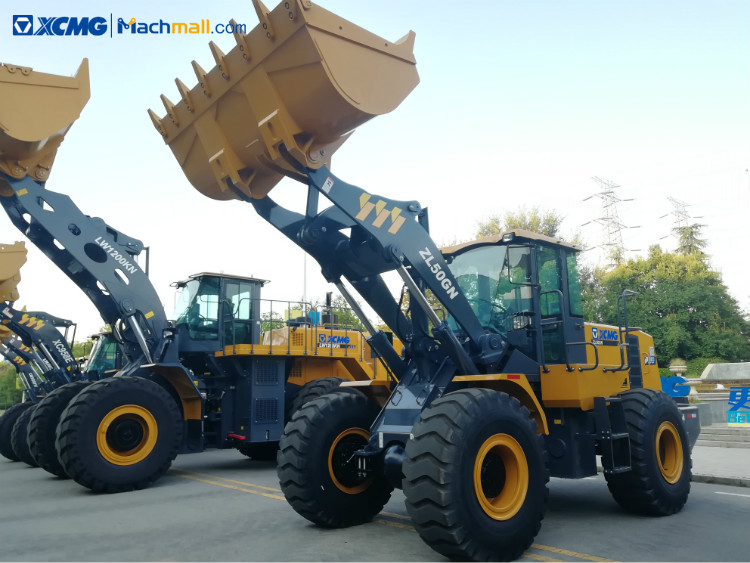

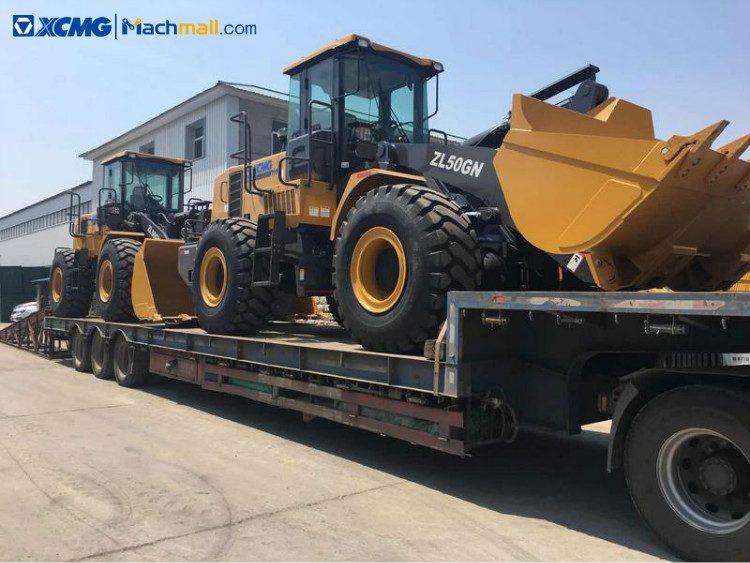

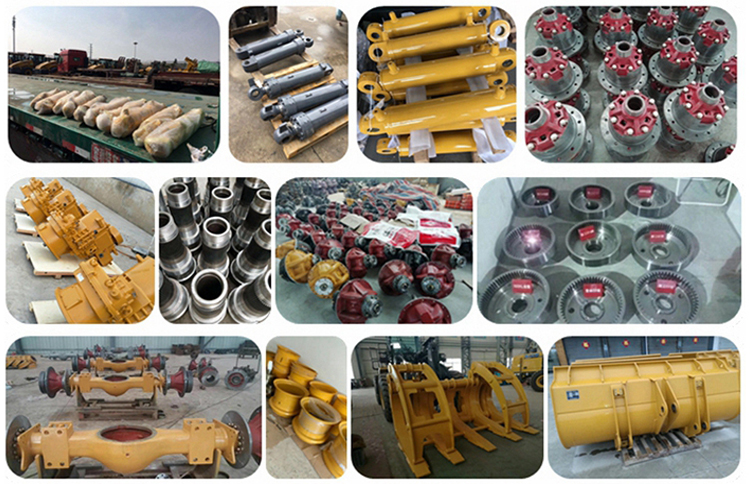

XCMG ZL50GN with ZL50GN parts.

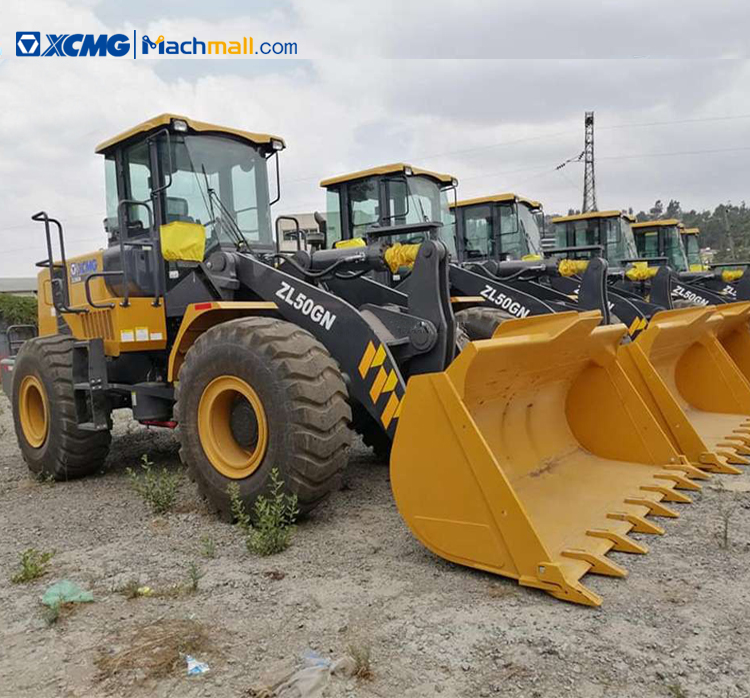

XCMG ZL50GN wheel loader is the most popular model of China 5t wheel loader,is the latest cross-generationproduct developed ,the first-choice equipment for the production organizationin the fields of ports, mines, engineeringconstructions, and logistics.
ZL50GN wheel loader performance highlights:
1.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

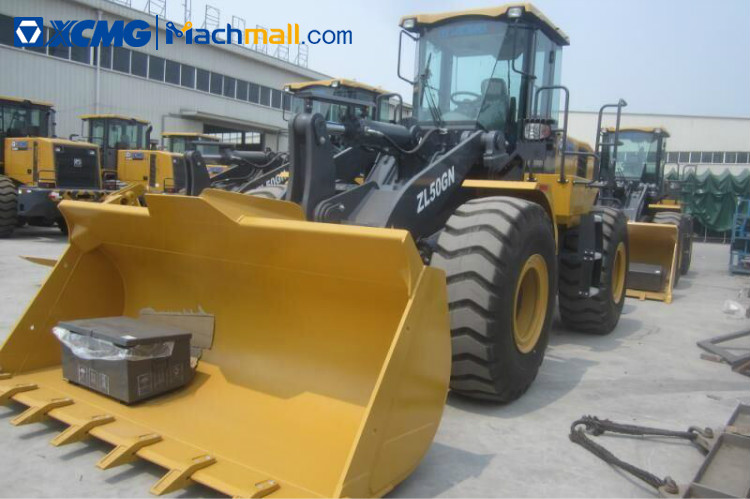

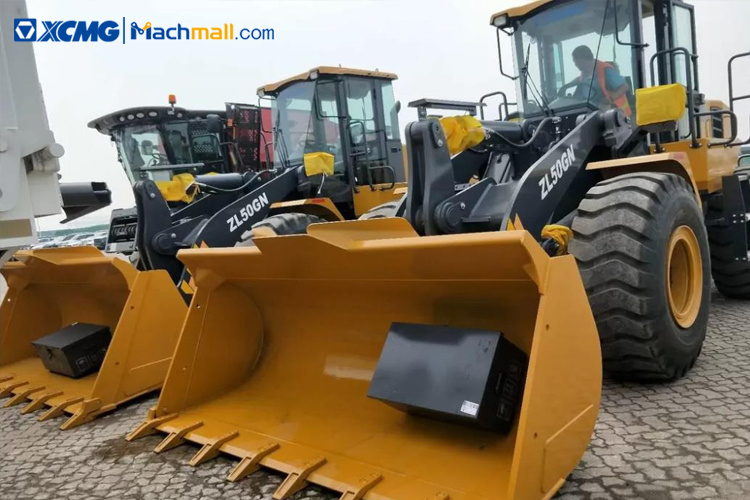

2.The large rock bucket with capacity of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toothholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
3.The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
4.160kN breakout force handle allkinds of materials with ease,≥3.5m high dumping capacityhandle the severe conditions with ease.
ZL50GN wheel loader optional parts:
Side-dump bucket/ Clipping plier I (paired teeth)/ Clipping teeth II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/ Snowplow/Pallet fork
|

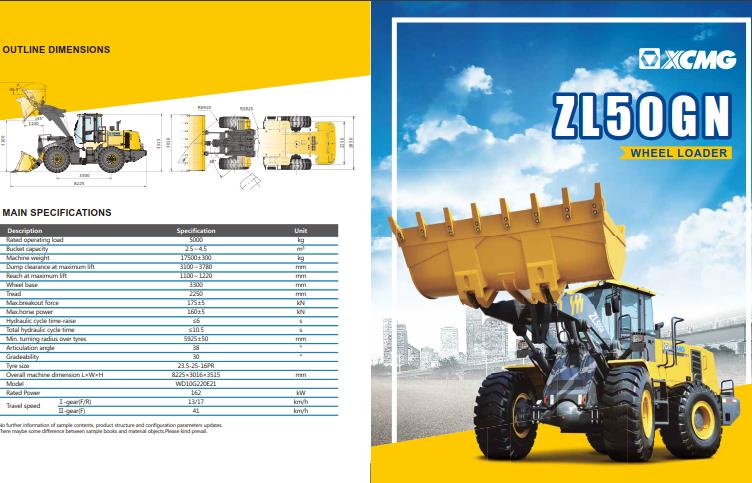

Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
5000 |
|
Bucket capacity |
m³ |
2.5~4.5 |
|
Machine weight |
kg |
17500±300 |
|
Dump clearance at maximum lift |
mm |
3100~3780 |
|
Reach at maximum lift |
mm |
1100~1220 |
|
Wheel base |
mm |
3300 |
|
Tread |
mm |
2250 |
|
Max.breakout force |
kN |
175±5 |
|
Max.horse power |
kN |
160±5 |
|
Hydraulic cycle time-raise |
s |
≤6 |
|
Total hydraulic cycle time |
s |
≤10.5 |
|
Min. turning radius over tyres |
mm |
5925±50 |
|
Articulation angle |
° |
38 |
|
Gradeability |
° |
30 |
|
Tyre size |
|
23.5-25-16PR |
|
Overall machine dimension L×W×H |
mm |
8225*3016*3515 |
|
Model |
|
WD10G220E21 |
|
Rated Power |
kW |
162 |
|
Travel Speed |
Ⅰ-gear(F/R) |
13/17 |
|
|
Ⅱ-gear(F) |
41 |
