Summary
- Fork Width:110mm
- Fork Length:1070 mm
- Min Lifting Height:100mm
- Max Lifting Height:3500mm
- Rated Loading Capacity:1000-2000 kg
- Power Source: DC MOTOR
- Type: Powered Stacking Forklift
- Model Number:CDW1530
- Brand Name:YANCHA
- Place of Origin:Jiangsu, China
Specifications
- Weight:595.000kg
- Condition:New
- Moving Type:Other
- Wheels: PU Wheel
- Overall Dimensions:1750*800*2090mm
- Battery:24V/80A
- Certification:CE
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

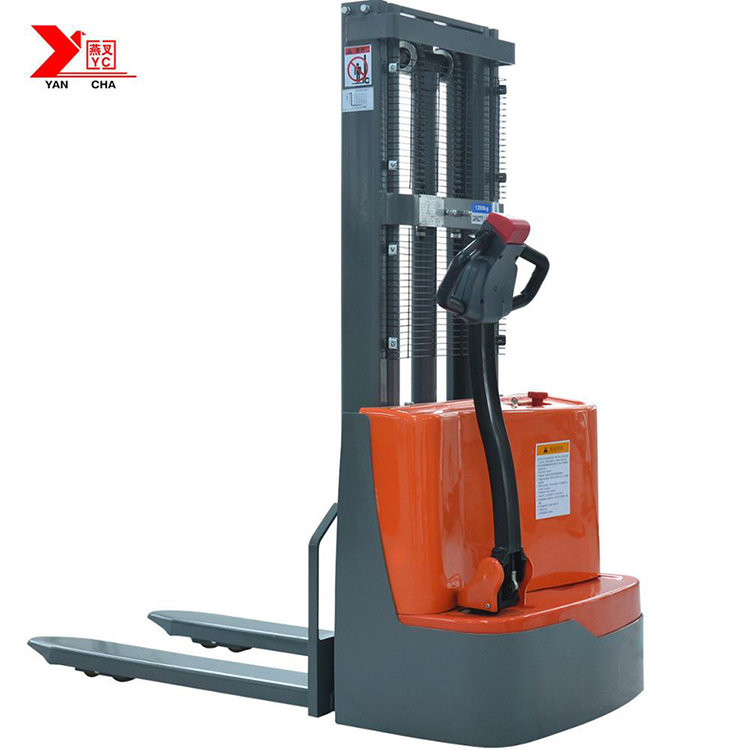

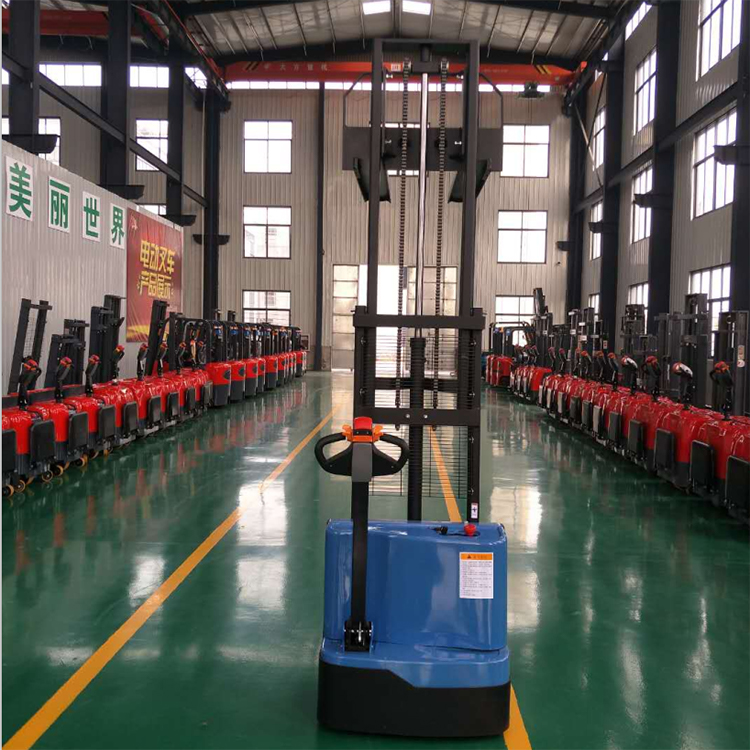

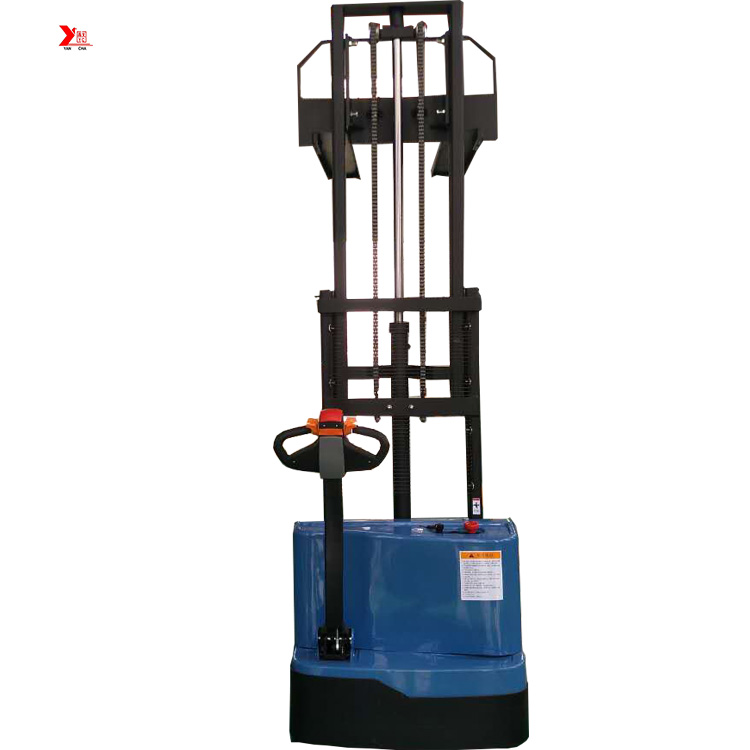

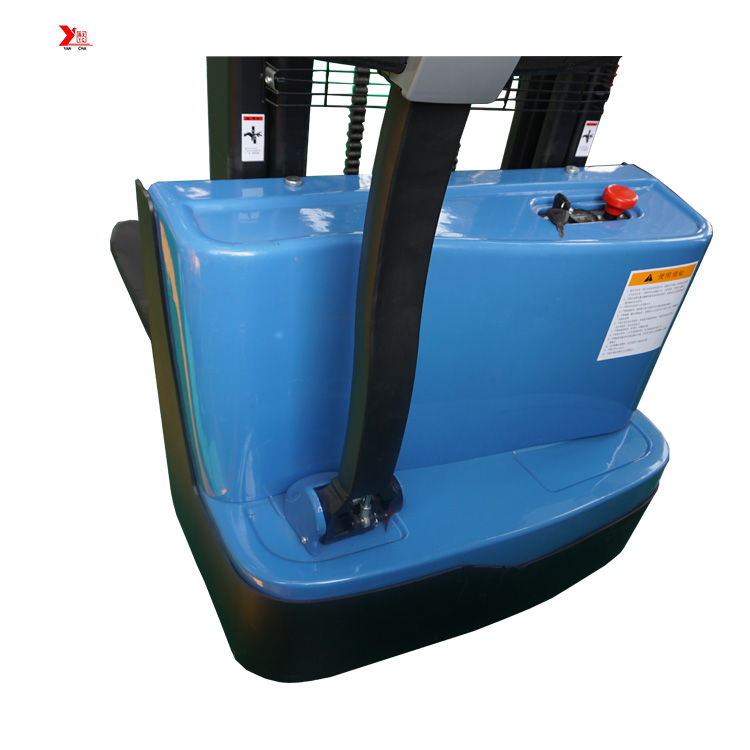

YANCHA walkie Electric Stacker CDW1530 1ton 2 ton.
An electric stacker is a storage device that uses batteries as energy and electric motors as power. The main structure includes batteries, motors, hydraulic pumps, cylinders, piston rods, shift forks, chains, controllers, etc.
Its main function is to raise the weight to the required height. YANCHA walkie Electric Stacker CDW1530 1ton 2 ton is generally used in warehouses, workshops and other places where logistics is required. With the use of pallets, it can greatly improve storage efficiency. Therefore, the electric pallet stacker is also called the electric pallet stacker.
|
project |
Unit |
CDW1530 |
|
Load Capacity |
|
1.5T |
|
Lift Height |
m |
3 |
|
Color |
|
blue/yellow/orange or customer demands |
|
Wheel |
|
PU wheel |
|
Fork length |
mm |
1070 |
|
Weight |
kg |
595 |
|
Dimension |
mm |
1750*800*2090 |
|
The Min. Turning Radius |
mm |
1390 |
|
Width between two Forks |
mm |
355 |
|
Outer width between two Forks |
mm |
680 |
|
Front Wheel Dimension |
mm |
80*70 |
|
Drive Wheel Dimension |
mm |
210*75 |
|
Lift motor |
kw |
2.2 |
|
Driving motor |
kw |
0.75 |
|
Battery |
|
24V/80A |
|
Lift speed with load |
mm/sec |
135 |
|
Driving speed with load |
km/h |
3.5 |
