Summary
- Loder Weight:2000kg*2
- Dimension(L*W*H):3200*1500*2500
- Max Lifting Height:250m
- Hoisting Speed:33m/min
- Rated Loading Capacity(kg):2000kg*2
- Model Number:SC200/200
- Brand Name:XZJJ
- Place of Origin:Xuzhou Jiangsu China
- Certification:ISO9001
Specifications
- Weight:14500.000kg
- Condition:New
- Moving Type:Other
- fully intelligent control:without a cauffeur
- frequency converting controrl:0-40m/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Xuzhou WORLDO Machinery Technology Co.Ltd.was a branch Company of XCMG Group,the former is the branch of construction machinery form Xuzhou Construction Machinery Co .,Ltd.IT is specialized in the R&D,manufacturing,installation and maintenance of building hoist sand various construction machinery applicable tools.
Since 1995,it started production of SC(D)200/200 building hoist ,after twenty years of concentrated training ,currently the building hoists include load capacity is from 1 ton to 3.2TONS,speed is from low to middle high ,driving form is from the traditional worm gear drive to gear drive control system is from ordinary AC contractor control to transducer control etc.The brand “XZJJ” win a widely reputation at home and abroad.

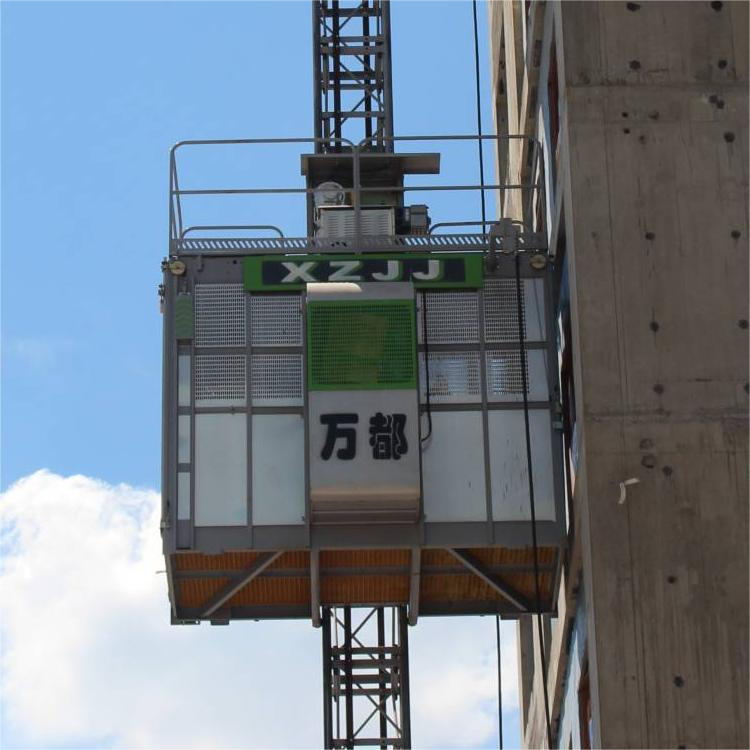

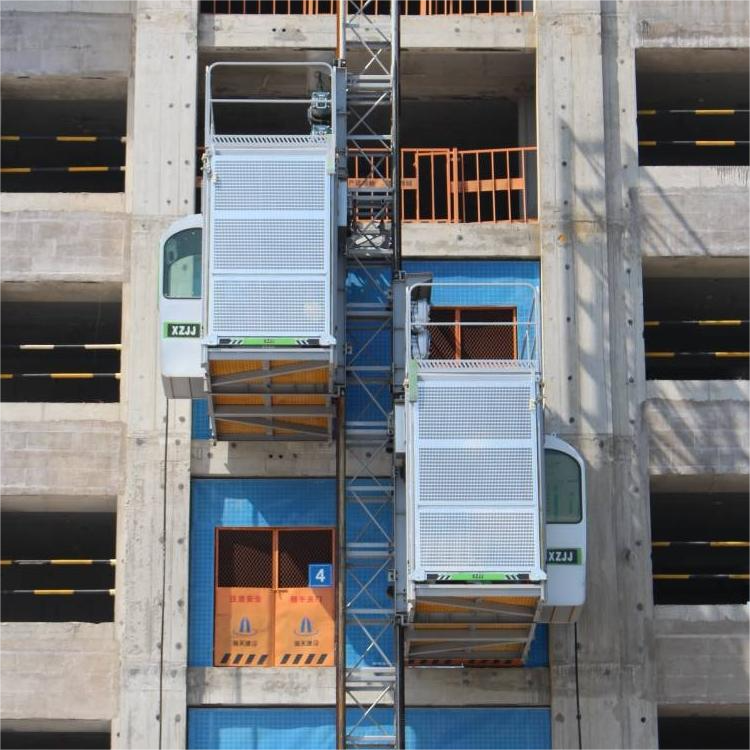

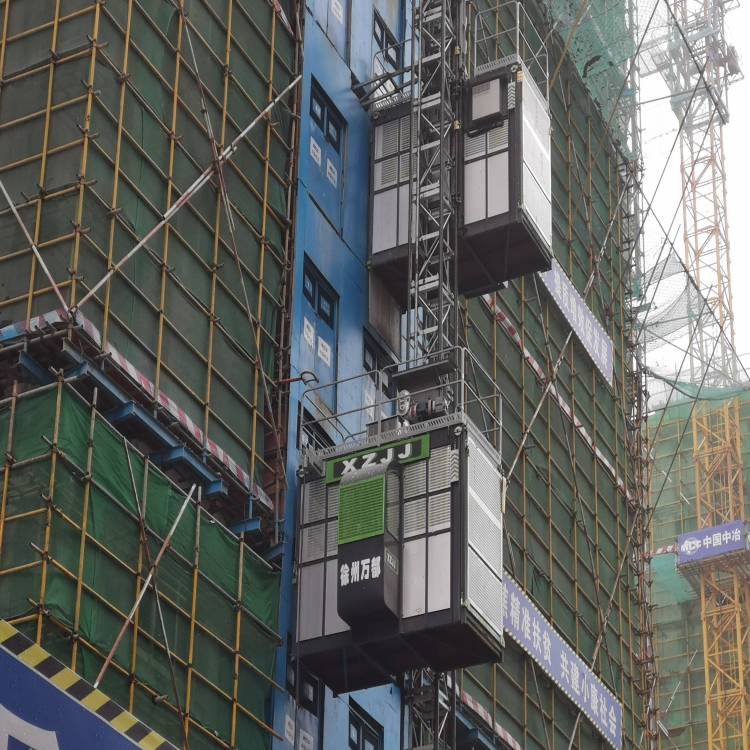

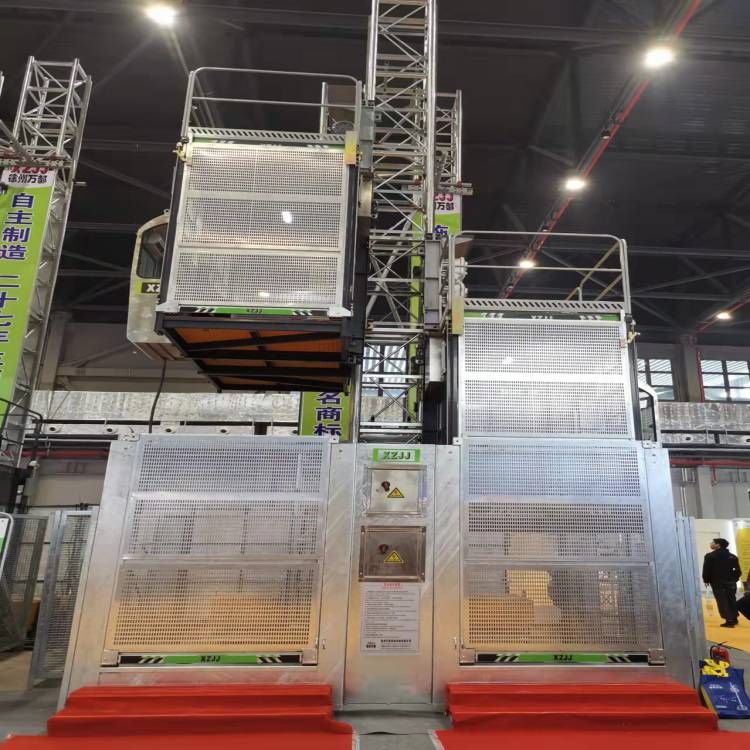

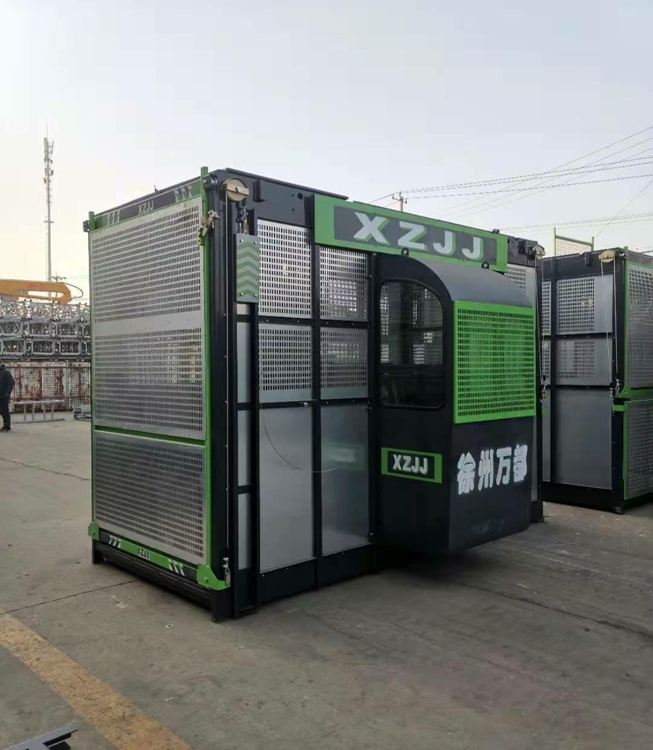

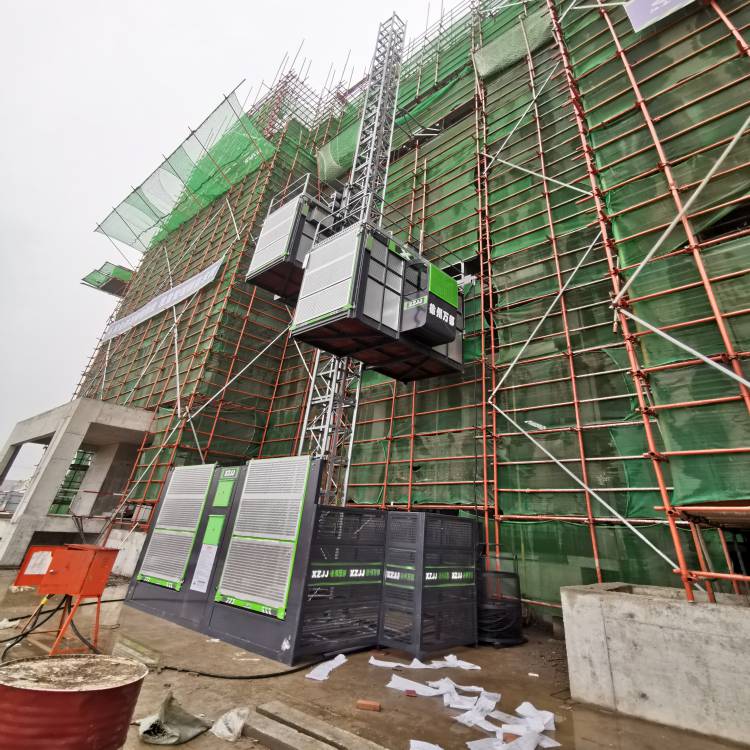

The SC200/200 construction hoist the new-generation product designed with advanced technology from domestic and abroad introduced to our company .Compared with traditional construction hoist,the new generation SC200/200 is more comfortable ,safe reliable and convenient for dismantling and maintenance with more reasonable and compact structure ,strong and double cage,attractive appearance and delicate parts.

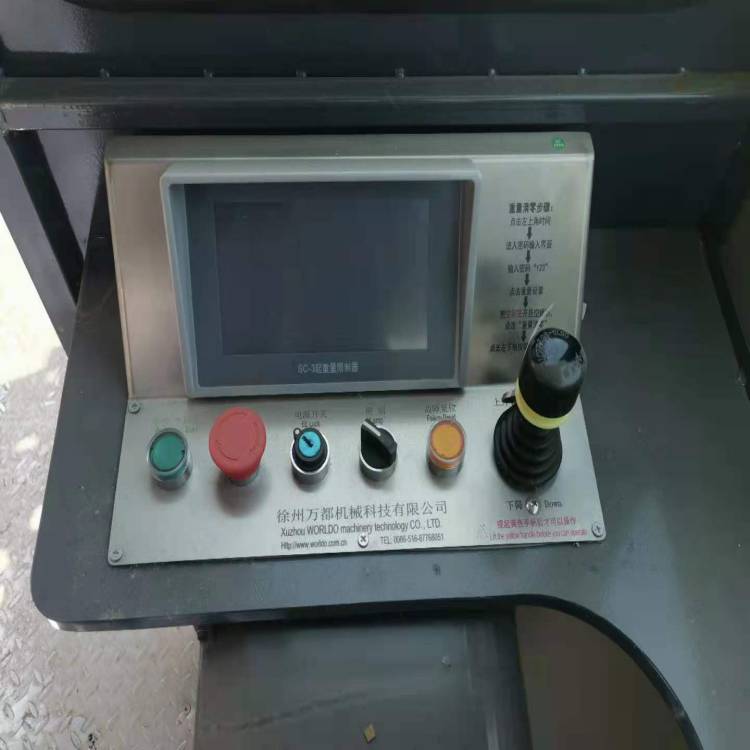

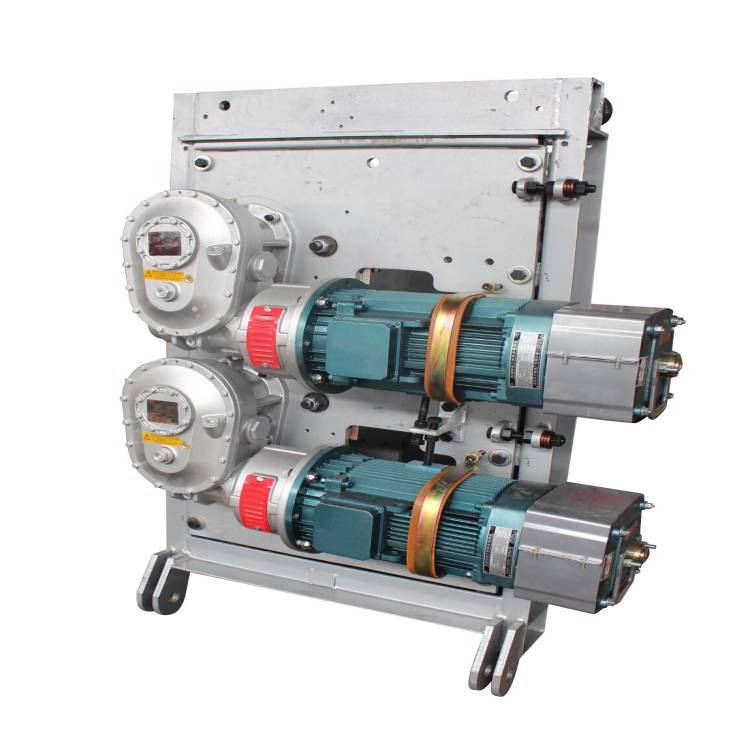

There are many types of drive mechanisms include three-motors ,two motors and energy saving new type etc.The transmission plate is fitted at top of cage to avoid any header accident and provide a comfortable cage for passengers.Floor calling system,over load limiter,volt displayer are integrated on control panel for convenient operation.Many patent technologies such as anti-derail technology are used on each guide wheels to ensure safe running.
| No | Items | Unit | Parameter | Remarks |
| 1 | Rated load | kg | 2*2000 | |
| 2 | Rated lifting speed | m/min | 33 | |
| 3 | Maximum lifting height | m | 250 | |
| 4 | Motor power | KW | 15*2*2 | |
| 5 | Rated current | A | 72*2 | |
| 6 | Inverter power | Kw | / | |
| 7 | Security Anti-dropping Model | SAJ4.0-1.2 | ||
| 8 | Voltag of power supply | V/Hz | 380/50 | |
| 9 | Power capacity | KVA | 120 | |
| 10 | The size of the stabdard section | mm | 650*650*1508 | |
| 11 | The hoists space(L*W*H) | mm | 3200*1500*2500 |
