XZJJ factory construction hoist SC100 1ton double cages
Summary
- Loder Weight:1000kg
- Dimension(L*W*H):3000*1500*2200mm
- Max Lifting Height:100m
- Hoisting Speed:0-28m/min
- Rated Loading Capacity(kg):1000kg
- Model Number:SC100/100
- Brand Name:XZJJ
- Place of Origin:Xuzhou Jiangsu
- Certification:CE/ISO
Specifications
- Weight:14320.000kg
- Condition:New
- Moving Type:Other
- fully intelligent control:without a cauffeur
- frequency converting controrl:0-28m/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
SC100/100（M）type freight construction hoist ,base on the technology of both freight and person dual-purpose SC series construction elevator .combining the characteristics of low rise buildings,absorb the current domestic and foreign advanced technology design and development of a new generation of freight elevator construction freight lifts,reasonable structure,safe,easy disassembly and maintenance ,attractive appearance ,long service life.

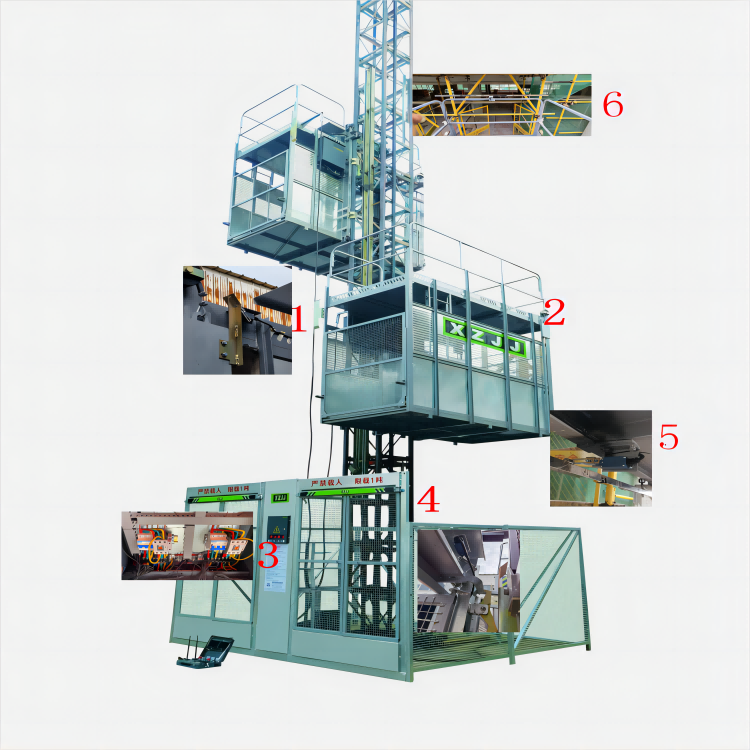

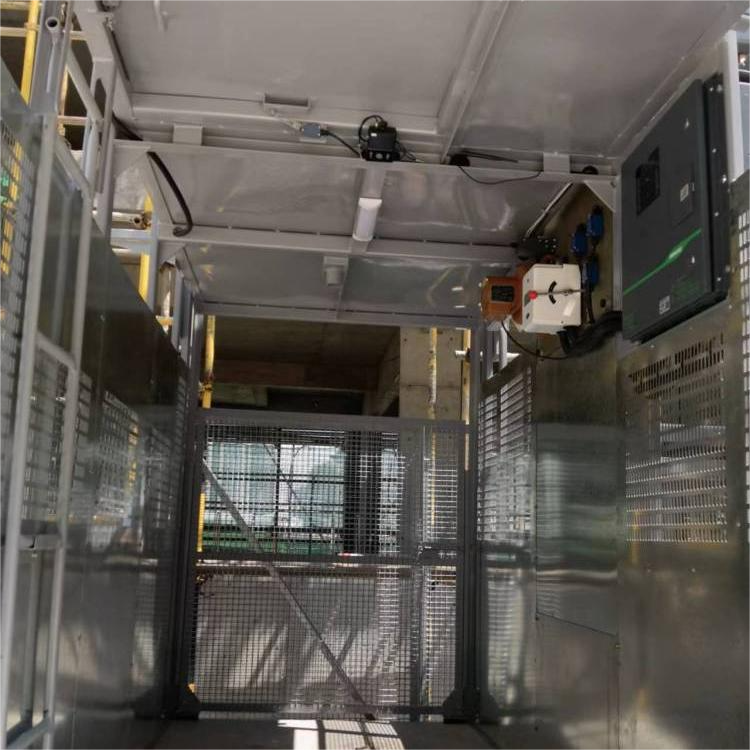

This products use single-motor rack and pinion ,the transmission mechanism placed inside the cage ,the anti-fall safety device ,overload protection ,limit switches,etc.set in the drive plate ,cage installation of cameras,equipped with a monitor display screen special operation Taiwan set up in the cage ,remote operation via cable .Its main components rail brackets and rack attached to the wall with the SC series construction hoist common people and goods.
The product is suitable for the building construction which lower than the height of 40 meters to vertical transport of freight.
|
Technical data |
Unit |
Value |
|
SC100/100 |
||
|
Rated load |
kg |
2*1000 |
|
Maximum lifting height |
m |
250 |
|
Lifting speed |
M/min |
0-28 |
|
Jid attachment rated load |
kg |
250 |
|
Rated output |
kw |
2*13 |
|
Rated current |
A |
27*2 |
|
Inverter power |
kw |
/ |
|
Security anti-dropping model |
/ |
SAJ3.0-1.2 |
|
Voltage of power supply |
V/Hz |
380/50 |
|
Power capacity |
KVA |
30 |
|
Mast section |
mm |
650*650*1508 |
|
The hoist space |
mm |
3000*1500*2200 |
