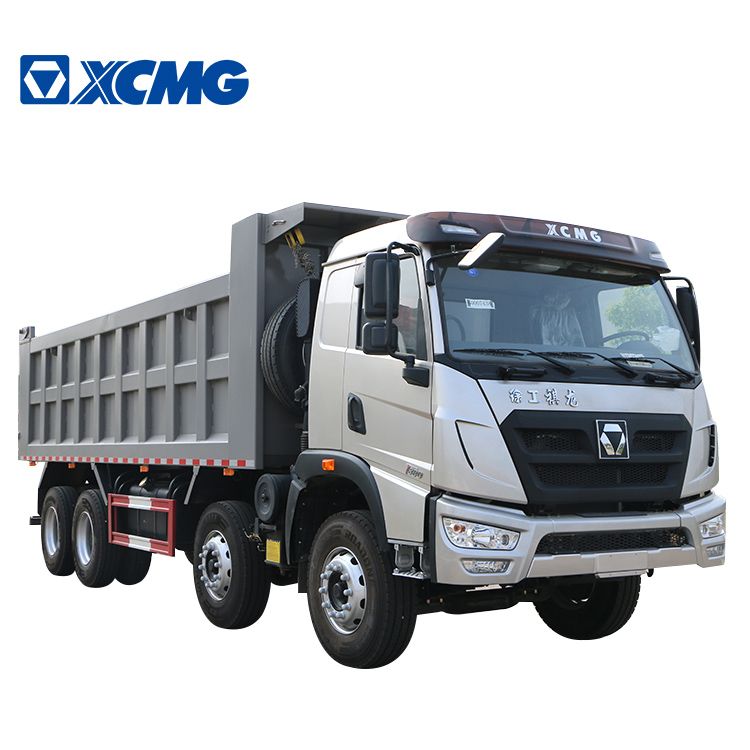

XCMG Official 20 ton Dump Truck New Dump Truck 8*4 XGA3310D2KE Dump Truck Tipper For Sale
![](/app/topc/statics/images/close.png)
![XCMG Official 20 ton Dump Truck New Dump Truck 8*4 XGA3310D2KE Dump Truck Tipper For Sale](/images/store/357636/item/XGA3310D2KE (3).jpg)
![](/app/topc/statics/images/close.png)
Specifications
- weight:18316.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 20 ton Dump Truck New Dump Truck 8*4
XGA3310D2KE Dump Truck Tipper.
Advantages and Highlights:
1. Comfortable Driving, Pleasant Enjoyment
*
Symmetrical, refined, excellent and ergonomic design, facilitates your driving
operation; covering fttings adopt leather package, strong light absorption, no
high-light points, reduce visual fatigue.
*
Multi-functional configuration, large storage space; strictly control the gap
and chromatism, meticulous work; silkstocking airbag seats.
2. Maximum Supporting capacity and practicability
*
Golden power assembly-For the economic and reliabilit, reliable brands engine,
Fast gearbox, Steyr axles are adopted for our manufacturing. The range of power
output are from 280hp to 420hp to achieve multi-working-condition.
*
Modular designed chassis, neat arrangement highly universalizable. Meanwhile,
the reliability and convenience of maintenance have been improved.
*
HANVAN is the industry leader of Chinese heavy- -duty truck market, we provide
standard model, composite model, heavy model, super -duty model for your
personal needs.
* The key part have
been optimized by CAE and passed relative quality test, the reliability of
vehicle can be guaranteed.
Vehicle Model |
XGA3310D2KE |
||
Mass parameter |
Curb weight |
18316kg |
|
GVW |
65000kg |
||
Performances |
Max Speed |
79km/h |
|
Min. turning
diameter |
26.7m |
||
Grade ability(≥) |
20% |
||
Hill-hold
ability(≥) |
20% |
||
Fuel Tank |
400L |
||
Dimensions |
Overall dimensions |
Length |
10855mm |
Width |
2550mm |
||
Height |
3450mm |
||
Wheelbase |
2100+4000+1350mm |
||
Wheel tread |
Front |
2059mm |
|
Rear |
1864mm |
||
Min. Clearance |
280mm |
||
Approach angle |
25° |
||
Departure angle |
20° |
||
Front overhang |
1485mm |
||
Rear overhang |
1920mm |
||
Cargo size |
7800×2300×1500mm |
||
Cab |
Model |
T-series |
|
Passengers |
2 |
||
Engine |
Model |
WD615.47 |
|
Displacement |
9.726L |
||
Output power |
273kW |
||
Mix torque speed |
1500N·m |
||
Clutch |
Model |
Φ430 Pull type
diaphragm spring clutch |
|
Operation |
Hydraulic manual |
||
Transmission |
Model |
9JSD150A |
|
Operation |
Flexible shaft |
||
Forward ratio |
12.57-1.00 |
||
Reverse ratio |
13.14 |
||
Driven axle |
Model |
16T |
|
Ratio |
5.73 |
||
Brake type |
Drum type |
||
Differential lock |
Differential lock
between axles and wheels |
||
Front axle |
Capacity |
7.5t |
|
Brake type |
Drum type |
||
Wheel |
Rim |
9.75×22.5/8.50V-20 |
|
Tire |
13R22.5-18PR/12.00R20-18PR |
||
Frame |
Type |
Widened front and
narrow rear |
|
Main beam |
320×90×8mm |
||
Auxiliary beam |
304×80×8mm |
||
Width of chassis
structure |
Front 940mm;Rear 850mm |
||
Suspension |
Front |
Type |
Multi-spring |
Amount of spring
plate |
10 |
||
Rear |
Type |
Multi-spring |
|
Amount of spring
plate |
13 |
||
Steering System |
Steering type |
Φ120/ Circulating ball
type hydraulic power |
|
Ratio |
23.27 |
||
Max pressure of
pump |
15MPa |
||
Brake System |
Rated working
pressure |
1MPa |
|
Driving brake |
Dual circuit
pneumatic braking |
||
Parking brake |
Spring energy
storage air brake |
||
Assistant brake |
Engine exhaust
brake |
||
Electric System |
Voltage |
24V |
|
Generator power |
2.2kw |
||
Battery voltage and
Capacitance |
2×12V/165Ah |
