XCMG official manufacturer 16m china electric scissor lift equipment XG1612DC factory price for sale
Summary
- Weight:3350kg
- Overall Dimension:2840*1250*2600mm
- Table Size:2640*1120*1263mm
- Max Lifting Height:15.7m
- Rated Loading Capacity:230
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG1612DC
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO
Specifications
- Weight:3350.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

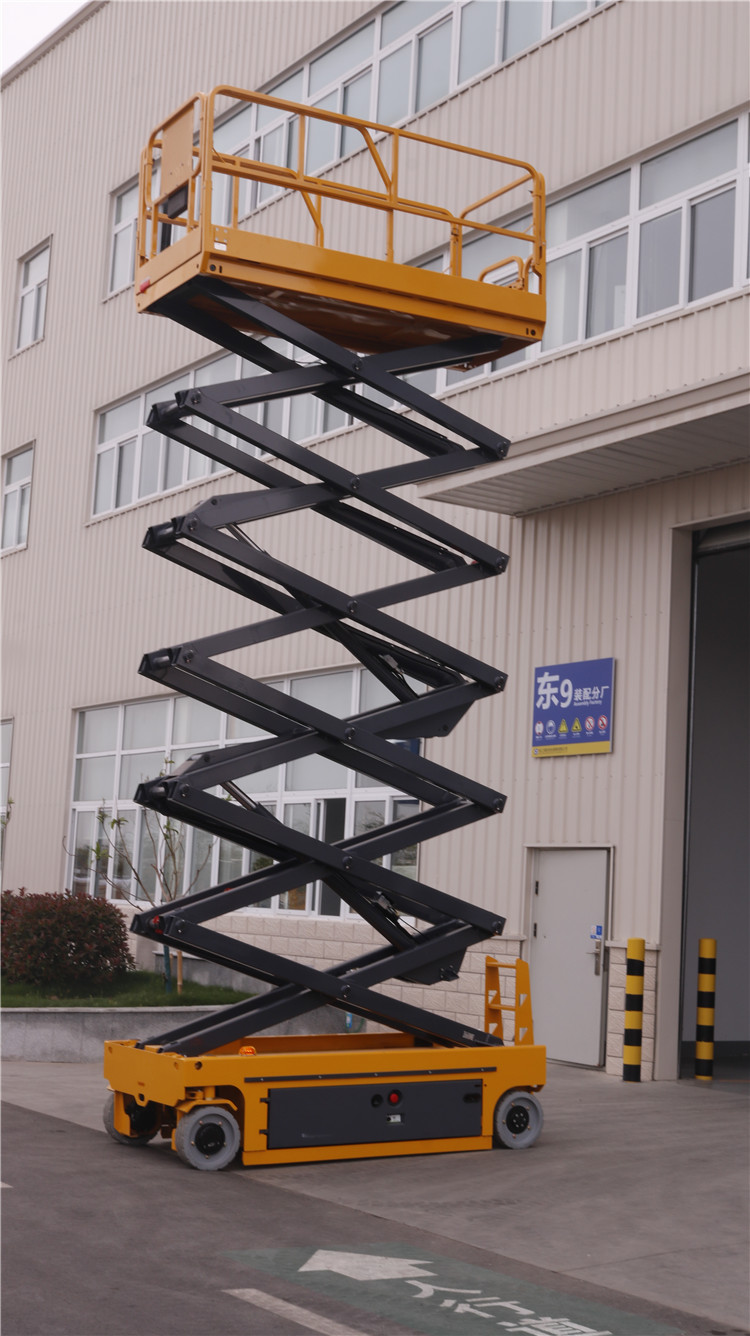

16m china electric scissor lift equipment XG1612DC.
New aerial work platform developed by XCMG has the work
height at 15.7m, the vehicle width at 1.25m, the rated load at 230kg, max.
gradeability at 25%. This vehicle features compact structure, advanced
performance, completed safety devices, specially suitable for construction. In
addition. It is free of any pollution, with steady lifting / lowering, easy
control and maintenance. Therefore, this kind of platforms are widely applied
to warehouses, factories, airports, and train stations.
Advantages and features:
* Effective and energy-saving electric-drive system
features zero emission and low noise, together with the traceless tires,
enabling this machine easily to work in enclosed environments such as office
building, hospitals and schools and minimizing the effect on environment.
* Active protective mechanism such as pothole protective
mechanism and the self-developed safety control system feature the humanized
design and the rich options, meeting the customer needing for safety,
reliability and intelligence.
* Work platform is able to extend out, enlarging the work
space, together with the foldable fence making the transportation easier.
* “Zero Turning Radius” is unique and enable machine to
corner in narrow room.
* Max. payload at 230kg, leading the industry.
* Maximum traveling speed 4km/h and 25% gradeability make
the driving easier.
|
Item |
Unit |
Parameters |
|
Dimensions Length (without ladder) |
mm |
2840（2630） |
|
Dimensions width |
mm |
1250 |
|
Dimensions Height (platform folded) |
mm |
2600(2060) |
|
Wheel base |
mm |
2240 |
|
Wheel track |
mm |
1123 |
|
Min. Ground clearance (pit protector lifting / decline) |
mm |
100/20 |
|
Platform dimensions Length |
mm |
2640 |
|
Platform dimensions Width |
mm |
1120 |
|
Platform dimensions Height |
mm |
1263 |
|
Platform dimensions Platform extension length |
mm |
900 |
|
Vehicle center of mass position Horizonal distance from front axis |
mm |
1127 |
|
Vehicle center of mass position Height of center of mass |
mm |
720 |
|
Total weight |
kg |
3350 |
|
Max. Platform height |
m |
13.7 |
|
Min. Platform height |
m |
1.478 |
|
Max. Working height |
m |
15.7 |
|
Min. Turning radius (inner wheel / outer wheel) |
m |
0/2.65 |
|
Platform rated load |
kg |
230 |
|
Extension platform rated load |
kg |
115 |
|
Platform lifting time |
s |
65-82 |
|
Platform decline tine |
s |
61-80 |
|
Max. Walking speed (low position) |
km/h |
4.0 |
|
Max. Walking speed (high position) |
km/h |
0.8 |
|
Max. gradeability |
% |
25 |
|
Tilt warning angle（side / forward and backward） |
° |
1.5/3 |
|
Lifting /walking motor Model |
— |
— |
|
Lifting /walking motor Rated power |
kW |
4.5/0.75 |
|
Lifting /walking motor Manufacturer |
— |
— |
|
Battery Model |
— |
T1275/6-EV-100 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
300 |
|
Battery Manufacturer |
— |
Trojan/Leoch |
|
Tire model |
— |
Non- trace solid /381×127 |
