Summary
- Certification: CE/ISO9001
- Dimension(L*W*H):5623*1884*2606mm
- Weight:5035kg
- Power(W):82kw
- Model Number:HBT5008K
- Brand Name:XCMG
- Place of Origin: Jiangsu, China
- Power Type: Diesel
Specifications
- Weight:5035.000kg
- Condition:New
- Moving Type:Other
- Productivity:50M3/H
- Hopper capacity/filling feight:0.6m3/1370mm
- Concrete slump range :80-230mm
- Pressure of hydraulic system:32Mpa
- Rated working flow:224L/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

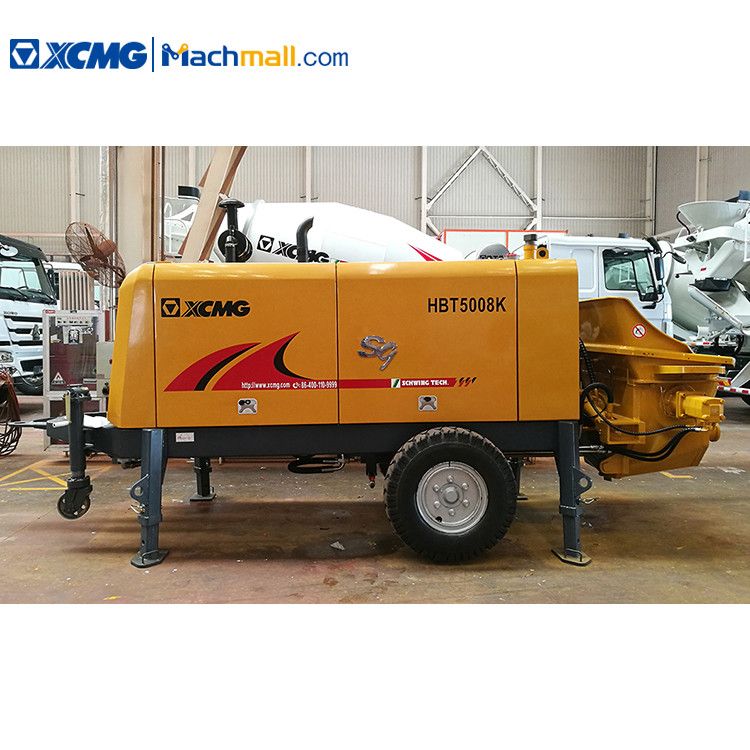

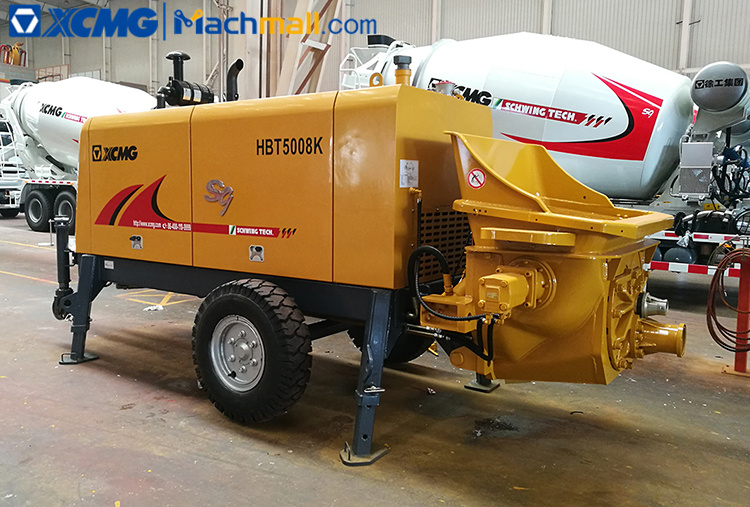

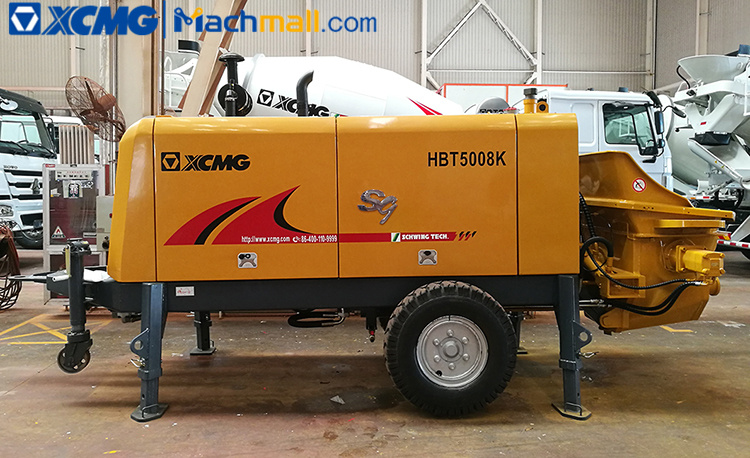

China XCMG trailer mounted concrete pump HBT5008K 82kw construction machine.

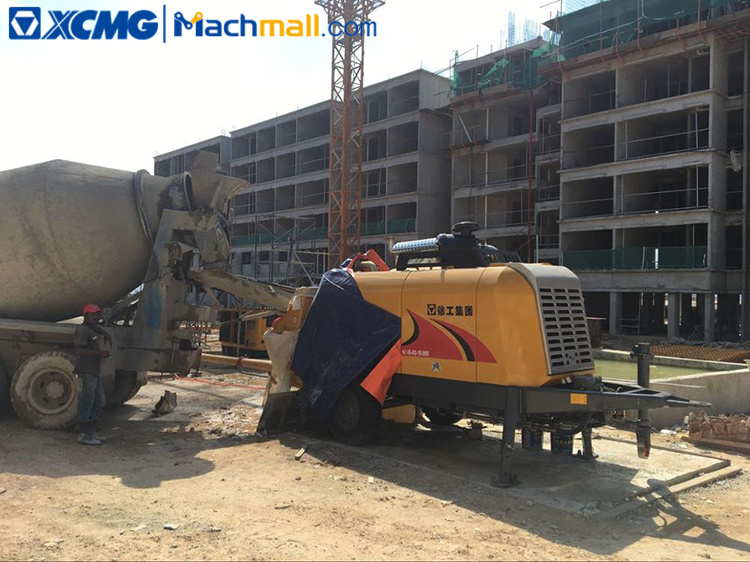

China XCMG trailer mounted concrete pump HBT5008K 82kw construction machine combines the production of ready-mixed concrete with pumping construction and uses coagulation. The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete. It is used for conveying concrete in large concrete projects.
China XCMG trailer mounted concrete pump HBT5008K 82kw construction machine is a construction equipment which conveys concrete by pressure through pipeline.
Technical Characteristics:
1.China XCMG trailer mounted concrete pump HBT5008K 82kw construction machine is used for conveying concrete in large concrete projects.
2.China XCMG trailer mounted concrete pump HBT5008K 82kw construction machine can continuously complete horizontal and vertical conveyance of concrete along pipeline.
3.The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.
|
item |
parameters |
unit |
|
Shape size |
5623×1884×2606 |
mm |
|
Whole machine quality |
5035 |
kg |
|
Concrete conveying capacity |
50 |
m3/h |
|
Maximum output pressure |
8 |
Mpa |
|
Conveying distance (vertical / horizontal) |
100/400 |
m |
|
Hopper volume / feeding height |
0.6/1320 |
m3/mm |
|
Concrete slump |
80-230 |
mm |
|
Concrete delivery bore diameter / stroke |
180/1400 |
mm |
|
Active engine-diesel engine |
|
|
|
Model |
WP4G110E220 |
|
|
|
|
|
|
Rated power |
82 |
kw |
|
Rated speed |
2200 |
r/min |
|
Hydraulic system |
|
|
|
type |
open |
|
|
|
|
|
|
Hydraulic system pressure |
32 |
Mpa |
|
Main oil pump |
|
|
|
Model type |
A11VLO130 |
|
|
|
|
|
|
Rated working flow |
224 |
L/min |
|
Pump cylinder diameter / stroke |
90/1400 |
mm |
|
Hydraulic tank volume |
250 |
L |
